Product Overview Rextron VGA Extenders have a built in noise suppression circuit, which eliminates signal loss for superb SVGA quality. They can be used with unshielded twisted pair (UTP) CAT5E cable, so provide a cost effective way to extend your Video by using CAT5E.

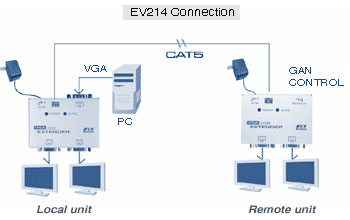

The “VGA CAT5 Extender” pair enables you to transmit VGA signals up to 150M (500 ft.) away with resolution up to 1024 x 768. Featuring common mode noise suppression circuit for superb VGA quality via inexpensive unshielded twisted pair CAT5 cables. The Local unit duplicates the input signal for local use and transmits the VGA signal to a Remote unit. Upon receiving the VGA signal via a CAT5 connector, the Remote unit broadcasts the signal to two VGA outputs. A convenient Gain (equalization) control selector on the Remote unit is designed for optimum signal clarity according to the length of the CAT5 cable.

Both pairs are ideal for public broadcasting, exhibits, retail stores, courtrooms, stock tickers, bus station and many more applications.

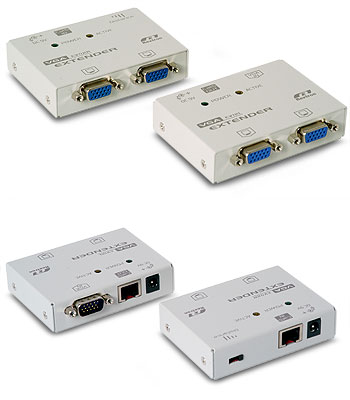

The Local Unit
Duplicates the input signal for local use (2 monitors) and transmits the SVGA signal to a Remote Unit, when the signal is received by the Remote Unit, via CAT5E connector the Remote Unit broadcasts the signal to two SVGA outputs.

The Remote Unit
A convenient Gain (equalisation) control selector on the Remote Unit is designed for optimum signal clarity according to the length of the CAT5E cable used.
Features • Supports SVGA (KVM-VGAXT)
• Supports a maximum distance of 150 Mtrs
• SVGA resolution up to 1024x768
• Ultra Compact
• Compatible with CAT5, CAT5E and CAT 6 UTP Cables
• LED Power and Activity indicators
• Gain control on Remote Unit
• Local and Remote units support two VGA outputs. (KVM-VGAXT)
• Extend VGA and audio signals for up to 150M
• Use CAT5 cables for easy installation
• Local unit supports two VGA
• Remote unit supports two VGA
• For broadcast, demo and exhibit
• Automatical power-save when VGA input is lost

Technical Specifications
• EV12L (Local Unit for VGA source)
• EV02R (Remote Unit for VGA extension)
RJ-45, CAT5 connector
• Extension output for VGA (EV12L)
• Extension input for VGA (EV02R)
Cable between units
• CAT5, CAT5e and CAT6
Max. distance
• 150 meters*
VGA input port
• HDB15 (female) x 1 (EV12L)
• N/A (EV02R)
VGA output port
• HDB15 (female) x 2
Equalizer selector
• N/A (EV12L)
• 4-position slide switch (EV02R)
Status indicator
• Power (green) x 1, Active (yellow) x 1
Operating voltage
• 9V DC, 600mA
