Rextron VGA and Audio Extender Kit (Using CAT5e Cable Use a Monitor upto 150Meters Away inc Audio!)

Rextron VGA and Audio Extender Kit (Using CAT5e Cable Use a Monitor upto 150Meters Away inc Audio!)

Scan code: LN19791 Manufacturer code: KVM-VGAXTAD Request call
£84.98Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Rextron VGA Extenders have a built in noise suppression circuit, which eliminates signal loss for superb SVGA quality. Because they are can be used with unshielded twisted pair (UTP) CAT5E cable, they provide a cost effective way to extend your Video and Audio signals by using CAT5E. It works by taking the left and right audio channels (3.5mm Stereo Jack - Jack cable, not supplied) and combining them to form a mono signal before transmitting to the remote unit via CAT5E cable. Therefore, the left channel and the right channel audio signals at the remote unit are the same.

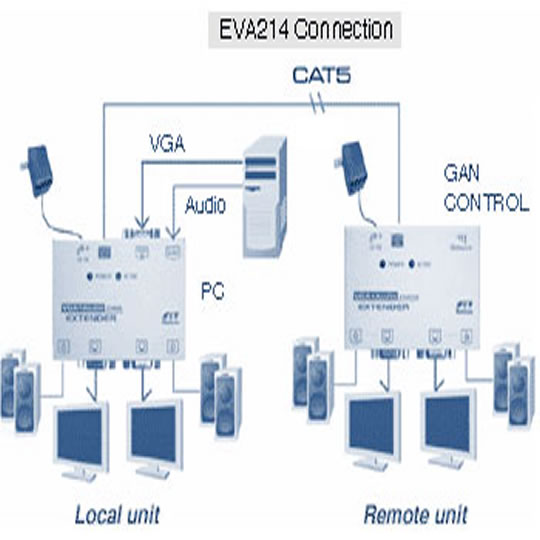

The “VGA CAT5 Extender” pair enables you to transmit VGA signals up to 150M (500 ft.) away with resolution up to 1024 x 768. Featuring common mode noise suppression circuit for superb VGA quality via inexpensive unshielded twisted pair CAT5 cables. The Local unit duplicates the input signal for local use and transmits the VGA signal to a Remote unit. Upon receiving the VGA signal via a CAT5 connector, the Remote unit broadcasts the signal to two VGA outputs. A convenient Gain (equalization) control selector on the Remote unit is designed for optimum signal clarity according to the length of the CAT5 cable. EVA214 always has audi function.

Both pairs are ideal for public broadcasting, exhibits, retail stores, courtrooms, stock tickers, bus station and many more applications.

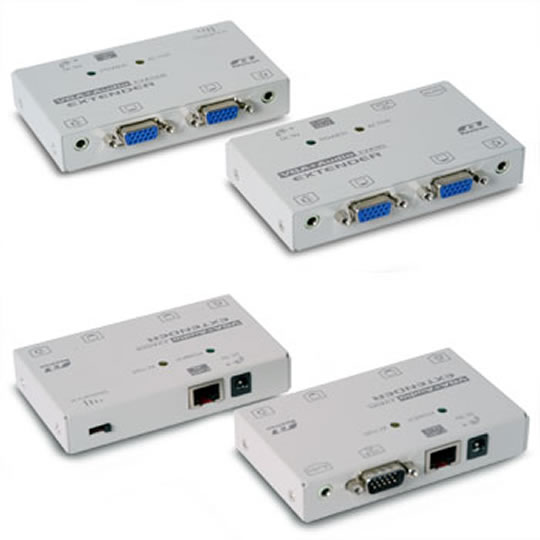

The Local Unit
Duplicates the input signal for local use (2 monitors) and transmits the SVGA signal to a Remote Unit, when the signal is received by the Remote Unit, via CAT5E connector the Remote Unit broadcasts the signal to two SVGA outputs.

The Remote Unit
A convenient Gain (equalisation) control selector on the Remote Unit is designed for optimum signal clarity according to the length of the CAT5E cable used.
Features • Supports SVGA and Audio
• Supports a maximum distance of 150 Mtrs
• SVGA resolution up to 1024x768
• Ultra Compact
• Compatible with CAT5, CAT5E and CAT 6 UTP Cables
• LED Power and Activity indicators
• Gain control on Remote Unit
• Extend VGA and audio signals for up to 150M
• Use CAT5 cables for easy installation
• Local unit supports two VGA and two audio outputs
• Remote unit supports two VGA and two audio outputs
• For broadcast, demo and exhibit
• Automatical power-save when VGA input is lost
• Local and Remote units support two VGA and two audio outputs.

Technical Specifications
• EV12L (Local Unit for VGA + Audio source)
• EVA02R (Remote Unit for VGA extension)
RJ-45, CAT5 connector
• Extension output for VGA + Audio(EV12L)
• Extension input for VGA + Audio (EVA02R)
Cable between units
• CAT5, CAT5e and CAT6
Max. distance
• 150 meters*
VGA input port
• HDB15 (female) x 1 (EV12L)
• N/A (EVA02R)
Audio input port
• Stereo jack (female) x 1 (EVA12L)
• N/A (EVA02R)
VGA output port
• HDB15 (female) x 2
Audio output port
• Stereo jack (female) x 2 (EVA12L)
• Mono jack (female) x 2 (EVA02R)
Equalizer selector
• N/A (EV12L)
• 4-position slide switch (EV02R)
Status indicator
• Power (green) x 1, Active (yellow) x 1
Operating voltage
• 9V DC, 600mA


Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
