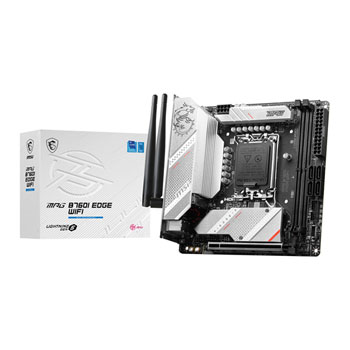

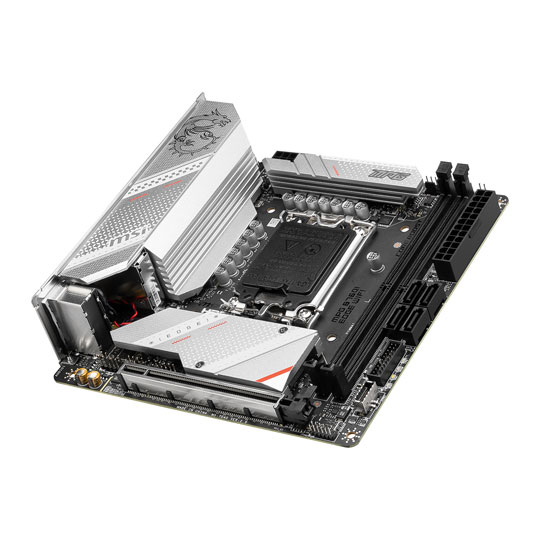

MSI Intel MPG B760I EDGE WIFI Mini-ITX Refurbished Motherboard

Refurbished MSI MPG B760I EDGE WIFI, Intel B760 LGA1700, DDR5, SATA3, PCIe 5.0, 2x M.2, 2.5GbE, WiFi 6E, Mini-ITX

Thumbnail 1 : MSI Intel MPG B760I EDGE WIFI Mini-ITX Refurbished Motherboard Thumbnail 2 : MSI Intel MPG B760I EDGE WIFI Mini-ITX Refurbished Motherboard Thumbnail 3 : MSI Intel MPG B760I EDGE WIFI Mini-ITX Refurbished Motherboard Thumbnail 4 : MSI Intel MPG B760I EDGE WIFI Mini-ITX Refurbished Motherboard
Scan code: LN142890 Manufacturer code: MPG B760I EDGE WIFI
Order in the next 57 mins and get it tomorrow (upgrade to Sunday delivery at checkout)
Was: £199.99
£189.98
Get it Tomorrow, 03 MarIn stock
From £17.22 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £17.22
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £189.98
Total inc. interest: £206.53
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 4th Mar to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Perform In Style

The MPG B760I EDGE WIFI is a gaming oriented Mini-ITX motherboard constructed around the latest Intel B760 chipset that delivers both performance and style.


Supports Intel Core 12th & 13th Gen Processors

The MPG B760I EDGE WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.


Direct 8+1+1 phase VRM power With 90A DrMOS

With its exclusive Core Boost technology, the MPG B760I EDGE WIFI is able to sustain heavy CPU power loads to support system-demanding game settings.


VRM Cooling

Features an extended heatsink and 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation.


PCB Cooling

Premium 8-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.


SSD Cooling

M.2 Shield Frozr prevents thermal throttling.


System Cooling

Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.


Fortified PCIe 5.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.


Memory Boost

A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.


Memory OC Profiles

In MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.


Gen4 M.2 Connectors

The MPG B760I EDGE WIFI motherboard features 2 x Gen4 x4 64Gbps slots.


M.2 Shield Frozr

Even the world's fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.


2.5G LAN

A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.


Wi-Fi 6E

Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.


USB 3.2 Gen 2 Type-C

Connect to devices and transfer files at high bandwidth rates: 10Gbps.


HD Audio

7.1-Channel High Definition Audio with Audio Boost.

Features


• Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket.
• Supports DDR5 Memory, up to 7200+(OC) MHz.
• Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2.
• Enhanced Power Design: Direct 8+1+1 phases power, Core Boost, Memory Boost.
• Premium Thermal Solution: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.
• 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience.
• High Quality PCB: 8-layer PCB made by server grade level material.
• Pre-installed I/O Shield: Better EMI protection and more convenience for installation.

Specifications
Core Specifications
Edition MAG B760I EDGE WIFI
Form Factor Mini-ITX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 5333(0C)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
Max. Memory Capacity
Audio
Audio 8-Channel(7.1) HD Audio with Audio Boost
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen4x4/SATA3
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x System Fan header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.2
  • 1 x Realtek RTL8125BG

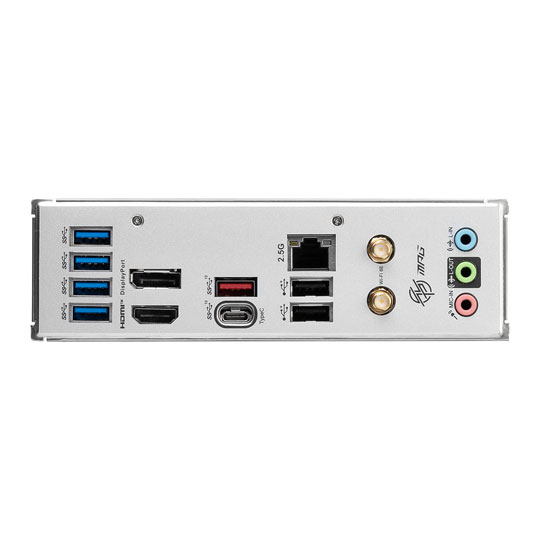

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Headphone-Out
  • 1 x Line In
  • 1 x Mic-In
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
Note
Additional Information
Scan Code LN142890
Model Number MPG B760I EDGE WIFI
GTIN 4711377069632
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
