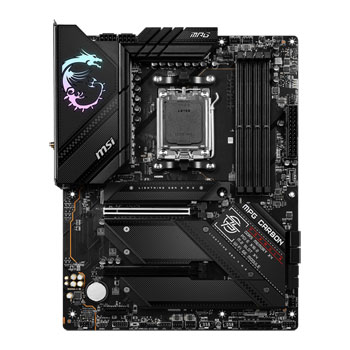

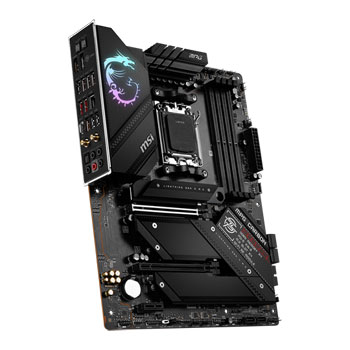

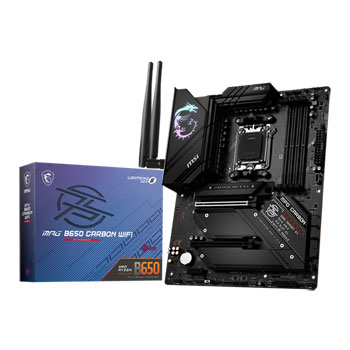

MSI AMD B650 CARBON WIFI ATX Refurbished Motherboard

Refurbished MSI MPG B650 CARBON WIFI, AMD B650, S AM5, DDR5, SATA3, PCIe 4.0, 4x M.2, 2.5GbE, AMD EXPO™, ATX

MORE INFO
MORE INFO
Thumbnail 1 : MSI AMD B650 CARBON WIFI ATX Refurbished Motherboard Thumbnail 2 : MSI AMD B650 CARBON WIFI ATX Refurbished Motherboard Thumbnail 3 : MSI AMD B650 CARBON WIFI ATX Refurbished Motherboard Thumbnail 4 : MSI AMD B650 CARBON WIFI ATX Refurbished Motherboard
Scan code: LN135239 Manufacturer code: MPG B650 CARBON WIFI
Call for price
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Perform in Style

The MPG B650 CARBON WIFI is a gaming oriented ATX motherboard constructed around the latest AMD B650 chipset that delivers both performance and style.


Supports AMD Ryzen 7000 Processors

The MPG B650 CARBON WIFI motherboard supports AMD Ryzen 7000 processors.


16+2+1 Duet Rail Power System with 80A Smart Power Stage

With exclusive Core Boost technology, the MPG B650 CARBON WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings.


Fortified PCI-e 4.0 x16 Slots

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.


Gen5 M.2 Connectors

The MPG B650 CARBON WIFI motherboard features MSI's latest M.2 slots.


M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

Features

• Premium Thermal Design.
• Latest DDR5 Memory.
• Lightning Gen 5 Solution.
• M.2 Shield FROZR.
• Wi-Fi 6E.
• 2.5G Network Solution.
• Lightning USB 20G.
• Audio Boost 5.
• Memory Boost.

Specifications
Core Specifications
Edition MPG B650 CARBON WIFI
Form Factor ATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600+(OC)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-60/80, PCIe Gen4x4/SATA
  • 1 x M.2, 22-60/80, PCIe Gen5x4
  • 1 x M.2, 22-60/80/110 PCIe Gen 4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 6 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x LED connector
  • 5 x System Fan header
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x 802.11ax WiFi 6E + BT5.2

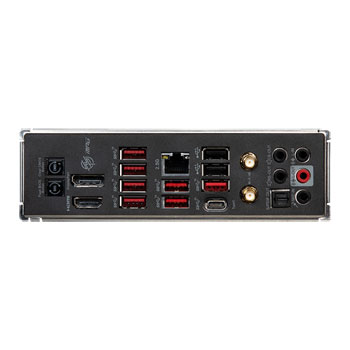

Rear I/O Connectors
  • 1 x Central Speaker Out
  • 1 x Clear CMOS Button
  • 1 x DisplayPort 1.4
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 7 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi / Bluetooth Module
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 243.84 x 304.8 mm
Note
Additional Information
Scan Code LN135239
Model Number MPG B650 CARBON WIFI
GTIN 4711377010184
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
