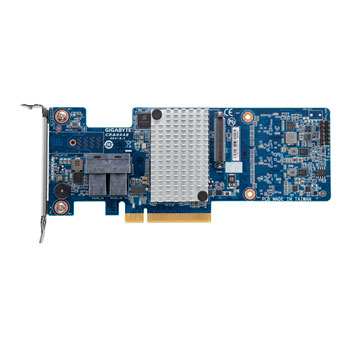

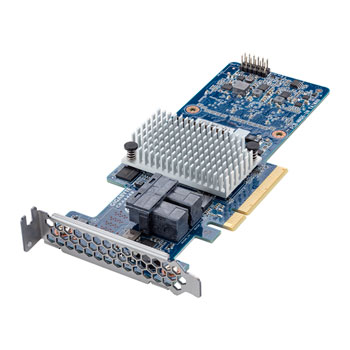

Gigabyte CRA4448 2-Port Mini SAS HD Refurbished PCIe RAID Card

Refurbished Gigabyte CRA4448 12Gb/s SAS RAID Card, PCIe 3.0 x8, 2x Mini SAS HD SFF8643 up to 8xSAS 12Gb/s Ports

Thumbnail 1 : Gigabyte CRA4448 2-Port Mini SAS HD Refurbished PCIe RAID Card Thumbnail 2 : Gigabyte CRA4448 2-Port Mini SAS HD Refurbished PCIe RAID Card
Scan code: LN135372 Manufacturer code: 9CRA4448NR-00
End Of Life This product is no longer available to purchase
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Gigabyte RAID & SAS Adapter Solution

Ensure your critical data is protected, Based on Broadcom’s reliable and trusted SAS 3108 / 3008 controllers, GIGABYTE’s RAID & SAS Adapter solutions can address a variety of different direct-attached storage (DAS) environments – SATA or SAS, hard disk drives (HDDs) or solid state drives (SSDs), server-based storage or external direct-attached JBODs and storage enclosures.


2GB Onboard DDR3 Memory for Write-Back Cache

This RAID add-on card features 2GB of onboard DDR3 cache memory to support write-back RAID caching. RAID caching is an excellent and cost-effective way to improve I/O performance by writing data to a controller’s cache before it is written to disk. Write-back cache improves application performance by storing write data to high performance cache memory during periods of heavy use. Where there is a break in user requests, the data is written from the cache memory to the storage array.


Features


• x8 PCI Express 3.0 to 8-Port 12 Gb/s SAS + SATA interface
• Broadcom SAS 3108 PowerPC 476 Controller @ 1.2GHz
• Connect up to physical 32 drives via SAS expander in RAID mode with eight internal 12Gb/s SATA and SAS ports
• Supports high-bandwidth applications with PCIe® 3.0 connectivity
• Supports 12, 6 and 3Gb/s SAS and 6, 3Gb/s SATA data transfer rates
• Supports RAID levels 0, 1, 5, 6, 10, 50, 60 as standard: balance protection and performance for critical applications
• 2GB Onboard DDR3 Cache Memory for write-cache ability to improve performance
• SR-IOV (Single Root I/O Virtualization) supported with up to 16 VF (Virtual Functions)
• Fit into 1U/2U rack-mounted servers with low-profile form factor
