Refurbished
Scan code: LN147125 Manufacturer code: B760 GAMING X AX D5

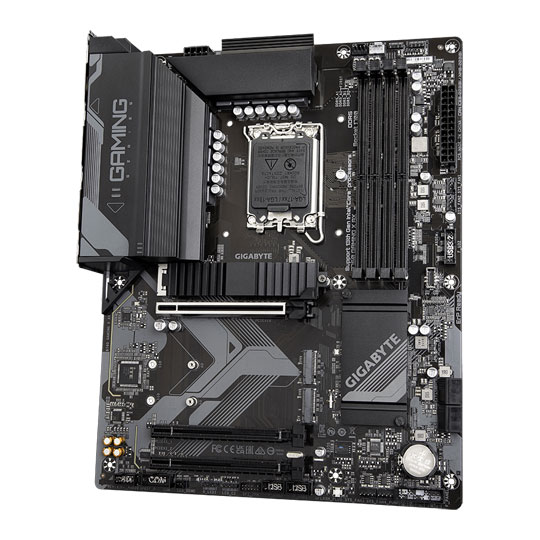

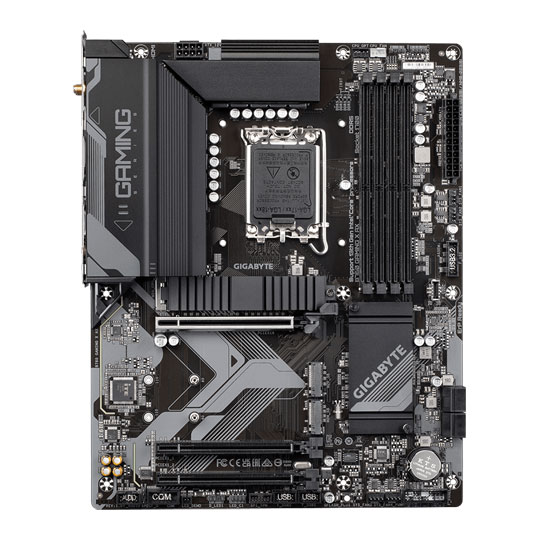

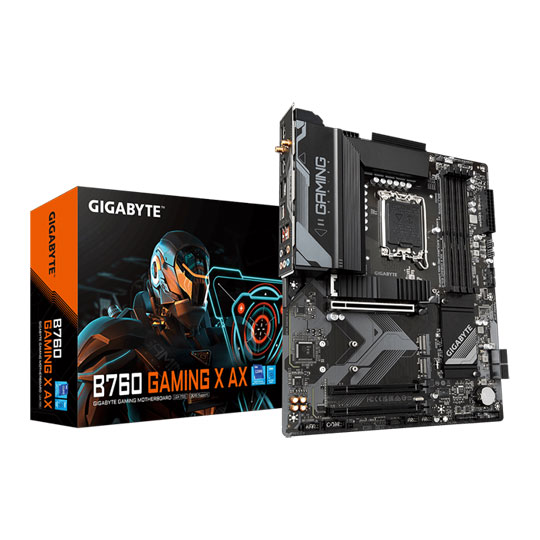

Gigabyte Intel B760 GAMING X AX DDR5 ATX Refurbished Motherboard

Refurbished Gigabyte B760 GAMING X AX DDR5, Intel B760, S 1700, DDR5, PCIe 4.0, 2x M.2, 2.5GbE, USB 3.2 Gen2 Type-C, ATX

Thumbnail 1 : Gigabyte Intel B760 GAMING X AX DDR5 ATX Refurbished Motherboard Thumbnail 2 : Gigabyte Intel B760 GAMING X AX DDR5 ATX Refurbished Motherboard Thumbnail 3 : Gigabyte Intel B760 GAMING X AX DDR5 ATX Refurbished Motherboard Thumbnail 4 : Gigabyte Intel B760 GAMING X AX DDR5 ATX Refurbished Motherboard
Scan code: LN147125 Manufacturer code: B760 GAMING X AX D5
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
£149.99
Get it Tomorrow, 25 MayIn stock
From £13.59 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £13.59
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £149.99
Total inc. interest: £163.06
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 28th May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Unparalleled Performance

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimised performance for gaming.


Hybrid Digital VRM Design

To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE GAMING series motherboard equip the best VRM design ever built with the highest quality components.


PCIe 4.0 Design

GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.


Unlock DDR5

GIGABYTE is offering a tested and proven platform that has memory overclocking capability up to 7600 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.


Triple PCIe 4.0 x4 M.2

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximise their system's potential.


GIGABYTE PerfDrive

PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.


Outstanding Thermal Design

GIGABYTE Motherboards' Un-throttled performance is guaranteed by innovative and optimised thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.


M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.


SMART FAN 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.


802.11ax Wi-Fi 6E

Latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.


Connecting the Future - Front USB 3.2 Gen 2 Type-C®

USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen 1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.


High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.


Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.


Friendly User Interface

The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.


GIGABYTE Control Centre

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.


Q-Flash Plus

With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

Features

• Intel® Socket LGA 1700: Support 13th and 12th Gen Series Processors.
• Unparalleled Performance: Hybrid 8+1+1 Phases Digital VRM Solution.
• Dual Channel DDR5: 4*DIMMs XMP Memory Module Support.
• Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors.
• Advanced Thermal Design & M.2 Thermal Guard : To Ensure VRM Power Stability & M.2 SSD Performance.
• EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design.
• Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax.
• Extended Connectivity: Front USB-C® 10Gb/s, DP, HDMI.
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

Specifications
Core Specifications
Edition B760 GAMING X AX D5
Form Factor ATX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4000(OC)
  • DDR5 - 4800
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
  • DDR5 - 7600(OC)
Max. Memory Capacity 192GB (4x48GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 2.0
Internal Connectivity
Expansion Slots
  • 3 x M.2, 22-80/110, PCIe Gen4x4
  • 2 x PCIe 3.0 x16 (x1 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via Yes
Storage Mode Support
  • RAID 0 (SATA only)
  • RAID 1 (SATA only)
  • RAID 10 (SATA only)
  • RAID 5 (SATA only)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 3 x M.2 Connector
  • 1 x Q-Flash Plus Button
  • 1 x Reset Button
  • 2 x RGB LED connector
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 3 x System Fan header
  • 1 x System Fan/Water Pump Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules

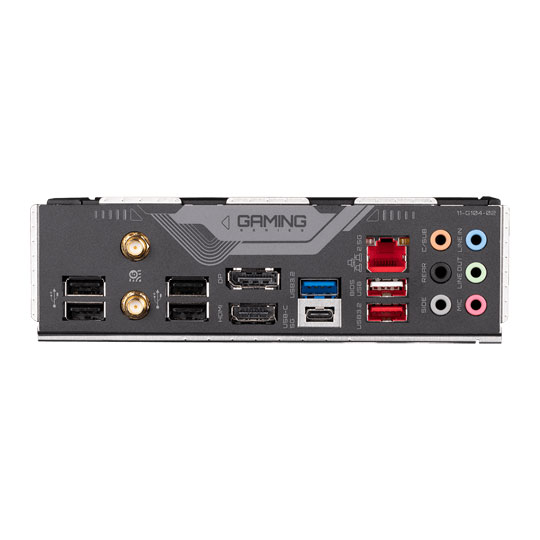

Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.2
  • 1 x HDMI 2.0
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x Side Speaker Out
  • 2 x SMA antenna connectors (2T2R)
  • 5 x USB 2.0
  • 1 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
  • 1 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN147125
Model Number B760 GAMING X AX D5
GTIN 4719331851774
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
Manufacturer Contact Details
Manufacturer:
Gigabyte Uk
Gigabyte Intel B760 GAMING X AX DDR5 ATX Refurbished Motherboard
Gigabyte Intel B760 GAMING X AX DDR5 ATX Refurbished Motherboard
