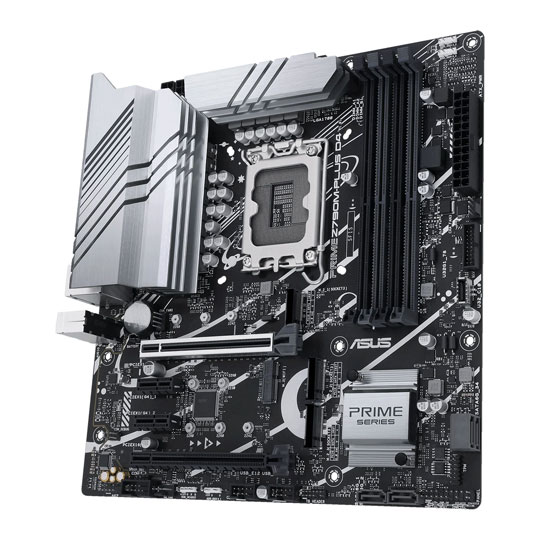

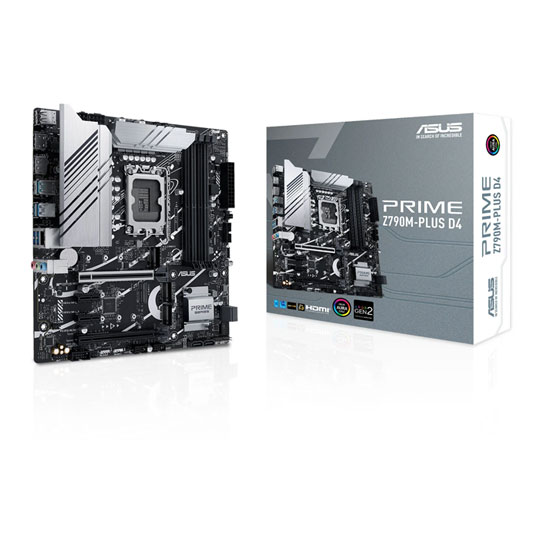

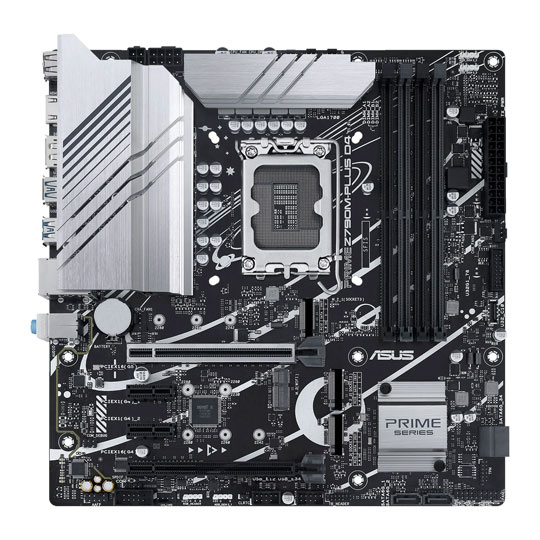

Refurbished ASUS PRIME Z790M-PLUS D4 DDR4 PCIe 5.0 MicroATX Motherboard
NewRefurbished
Refurbished ASUS PRIME Z790M-PLUS D4 DDR4 PCIe 5.0 MicroATX Motherboard
Scan code: LN156828 Manufacturer code: PRIME Z790M-PLUS D4
£229.99
Add To Basket
Get it Tomorrow, 17 MarIn stock
  • Thumbnail 1 : Refurbished ASUS PRIME Z790M-PLUS D4 DDR4 PCIe 5.0 MicroATX Motherboard
  • Thumbnail 2 : Refurbished ASUS PRIME Z790M-PLUS D4 DDR4 PCIe 5.0 MicroATX Motherboard
  • Thumbnail 3 : Refurbished ASUS PRIME Z790M-PLUS D4 DDR4 PCIe 5.0 MicroATX Motherboard
NewRefurbished

Refurbished ASUS PRIME Z790M-PLUS D4 DDR4 PCIe 5.0 MicroATX Motherboard

Refurbished ASUS PRIME Z790M-PLUS D4, Intel Z790, S 1700, DDR4, PCIe 5.0, 3x M.2, 1GbE, USB 3.2 Gen2, mATX
MORE INFO
MORE INFO

Scan code: LN156828 Manufacturer code: PRIME Z790M-PLUS D4
£229.99
£5.48 NEXT DAY DELIVERY
Order in the next 2 hrs 35 mins and get it tomorrow
Add To Basket
Get it Tomorrow, 17 MarIn stock

Email me when the availability or price changes

  • By DPD On 17th Mar Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £9.59 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £19.17
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £229.99
    Total inc. interest: £229.99
    Monthly Payment: £9.59
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £229.99
    Total inc. interest: £229.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview Features

• Intel® LGA 1700 socket: Ready for 12th and 13th Gen Intel® processors.
• Enhanced power solution: 10+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery.
• Next-gen connectivity: PCIe® 5.0, Intel® 1 Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) header support.
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.
• Comprehensive cooling: Large VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II.

Specifications
Core Specifications
Edition PRIME Z790M-PLUS D4
Form Factor MicroATX
CPU Socket 1700
Chipset Intel Z790
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4700(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5066(OC)
  • DDR4 - 5133(OC)
  • DDR4 - 5333(0C)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via RAID 0/1/10/5 (Intel RSTe)
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 3 x M.2 Connector
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Thunderbolt header
  • 1 x TPM Header (14-1 pin)
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Gigabit LAN
Rear I/O Connectors
  • 1 x 7.1 Audio I/O
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN156828
Model Number PRIME Z790M-PLUS D4
GTIN 4711081936688
