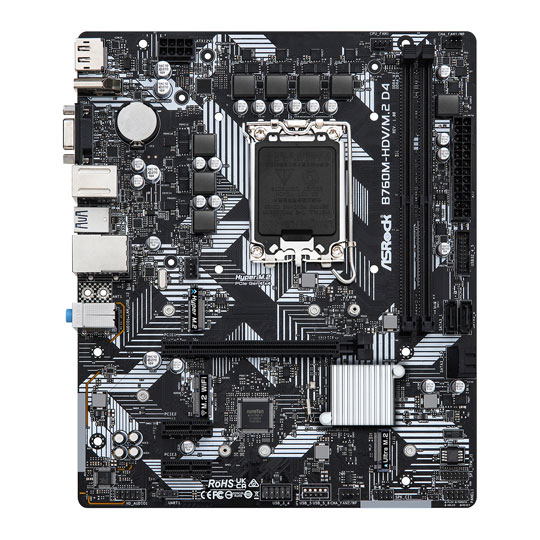

  • Thumbnail 1 : ASRock Intel B760M-HDV/M.2 D4 Micro-ATX Refurbished Motherboard

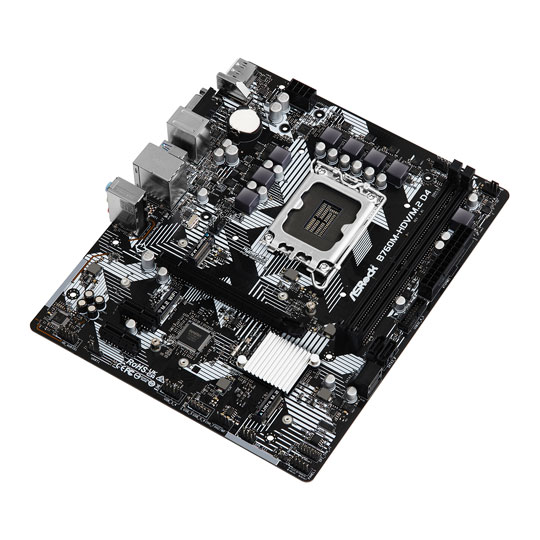

  • Thumbnail 2 : ASRock Intel B760M-HDV/M.2 D4 Micro-ATX Refurbished Motherboard
  • Thumbnail 3 : ASRock Intel B760M-HDV/M.2 D4 Micro-ATX Refurbished Motherboard
  • Thumbnail 4 : ASRock Intel B760M-HDV/M.2 D4 Micro-ATX Refurbished Motherboard
NewSaleRefurbished

ASRock Intel B760M-HDV/M.2 D4 Micro-ATX Refurbished Motherboard

Refurbished ASRock B760M-HDV/M.2 D4, Intel B760, LGA1700, DDR4, SATA3, PCIe 4.0, 2x M.2, GbE, USB 3.2 Gen1, mATX
MORE INFO
MORE INFO

Scan code: LN150864 Manufacturer code: 90-MXBL40-A0UAYZ
Was: £94.99£84.98
Order now and get it tomorrow, Wed 11th Sep
Add To Basket
Get it Tomorrow, 11 SepIn stock
  • By DPD On 11th Sep Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • Spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Product Overview

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.


USB 3.2 Gen1 Type-C

The USB 3.2 Gen1 Type-C provides a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.


Hyper M.2 For SSD

Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation.


Auto Driver Installer

The LAN driver has already prepacked in BIOS ROM, simply follow the instructions and install all necessary drivers automatically.


M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.


Gigabit LAN

Better performance, lowered CPU utilization and enhanced stability.


Features


• Supports 13th Gen & 12th Gen IntelR CoreTM Processors (LGA1700).
• 5+1+1 Power Phase.
• Supports DDR4 5333MHz (OC).
• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi.
• Graphics Output Options: HDMI, DisplayPort, D-Sub.
• Realtek ALC887/897 7.1 CH HD Audio Codec.
• 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4), 1 Ultra M.2 (PCIe Gen3x4 & SATA).
• 1 USB 3.2 Gen1 Type-C (Rear), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 5 USB 2.0 (2 Rear, 3 Front).
• Realtek 1G LAN.
• Supports ASRock Auto Driver Installer.

Specifications
Core Specifications
Edition B760M-HDV/M.2 D4
Form Factor MicroATX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 3200
  • DDR4 - 4400+(OC)
  • DDR4 - 5333(0C)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.4 (DSC)
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion/Speaker Header
  • 2 x Chassis Water Pump/Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 2 x RGB LED connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen 1
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)

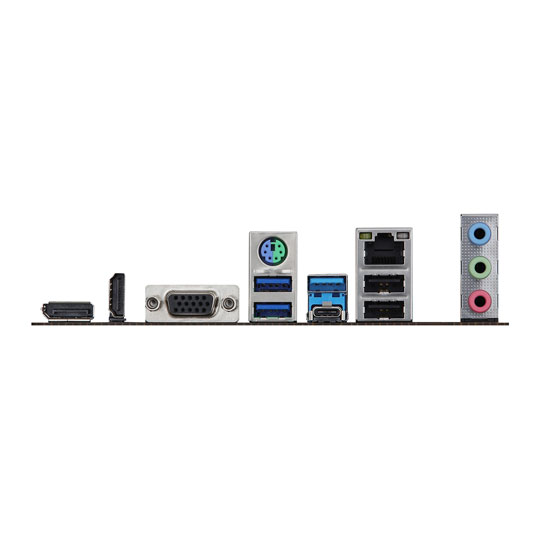

Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x RJ-45
  • 2 x USB 2.0
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 201 mm
