New
Scan code: LN126301 Manufacturer code: M 18

RCF - M 18 Digital Mixer with Integrated Effects

RCF - M 18, Wi-Fi Controlled Digital Mixer, Two Amp-Modeling Channels, Studio-Grade Effects

Thumbnail 1 : RCF - M 18 Digital Mixer with Integrated Effects Thumbnail 2 : RCF - M 18 Digital Mixer with Integrated Effects Thumbnail 3 : RCF - M 18 Digital Mixer with Integrated Effects
Scan code: LN126301 Manufacturer code: M 18
£542.48Item due on 25 August 2022
Due 25th Aug
FREE DELIVERY ON YOUR ENTIRE BASKET
From £16.44 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £46.63
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £542.48
Total inc. interest: £559.50
Monthly Payment: £23.99
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £542.48
Total inc. interest: £575.55
Monthly Payment: £16.44
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £542.48
Total inc. interest: £591.88
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £13.55 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Small-Format WiFi-Controlled Mixer
RCF - M 18

RCF - M 18

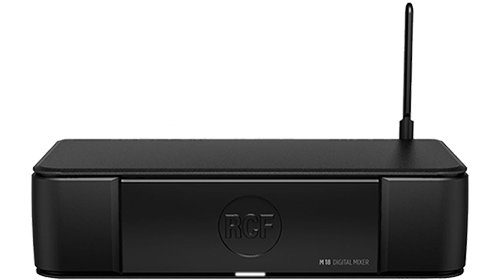

Digital Mixer with Integrated EffectsThe fader-free, all-in-one M 18 from RCF features an on-board WiFi access point with both external and internal antennas, enabling full wireless control from up to 5 tablets. It features a total of 18 analog inputs, 8 mic preamps, up to 19 simultaneous studio-grade effects and a full suite of plug-in algorithms and professional internal effects, including a high-quality stereo reverb and classic emulations of guitar and bass amplifiers.

The input EQs (Standard, Vintage and Smooth) enable a wide range of sounds and a flexible sound-sculpting environment. A master processor on the main outputs allows a final fine-tuning of the overall sound. A USB port for the internal two-track player and recorder, MIDI ports and footswitch input provide maximum flexibility!

at a glance • 18 analogue input channels, 8 mic preamps and 10 Line inputs including 2 HiZ switchable inputs
• 19 simultaneous studio-grade effects, including Guitar & Bass emulations developed by Overloud
• MixRemote app ensuring a comprehensive control
• Three internal FX: Reverb, Delay, Modulation
• MixRemote app ensuring a comprehensive control
• 1 dual footswitch connector
• MIDI IN and OUT ports

MixRemote App

RCF - M 18

designed with musicians in mindThe MixRemote App enables complete and versatile control of the RCF M 18 Digital Mixer. Developed for iOS first, the MixRemote App has been designed with musicians in mind and is very simple to use, thanks to its intuitive Graphic User Interface.

Each page or channel functions can be reached with a couple of touches of a single hand – an essential convenience while playing.

Take Control

RCF - M 18

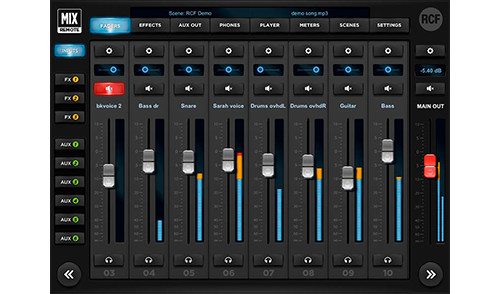

InputsA dedicated App has been developed to ensure a quick and intuitive interaction with the M 18 digital mixer. Special care has been taken to offer consistent navigation among pages. The screen area is divided into 5 different zones: click on the dots to discover them.

FX sendsThe main page presents three fader layers to control the FX sends. FX1-FX2-FX3 allows three internal FX feeds.

AUX sendsThe main page presents six fader layers to control the AUX sends. AUX1 to AUX6 allows six auxiliary output feeds.

Studio Grade Effects

RCF - M 18

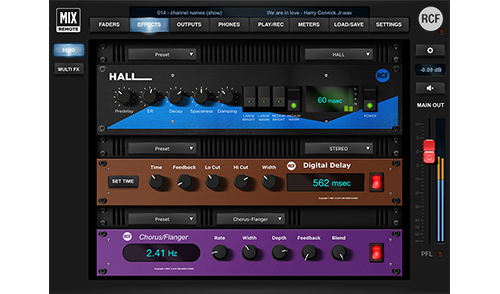

SENDThe M 18 digital mixer can provide up to 19 simultaneous effects. Three of them are defined as “SEND EFFECTS” and are fed by dedicated FX SENDS. FX1 is a particularly deep and transparent reverb, providing a realistic simulation of large ambients, such as halls, or rooms and plates.

FX2 is a professional delay with a tap time up to 2500 ms and dedicated filters on the feedback signal, thus creating interesting sounds and complex tapping effects. FX3 is an assignable multi-effect with several choices: chorus, flanger, pitch shifter, among the others.

MULTI FXA unique function that is available only in the M 18 digital mixer is the MultiFX effects chain. This powerful option can be applied to up to 4 channels: A freely ordered chain of three effects – Pitch Shifter, Chorus/Flanger, Delay – can be inserted into channels 5 and 6 or, alternatively, 7 and 8. Or, Channels 9 and 10, which also have a selectable Hi-Z input line, provide an insert effect chain of 5 simultaneous effects.

Two Realistic Amp Modeling Channels

RCF - M 18

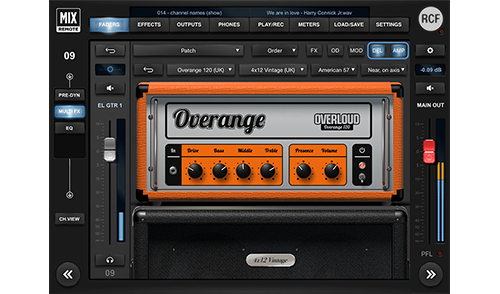

11 simulatorsDesigned for musicians. Two line inputs can be switched to a Hi-Z mode and host several realistic amp modeling simulators. Guitar and bass players can count on as many as 11 simulators specifically created for them: Darkface ‘65 (US), JazzC (JP), Rock ‘64 (UK), Rock 800 (UK) Crunch, Rock 900 (UK) Lead, Top30 (UK), Modern (US), BassMate (US), BassAmp (DE), Markbass Little Mark III (IT), Markbass TTE 500 (IT).

The new firmware version adds a further four Amp Simulators: Slo88 Crunch (US), Slo 88 Lead (US), Overange 120 (UK) and Heavy 51 (US). It is also possible to substitute one of the Amp Simulators with a versatile Acoustic Simulator. Combine each amp with many different cabinets and explore various sound possibilities, emulating three types of microphone and three distinct positions: Near on axis, Near off axis, and Far from cabinet (1 m). The wide range of integrated sound options will allow every musician to re-create his/her own personal familiar sound without the need to transport heavy and bulky amplifiers and cabinets.

RCF M 18 Digital Mixer Live Acoustic Performance

The Tech Spec

Features Specification
Channels 20
Signal Processing 32-bit floating point
Conversion A/D to D/A: 24 bits @ 48 kHz
Dynamic Range 114 dB
Mic Inputs 8
Remote Control Remote Controlled Storable Gain
Gain Range 0 to 60 dB
Equivalent Input Noise Leve -128 dBu A-Weighted
Input Impedance 1 kOhm
Low Cut Frequency Adjustable 10 to 500 Hz
Phantom Power +48 V
Line Inputs 2 x HI-Z
Dynamic Range 114 dB
Main Mix Outputs 2 x L/R
AUX Sends 6
Sound FX FX Sends: 3
Output Impedances Main Out Impedance: 50 Ohms Main Out Level: 21 dBu Aux Out Impedance: 50 Ohms Aux Out Level: 21 dBu Phones Out impedance: 40 Ohms Phones Out Level: 35 dBm
Effects Send 3
Output Impedances Main Out Impedance: 50 Ohms Main Out Level: 21 dBu Aux Out Impedance: 50 Ohms Aux Out Level: 21 dBu Phones Out impedance: 40 Ohms Phones Out Level: 35 dBm
MFX 16
Mastering Formats Valve Warmer, Xciter, Maximizer, 31 band Graphic EQ present on MAIN MIX
USB Audio Type: A Play Track: 2 Recording Track: 2 Supported Sample Rate: 48 kHz Supported Play Formats:MP3, WAV, AIFF Compressed File Format Play: Up to 320 kBps Supported Rec Format: WAV
Dimensions 3.5 x 13 x 7.1" (8.8 x 34 x 18 cm)
Weight 5.5 lb (2.5 kg)
Specifications
Total Channels
Max Mic Inputs
Computer Interface
Mixer Type
Computer Interface Channels
Total Aux Channels
Subgroups
Max Line Inputs
Analogue Insert Points No
Direct Channel Outputs
Internal FX No
Flying Faders No
Additional Information
Scan Code LN126301
Model Number M 18
