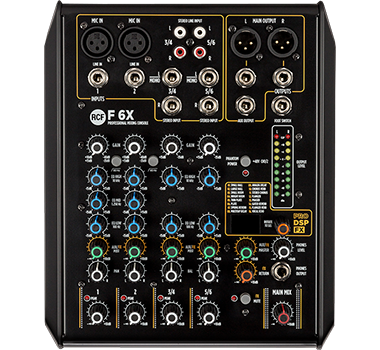

6-Channel Mixing Console with Multi-FX
RCF - F 6X
Feature Rich & user-friendlyThe F 6X is part of RCF’s next generation F Series mixers, building further on the rich analogue legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. An incredibly effective tool for the musician and the sound enthusiast, entirely designed and built by the RCF R&D team.
Kept safe in a sturdy metal chassis, each mixer features a fully balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects including Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, F-16XR and F-24XR, all include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.
At A Glance
• 2 Mic/Line inputs & 2 stereo line inputs
• Balanced main output audio path from input to output
• 16 presets PRO DSP internal FX
• One Aux/FX (post)
RCF - F Series Mixing Console
The Tech Spec
| Features | Specification | Frequency Response | 20 Hz ÷ 20 kHz |
|---|---|
| THD+N, 20dB gain, 0dBu out | <0,02% A-Weighted |
| Inputs | Channels: 6 Mic: 2 Gain Range: 0 dB ÷ -50 dB Input Noise Level: -124 dBu A-Weighted Mic Inputs Impedance: 14 kohm Low Cut: 80 Hz Phantom Power +48V: Yes Mono Line: 2 Gain Selection: 20 dB ÷ -30 dB Line Input Impedance: 21 kohm Stereo Line: 2 Gain Selection: 20 dB ÷ -30 dB Stereo Line Input Impedance (kOhm): 15 kohm Input connectors: XLR, Jack, RCA |
| Outputs | Main MIX: 1 FX Send: 1 AUX Output: 1 Phones: 1 Output connectors: XLR, Jack |
| Main Out Level | 28 dBu |
| Aux Out Level | 28 dBu |
| Phones Out impedance (ohm) | 150 ohm |
| RCF Compressors | n° 2 Single Control compressors on channels 1&2 |
| EQ | Input Channels EQ: 2 Shelving / 1 Generic Description: High:+/-15 dB @ 10 kHz Shelving, Mid:+/-15 dB @ 1,250 kHz, Bell Low:+/-15 dB @ 100 Hz Shelving |
| Auxiliary Sends | FX POST: 1 |
| Send Effects | 1 |
| USB Audio | USB Audio Interface: Yes Type: B Play trk: 2 Rec trk: 2 Supported Sample Rate: 44.1, 48.0 kHz |
| Footswitch | Yes |
| Power supply | External |
| Voltage requirements | 100 V - 240 V |
| Power consumption (MAX) | 12 W |
| Cabinet/Case Material | Metal |
| Colour | Black |
| Dimensions | Width: 210 mm / 8.27 inches Height: 79 mm / 3.11 inches Depth: 255 mm / 10.04 inches |
| Weight | 1.8 kg / 3.97 lbs |
