Scan code: LN109516 Manufacturer code: PTZUHD NEWTEK

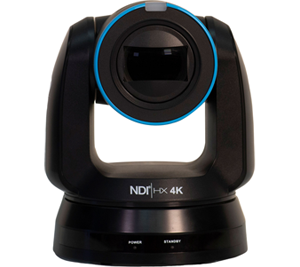

PTZUHD Camera x30 Optical Zoom

NewTek PTZUHD Camera - NDI®|HX PTZ camera with Ultra High Definition (UHD) video

Thumbnail 1 : PTZUHD Camera x30 Optical Zoom Thumbnail 2 : PTZUHD Camera x30 Optical Zoom Thumbnail 3 : PTZUHD Camera x30 Optical Zoom Thumbnail 4 : PTZUHD Camera x30 Optical Zoom
Scan code: LN109516 Manufacturer code: PTZUHD NEWTEK
£5,600.40Item currently awaiting an ETA
Pre order
From £116.68 / month (APR 0%)
Monthly Payment: £466.70
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £5,600.40
Total inc. interest: £5,600.40
Monthly Payment: £233.35
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £5,600.40
Total inc. interest: £5,600.40
Monthly Payment: £155.57
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £5,600.40
Total inc. interest: £5,600.40
Monthly Payment: £116.68
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £5,600.40
Total inc. interest: £5,600.40
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

HX Camera with 30x Optical Zoom
NewTek - 'PTZUHD PTZ NDI Camera'

NewTek - 'NDIHX-PTZ1'

30x Optical Zoom Quickly acquire and send high-quality video images at up to UHD resolution over IP from anywhere on your network with NewTek’s impressive ‘PTZUHD’. Just connect the camera to the network and the PTZUHD becomes instantly available and software manageable as an input source for any NDI® based system or production environment.

Carrying on the tradition of carefully crafting innovative digital media production components, the NewTek ‘PTZUHD’ is the very first IP-based camera that offers full UHD video at up to 60 frames per second straight to NDI-compatible systems. As a software driven component with application integration, PTZUHD boosts live production requirements including lecture capture, videoconferencing, and more for today and tomorrow.

30xOptical Zoom

1/1 to 1/10,000 secShutter Speed

3.5mmAudio Input

Amazing Features • 30x Optical Zoom
• Up to UHD 4K/59.94 Capture & Streaming
• Video, Audio & Control over Single Cable

'The Faster, Easier, and Better Way
to Acquire Live Video'

NewTek - 'NDIHX-PTZ1'

limitless possibilities Imagine the possibilities of cameras that can serve as a live video input for any NDI®-compatible hardware or software—from anywhere on your network. NewTek NDI® PTZ Cameras, the faster, easier, and better way to acquire live video.

Pristine UHD VideoDeliver superior quality ultra high definition video with native support for resolutions up to 2160p 60 using a 30X optical zoom lens and CMOS sensor.

IP Based ProductionAcquire and deliver video to the network with NDI® output and even use Multicast Mode to permit multiple destinations to receive video.

One Cable ConnectivitySupply power, connect to the network, acquire and transmit video, and operate the camera with a single Ethernet cable.

Fluid MovementHigh-speed, quiet, and precise positioning with smooth pan-tiltzoom operations.

Remote ControlManage using an intuitive web-based user interface that includes controls for pan-tilt-zoom functions, presets, and camera settings.

Software DrivenIntegrates with select live production systems from NewTek, as well as production and meeting software applications to easily satisfy a variety of production requirements.

'NDI PTZ' Camera and 'Connect Spark'

NewtekZane Condren shows how to use the NDI PTZ camera and NewTek Connect Spark over NDI.

The Tech Spec

Features Specification
Video / Audio Output NDI
Video Formats 1080p 29.97/30/50/59.94/60 1080i 50/59.94 720p 50/59.94/60
Lens Zoom: 20x (optical) Focal Length: 4.7-94mm Maximum Aperture: f/1.6-f/3.5
Shutter Speed 1-1/10,000 sec
Rotation Speed Maximum: 300°/sec
Pan Angle -170 to +170°
Tilt Angle -30 to +90°
Horizontal Viewing Angle 63°
Audio Input 3.5mm stereo line-level
Tally Support via NDI|HX
Focus Auto, manual
White Balance Auto, manual, indoor, outdoor, one-push
Gain Control Auto, manual
Exposure Control Auto, manua
Other I/O 1 x 8-pin DIN, RS-232 input 1 x 8-pin DIN, RS-232 output 1 x 9-pin serial, RS-422 1 x USB micro-B
Power Accepts PoE+ (Power over Ethernet 802.3at) or 12 VDC, 1 A from included power supply
Specifications
Mega Pixel
Resolution (Still Image)
Resolution (Video)
Live Video Frame Rate
Zoom
LCD Display No
Sensor Type
Dynamic Range
Connectivity
Onboard Memory
Storage Type
Image Formats Supported
Video Formats Supported
Shooting Modes
Weight
Dimensions
Colour
5.1 Sound No
Additional Information
Scan Code LN109516
Model Number PTZUHD NEWTEK
GTIN 00
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
