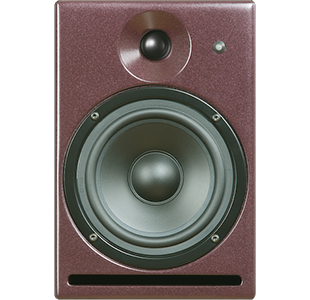

PSI A14-M Studio Monitor - Red (Single)

Product Overview The PSI Audio A14-M Studio is the smallest member of the PSI Audio A-Series professional studio monitor range. The studio edition features a more rounded design and an aesthetic similar to the rest of the A-Series. The precise low end power is amazing for a cabinet of this size. The PSI Audio A14-M is the ideal near field monitor where the ultimate in precision sound and portability is required. Packed into its compact dimensions, is all the technology of its larger brothers. The powerful bi-amplified output features the unique "AOI" output stages, while the active crossover, with integrated "CPR", delivers unprecedented impulse behaviour - with excellent stereo imaging.

Don't make the mistake of thinking this is just another small speaker….you need to hear them to find out. The crossover is also optimized for maximum phase coherence, projecting a wide horizontal and vertical ideal listening area. Designed to work in harmony with the full range of A series monitors the A14-M also makes ideal rear speakers in a surround sound setup or can be developed in to a more powerful system by adding the A225-M sub - thus protecting your investment.

"The overall tonal balance is pretty much perfect to my ears" - Hugh Robjohns, Sound On Sound Magazine

More information can be found in the User Manual below:
Features • Protection circuits with overload indicator
• Magnetically shielded for use close to video monitors
• Designed for stereo and multichannel monitoring
• Optimised directivity by phase coherency
• Flat frequency response
• Real balanced input
• CPR, AOI, ALG, PSC*
• Power: 70 + 30W
• Frequency Range: 56Hz – 23kHz
• SPL Max: 101dB
• 100% Analog – No DSP
• Flat frequency response
• Phase compensated for a better stereo image
• Individually calibrated
• Typical listening distance: from 1 m
• 5 years warranty
• Handmade in Switzerland

Technical Specifications
• Power RMS: 70 + 30W
• Program Power: 100W
• Input Impedance: Sym, 10k Ohms
• Sensivity for 100 dB @ 1m: 0.775 V
• Signal to Noise Ratio: 96 dBA
• Continuous Max [email protected]: 101 dB (single)
• Input Overload: 24 Vpp
• Program Max [email protected]: 112 dB (pair)
• Response at -6dB: 56 - 22000 Hz
• Tolerances: ±2.5 dB (65Hz - 18kHz)
• Distortion THD: less than 1.8% (95Hz-15kHz)
• Phase tolerances: ±45° (260Hz - 16kHz)
• Dispersion (P.N. 4 - 16 kHz) at -6 dB: 100° x 100° (H x V)
• System: 2 Way(s)
• Crossover frequency: 3.5 kHz
• Woofer's dim. Ext. / Diaphragm: Ø147mm / Ø104mm
• Tweeter's dim. Ext. / Diaphragm: Ø70mm / Ø24mm
• Connectors: 1 x XLR F / 3P
• Signal input: 1=GND, 2=(+), 3=(-)
• Material: MDF
• Dimensions W x H x D mm: 163 x 243 x 170
• Gross / Net Weight: 6.2 / 5.5 kg
• Voltage: 115/230V (50-60Hz)
• Consumption Standby-Quiescent-Max: 1.4 - 6 - 100W
• Mean / Max Humidity: less than 75% / less than 90%
• External Temperature: 5 - 40°C
