PreSonus Quantum Thunderbolt 2 Audio Interface

Product Overview

Expandable Ultra-High Definition Studio Command Centre

Record with The Power of Thunderbolt
Thunderbolt is the interface set to take over the audio world. Take full advantage of this blisteringly fast connection alongside ADAT Optical I/O. The Quantum features up to 26 inputs and 32 outputs all with super low latency. We also have 24-bit, 192kHz recording and playback capability and recallable XMAX mic pres. You can also expand the system as your needs grow. It's a perfect choice for a variety of pro and semi-pro users.

High Speed - Low Latency





No-Frills Direct To DAW
Every design decision during the engineering phase of Quantum was made with one goal in mind: speed. With Thunderbolt 2 connectivity and no DSP the result is PreSonus's leanest, fastest and lowest latency interface to date.

Expandable When You Need More I/O





Up To 96 Inputs and Outputs

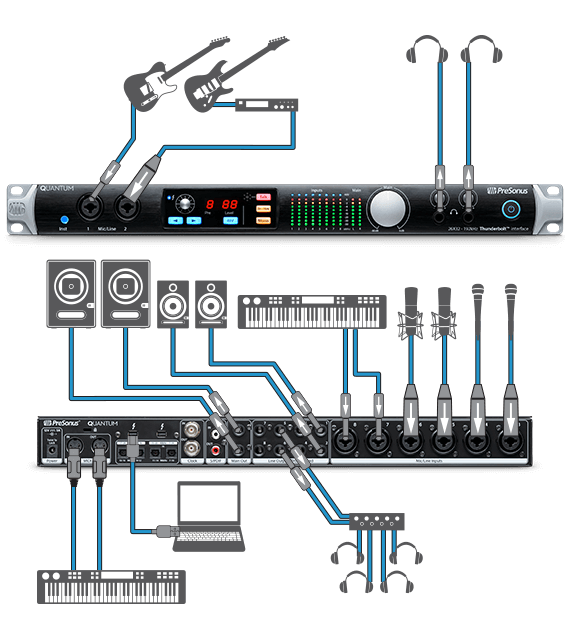

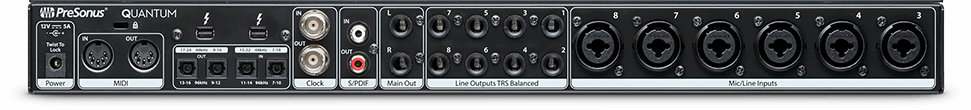

The Quantum comes with two combo mic/instrument inputs and six combo mic/line/instrument inputs, each has its own digitally-controlled XMAX preamp and global +48V phantom power. We also have two ¼" TRS main outputs, eight ¼" TRS aux outputs, and two independent headphone outs with dedicated volume controls. That's only the beginning. With ADAT Optical I/O and S/PDIF stereo digital I/O, you can have up to 18 digital inputs and outputs. If you ever find that you need even more I/O channels, you can stack up to four Quantum interfaces via Thunderbolt to create a beast of a system with up to 96 I/O. BNC word clock I/O ensures your Quantum and other digital audio devices operate in tight sync. And of course you get MIDI I/O, too.

Superior Converters - Superior Sound





Audiophile Grade Experience
The converters on the Quantum provide 120dB of dynamic range, have low jitter and recallable preamps and allow you to capture complex musical detail and harmonies smoothly and naturally. The XMAX preamps are Class A analogue pres which deliver high headroom, deep lows, sparkling highs and a rich, smooth overall sound. You'll hear every transient, breath and detail in your recordings.

The Command Centre of Your Studio





Fits Into Any Recording Environment

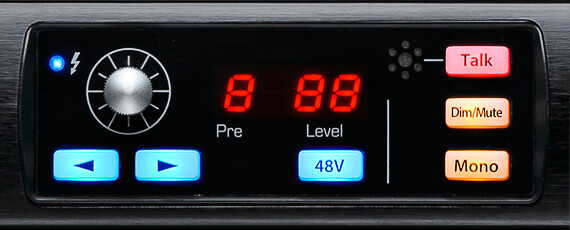

The Quantum is designed to be the central hub of your recording studio and offers two main outputs alongside eight auxiliary balanced line-level outs. We also have an on-board talkback mic which can be routed to any mix and you can listen to any mix from the two dedicated headphone amps. There is also Dim/Mute and Mono controls. With all this expandability, professional features, flexible software and ample I/O the Quantum will comfortably fit into any production or recording environment.

Tight Integration with Studio One





Hardware and Software by Presonus
Studio One and Quantum work in tandem flawlessly. When you launch Studio One you will find full integrated preamp control and if you need to track away from the main studio then simply launch Studio One on your iPad!

Quantum customers also get 50% off upgrades to Studio One Professional

Need Remote Control?





Look No Further Than UC Surface

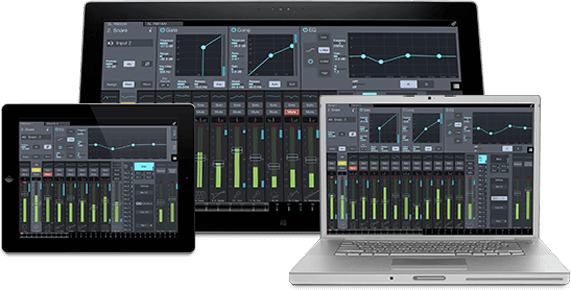

All the onboard features in Quantum can be controlled via Presonus' free UC Surface software, so if you use third-party DAW software you can still remotely access them. Presonus have included a real-time analyser to monitor your audio streams. UC Surface has won accolades for its intuitive mixing interface that quickly provides access to everything you need

Includes the New Studio Magic Plug-in Suite





Legendary Plug-Ins
This brilliant suite of plug-ins brings extended sonic functionality into Studio One. They have been cherry-picked from the biggest names in the industry, bring top-tier virtual instruments and effects to your songs. These plug-ins aren't gimmicky one-trick ponies - these are the real deal workhorses that are used in countless productions around the globe.
Features General Features
• 26x32 Thunderbolt 2 ultra-low-latency audio interface.
• PreSonus’ fastest interface; record direct to DAW (no DSP).
• Stack up to four Quantum interfaces via Thunderbolt for a monster system.
• Talkback switch and internal Talkback microphone.
• Mute/Dim and Mono switches.
• Assignable output level control.
• 10 8-segment LED meters (8 input, 2 output).

Integrated Software
• Tight integration with included Studio One® Artist DAW software (Mac/Windows) for multitrack music production and studio command features.
• Wireless control over preamp levels from free UC Surface touch-control software (Mac®/Windows®/iPad®) and from free Studio One Remote for iPad.
• Compatible with most recording software for Mac and Windows.

Flexible Connectivity
• Simultaneous I/O up to 26 inputs/32 outputs (at 44.1 or 48 kHz).
• 2 front-panel combo microphone/instrument/line inputs.
• 6 rear-panel combo microphone/line-level inputs.
• 8 XMAX remote-controllable, Class A mic preamps with individually switched 48V phantom power.
• 2 balanced ¼” TRS line-level main outputs.
• 8 balanced ¼” TRS line-level outputs.
• Line outputs are DC coupled for sending control voltages for analog gear.
• ADAT Optical/Dual SMUX inputs/outputs: 16x16 channels at 44.1 or 48 kHz; 8x8 channels at 88.2 or 96 kHz.
• Stereo S/PDIF coaxial input and output.
• 2 high-volume headphone outputs with dedicated volume controls.

Digitalia
• Thunderbolt 2 high-speed bus.
• 24-bit resolution and up to 192 kHz sampling rate.
• Top-quality 120 dB A/D/A converters.
• BNC word clock input and output with low-jitter clocking.
• MIDI I/O on 5-pin DIN connectors.

Physical
• Road-rugged construction with all-metal chassis and metal knobs.
• 1U rack-mountable.
• 12 VDC external power supply (included).
