PowerColor AMD Radeon RX 6800 Red Dragon 16GB Graphics Card
PowerColor Radeon RX 6800 Red Dragon 16GB GDDR6 Ray-Tracing Graphics Card, RDNA2, 3840 Streams, 1905MHz, 2140MHz Boost
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

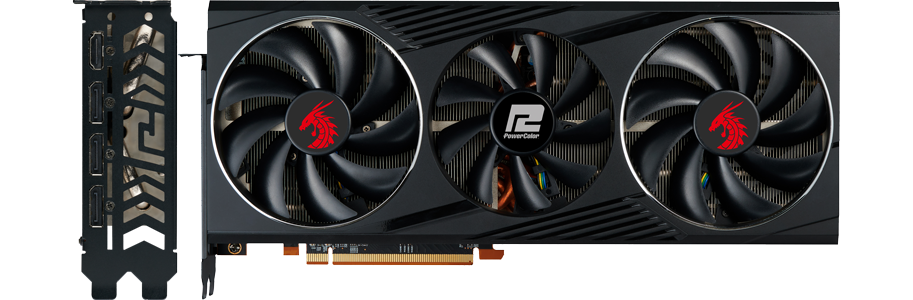

PowerColor AMD RX6800 Red Dragon RDNA2 Graphics Card
Unleash The Power of The Dragon The Red Dragon RX6800 is paired with an entirely new advanced cooling solution to keep your graphics card temperatures as low as possible whilst providing the ultimate immersive gaming experience. Boasting a 320mm cooler with 7 heatpipes, and a large copper base improves heat transfer and dissipation from the GPU and the VRAMs to provide ultra-efficient cooling and updated RGB lighting across the board. underneath the beautiful aesthetics the RX6800 Red Dragon features the all-new breakthrough RNDA2 architecture - engineered to deliver powerhouse performance to all gamers. The AMD Radeon™ RX 6800 graphics card powers a new generation of competitive and 4K gaming with vivid visuals, and elevated experiences in every game and every frame with powerful new compute units, groundbreaking AMD Infinity Cache, DirectX 12/PCIe 4.0 Support and 16GB of dedicated GDDR6 memory. Experience gaming with realistic lighting, shadows, and reflections along with rich detail thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimised for AMD RDNA™ 2 architecture.

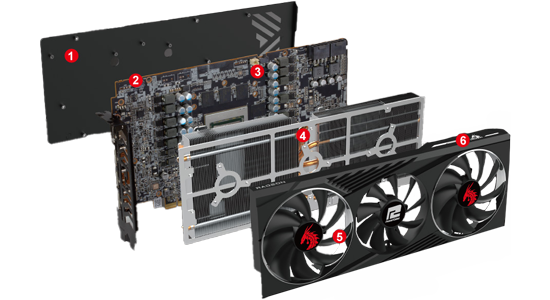

Take a Look Inside
1. Metal BackplateThe metal back plate strengthens and protects the card and offers better heat dissipation.
2.Dual BiosChoose the BIOS fits your need: better overclocking or silent operation
3. Stronger ComponentsDrMOS provides superior power efficiency and offers better thermal protection.
4.Cooler7X 6Φ heatpipes efficiently dissipate the heat and make your card cool.
5. Triple FanThe 2X 100mm and 1X 90mm optimised static pressure fans provide more effective air flow and better cooling circulation.
6. RGB Featuring the Red LED brighten your Red Dragon in the dark.

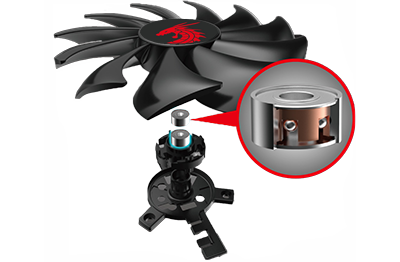

Exclusive New Cooling-Fan Design
New Blades, New Bearings, New TechnologyPowerColor have raised the bar when it comes to their cooling solution, boasting all-new angled blades to increase airflow up to a whopping 60%, new dual-bearing technology increases fan longevity by up to 4x and mute fan technology intelligently turns off your fans when below 60° to give you silent gaming during low demand.

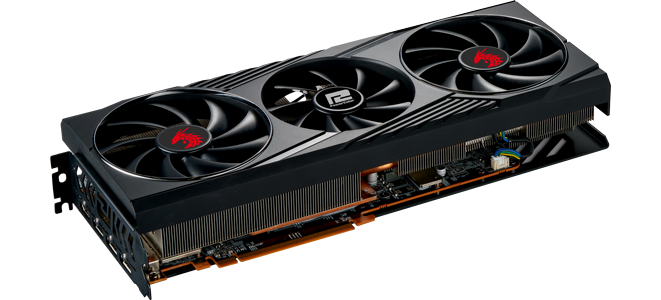

Bigger, Better and More Efficient
Triple-Fan CoolerUnderneath the hood, the Red Dragon RX6800 equips an advanced and outstanding cooler with 7X 6Φ nickel plated copper heatpipes to ensure the efficiency of heat spread to the heatsink, paired with a large array of vertical fins and a smooth copper direct contact base allows the RX6800 to distribute heat efficiently and keeps the sensitive components of your GPU at optimum temperatures to ensure you receive the ultimate gaming experience whenever it is required.
A Breakthrough Gaming Architecture
RDNA2 ArchitectureAMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi- gaming platforms, like no other graphics architecture before.
Contrast Adaptive SharpeningOFF
Contrast Adaptive SharpeningON
Bring Out All The DetailContrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.
Shading Rate OverlayOFF
Shading Rate OverlayON
Get Performance with QualityUsing RDNA2 architecture and variable rate shading allows fidelityFX to analyse luminance and motion of frames to help optimise rending to ensure you also get optimal performance without reducing image quality.
Realistic Geometry ShadingAMD RDNA™ architecture-optimized Combined Adaptive Compute Ambient Occlusion (CACAO) dynamically and efficiently helps improve the appearance of objects based their exposure to ambient light.
Screen Space ReflectionsOFF
Screen Space ReflectionsON
High-Quality Realistic ReflectionsAMD’s implementation of Stochastic Screen Space Reflections (SSSR) delivers high-quality reflections with minimal overhead via an optimised compute shader and AMD RDNA™ architecture-optimised denoising.
High-Quality Raytracing and EffectsDenoising optimised for AMD RDNA™ architecture to help improve the visual quality of real-time raytracing and other in-game effects.
High-Quality HDR GamingOptimised for use with AMD FreeSync™ Premium Pro1 displays, AMD's Luminance Preserving Mapper (LPM) delivers superb HDR and wide color gamut content.
AMD Graphics Card Specifications
|AMD Radeon RX Card Specifications|
|Model||RX 6900 XT||RX 6800 XT||RX 6800||RX 6700 XT||RX 5700 XT||RX 5600 XT||RX 5500 XT||RX 580||RX 570|
|Architecture||RDNA2||RDNA2||RDNA2||RDNA2||RDNA||RDNA||RDNA||GCN 4th||GCN 4th|
|GPU||Big Navi||Big Navi||Big Navi||Big Navi||Navi 10||Navi 10||Navi 14||Polaris XTX||Polaris 20 Pro|
|Reference Base Clock||2,015 MHz||2,015 MHz||1,815 MHz||2,321 MHz||1,605 MHz||1,420 MHz||1,607 MHz||1,257 MHz||1,168 MHz|
|Reference Boost Clock||2,250MHz||2,250 MHz||2,105 MHz||2,581 MHz||1,905 MHz||1,620 MHz||1,845 MHz||1,340 MHz||1,244 MHz|
|Memory||16GB GDDR6||16GB GDDR6||16GB GDDR6||12GB GDDR6||8GB GDDR6||6GB GDDR6||4GB/8GB GDDR6||4GB/8GB GDDR5||4GB/8GB GDDR5|
|Chipset||Radeon RX 6800|
|Manufacturing Process||7 nm|
|Cores & Clocks|
|Core Clock||1905, 1950 (OC Mode) MHz|
|Boost Clock||2140, 2170 (OC Mode) MHz|
|Video Memory (VRAM)|
|Memory Clock||16000 MHz|
|Memory Speed (Effective with DDR)|
|Memory Bus||256 Bit|
|Memory Bandwidth||512 GB/s|
|Memory Data Rate|
|Cooling Solution||Tri Fan (3)|
|Cooler Design||PowerColor Red Dragon Cooler|
|I/O & Connectivity|
|Interface||PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]|
|AMD CrossFire Support|
|AMD Freesync Support||Yes|
|AMD FreeSync Version||FreeSync™|
|Microsoft DirectX Support||12 API|
|Max. Concurrent Displays||4 Displays|
|Maximum Digital Resolution||7680x4320 (8K UHD)|
|Maximum Analog (VGA) Resolution|
|Peak Half Precision Compute Performance (FP16)||32.33 TFLOPs|
|Peak Single Precision Compute Performance (FP32)||16.17 TFLOPs|
|Peak Double Precision Compute Performance (FP64)|
|Power & Thermals|
|Graphics Card Power Connectors||2 x 8-pin PCIe|
|Graphics Card TDP/Power|
|Minimum Recommended PSU||650 W|
|Maximum GPU Temperature|
|Low Profile Support||N/A|
|Dimensions||310 x 135 x 54 mm|
|Model Number||AXRX 6800 16GBD6-3DHR/OC|
