Scan code: LN104638 Manufacturer code: AXRX 5600XT 6GBD6-3DHE/OC

PowerColor AMD Radeon RX 5600 XT Red Devil 6GB GDDR6 RDNA PCIe 4.0 Graphics Card

PowerColor Radeon RX 5600 XT Red Devil 6GB GDDR6 PCIe 4.0 Graphics Card, 7nm RDNA, 2304 Streams, 1660MHz, 1750MHz Boost

Thumbnail 1 : PowerColor AMD Radeon RX 5600 XT Red Devil 6GB GDDR6 RDNA PCIe 4.0 Graphics Card Thumbnail 2 : PowerColor AMD Radeon RX 5600 XT Red Devil 6GB GDDR6 RDNA PCIe 4.0 Graphics Card Thumbnail 3 : PowerColor AMD Radeon RX 5600 XT Red Devil 6GB GDDR6 RDNA PCIe 4.0 Graphics Card Thumbnail 4 : PowerColor AMD Radeon RX 5600 XT Red Devil 6GB GDDR6 RDNA PCIe 4.0 Graphics Card PowerColor AMD Radeon RX 5600 XT Red Devil 6GB GDDR6 RDNA PCIe 4.0 Graphics Card : video thumbnail 1
Scan code: LN104638 Manufacturer code: AXRX 5600XT 6GBD6-3DHE/OC
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

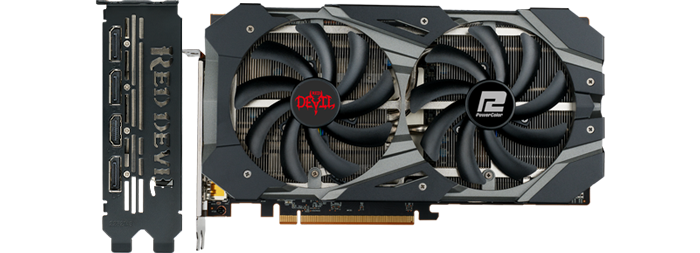

AMD Radeon RX 5600 XT Red Devil Graphics Card by Powercolor

Image to show Graphics Card in full

Unleash The Red DevilThe time is nigh. Introducing the beast, the PowerColor RX 5600 XT Red Devil, powered by the all advanced 7nm RDNA Architecture taking 1080p gaming to all new heights giving you, ultra-responsive, high fidelity triple A gaming with up to 60 Frames/sec and eSports gaming with up to 90 Frames/sec and with all new compute units you can expect even higher levels of performance and optimised visual effects such as volumetric lighting, blur effects and multi-level cache hierarchy for reduced latency and faster response times. This beast houses a truly outstanding dual-fan cooling system allowing you all the power but none of the noise sounds great right? This is accelerated gaming customised for you.

2304Stream Processors

6GBGDDR6 Memory

1660 MHzCore Clock

1750 MHzBoost Clock

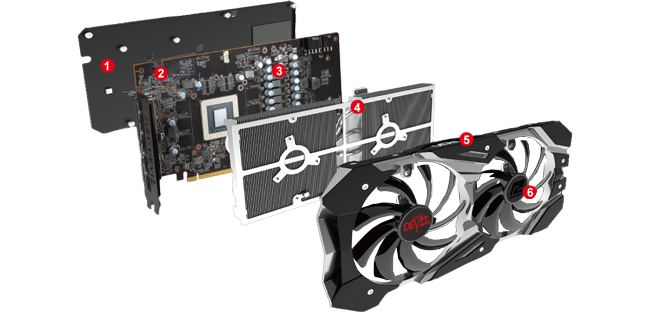

Take a Look Inside

Image to show Graphics Card in full

1.Backplate1.5mm thick metal backplate is super tough to prevent PCB flex and internal components as well as providing more effective heat dissipation

2. Dual BiosChoose the BIOS that fits your needs, better overclocking or silent operation.

3. Stronger components, Better performanceDr. Mos provides superior power efficiency and offers better thermal protection whilst high-polymer capacitors offer superb reliability. the red devil is built for true gamers.

4. 6mm Copper HeatpipesThe PowerColor RX5600 XT Red Devil is equipped with four 6mm copper heatpipes and 10% more heat-sink surface area to guarantee cooler and quieter performance.

5. RGBWith RGB lighting featured on both the shroud and backplate the red devil offers a plethora of ways for you to customise and personalise your GPU

6. Dual 100mm Fan DriveIncreased air flow and longer circulation with static pressure optimised fans

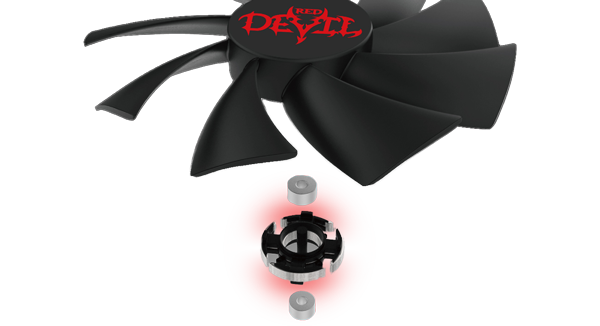

Dual Ball Bearings

Dual Fan Bearings

Up to 4x Greater Longevity The RX5600 XT Red Devil is bringing you a dual bearing system in the cooling fans to make sure they run for as long as possible.

Keep it Quiet!

Zero DB Fan System

0DB - Silent Gaming Mute Fan Technology intelligently turns of the fan below 60°C providing silent gaming when under a medium or decreased load, once the load increases and the temperature rises above 60°C under a high load the fans will start to spin increasing the longevity of the fans and also keeping your PC is imperative to climbing up those ranking ladders.

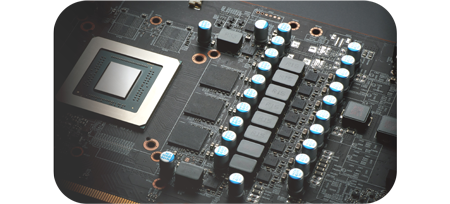

Platinum Power Kit


DrMos Powercolor are bringing a highly efficient power module to their RX5600 Red Devil GPU featuring a digital controller and super capacitors for improved reliability, superior power efficiency, better thermal protection and 8 phases of PWM to guarantee better and more stable overlocking making this card perfect for modding enthusiasts and pro gamers.

Just a Simple Flick of a Switch

Dual-bios ready

Dual-Bios The Red Devil comes with a dual bios setting, simply flick the switch to choose the mode that suits your needs. Silent mode brings you quiet gaming whilst OC mode will push your card to the MAX!

Lower Temperatures Bring you Better Performance

Image to show heatsink

More Fins, More Surface AreaUsually less is more, not in this case, the Red Devil RX 5600 XT increases the amount of fins located on the heat-sink with a larger surface area for better heat dissipation. The best part is PowerColor have also added four 6mm heat pipes to guarantee lower temperatures and supreme performance.

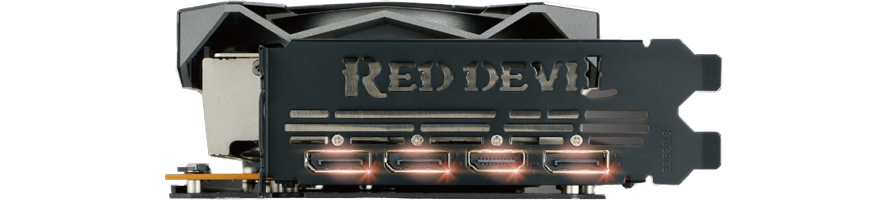

No Flashlight Needed

=LED Output Ports

Output LEDS Light The WayForget the flashlight, the Red Devil RX5600 XT from PowerColor features LED illuminated Ports allowing you to easily spot where you're output leads are supposed to be, get yourself up and running FAST!.

Brand New RDNA Architecture with 7nm Process

RDNA Navi Architecture

Reduces latency and provides higher bandwidthPowered by the groundbreaking 7nm RDNA architecture with Radeon™ Image Sharpening and Radeon™ Anti-Lag technology, Radeon RX 5600 XT GPU delivers extremely efficient, ultra-responsive, high-fidelity gaming for immersive explosions, physics, and lighting effects, bringing realism to life. Take your gaming experience to the next level. You can experience stutter-free, tear-free gaming, reduced input latency and day-0 drivers optimized for new game releases.

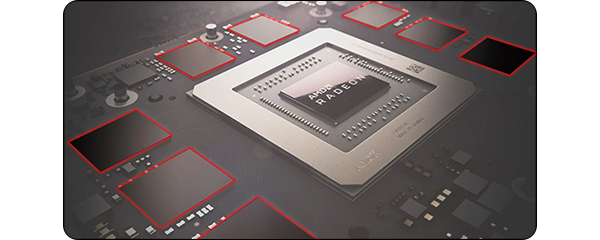

Featuring GDDR6 Memory and Compatiblity with PCIe 4.0

amd gddr6 4.0

Super-fast performance for todays demanding titlesEquipped with 6GB of advanced GDDR6 memory to provide high bandwidth of up to 224 GB/s, enabling 1080p performance for today’s most demanding games. Radeon RX 5600 XT features PCI® Express 4.0 support, which enables two times the bandwidth compared to PCI Express 3.0. Get ready for the next generation of PC gaming.

High Fidelity Graphics When you Need it Most


Fidelity FXThe AMD Radeon™ RX 5600 XT graphics card powers high fidelity gaming for immersive explosions, physics, and lighting effects,bringing realism to life. High-performance RDNA architecture was engineered to greatly enhance features like FidelityFX, Radeon™ Image Sharpening,and Integer Display Scaling for maximum performance and beautiful gaming experiences.

High performance, High Resolution

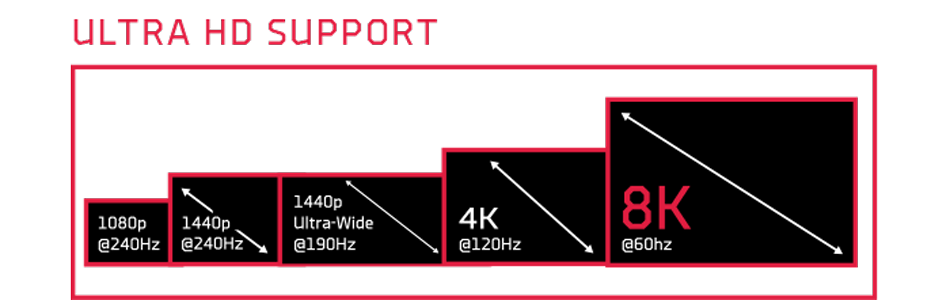

Ultra HD Support

Ultra HD Support The RX 5600 XT GPU is built for high-performance and high resolution gameplay. Experience smooth gameplay performance at 1080p.With support for 8k you are ready for Next-Gen displays. See everything in mind blowing detail without sacrificing performance.

Intuitive Gaming Features

AMD Adrenalin 2020

Adrenalin 2020AMD Radeon™ Software Adrenalin 2020 Edition gives you more control over your gaming experiences. The software's intuitive interface enables players to stream, share and tweak graphics settings in real-time without missing a second of the action or compromising in-game performance.

AMD VR Premium

AMD VR Ready Premium Experience the new generation of compelling Virtual Reality content with the Radeon™ graphics card paired with the leading VR headsets. The Radeon™ card coupled with AMD LiquidVR™ technology delivers a virtually stutter-free, low latency experience, essential for remarkable Virtual Reality environments. Industry leading innovation and powerful performance enables the Radeon™ to deliver premium experiences on high-end VR games, entertainment, and applications.

AMD Eyefinity

AMD Eyefinity TechnologyExpand your territory and customize your field of vision. Connect up to six displays on a single GPU for dynamic, panoramic multi-screen gaming. You’ll get an expansive experience that’s truly out of sight. (additional displays may require the use of MST hub). ‍

AMD Graphics Card Specifications

AMD Radeon RX Card Specifications
Model RX 5700 XT RX 5700 RX 5600 XT RX 5500 XT RX 590 RX 580 RX 570 RX 560 RX 550
Architecture RDNA RDNA RDNA RDNA GCN 4th GCN 4th GCN 4th GCN 4th GCN 4th
GPU Navi 10 Navi 10 Navi 10 Navi 14 Polaris Polaris XTX Polaris 20 Pro Baffin Baffin
Stream Processors 2,560 2,304 2,304 1,408 2,304 2,304 2,048 896/1024 512/640
Reference Base Clock 1,605 MHz 1,465 MHz 1,420 MHz 1,607 MHz 1,469 MHz 1,257 MHz 1,168 MHz 1,175 MHz 1,287 MHz
Reference Boost Clock 1,905 MHz 1,725 MHz 1,620 MHz 1,845 MHz 1,545 MHz 1,340 MHz 1,244 MHz 1,275 MHz 1,287 MHz
Memory Controller 256-bit 256-bit 192-bit 128-bit 256-bit 256-bit 224-bit 128-bit 64/128-bit
TDP 225W 225W 160W 130W 225W 185W 150W 60-80W 50W
Key Specifications
Chipset Radeon RX 5600 XT
Edition Red Devil
Manufacturing Process 7 nm
Microarchitecture RDNA
Cores & Clocks
Streams 2304
Core Clock 1660 MHz
Boost Clock 1750 MHz
Video Memory (VRAM)
Memory Size 6GB
Memory Type GDDR6
Memory Clock 14000 MHz
Memory Speed (Effective with DDR)
Memory Bus 192 Bit
Memory Bandwidth
Memory Data Rate
Cooling Solution Dual Fan (2)
Cooler Design PowerColor Red Devil Cooler
Fitted/Included Backplate Yes
I/O & Connectivity
Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
  • 3 x DisplayPort
  • 1 x HDMI
AMD CrossFire Support Supported
AMD Freesync Support Yes
AMD FreeSync Version FreeSync™ 2 HDR
HDR Support Yes
Microsoft DirectX Support 12 API
Max. Concurrent Displays 4 Displays
Maximum Digital Resolution 7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution
Compute Performance
Peak Half Precision Compute Performance (FP16)
Peak Single Precision Compute Performance (FP32)
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors
  • 1 x 6-pin PCIe
  • 1 x 8-pin PCIe
Graphics Card TDP/Power
Minimum Recommended PSU 500 W
Maximum GPU Temperature
Width 2.5 Slot
Low Profile Support
Package Type Retail
Additional Information
Scan Code LN104638
Model Number AXRX 5600XT 6GBD6-3DHE/OC
GTIN 4713436172222

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
24 months
