Design and technology are the main points which make the difference in the watercooling sector. Many manufacturers are trying to combine excellence in both sector, but only few succeed. Phobya has managed to combine features which are unique in the watercooling sector.

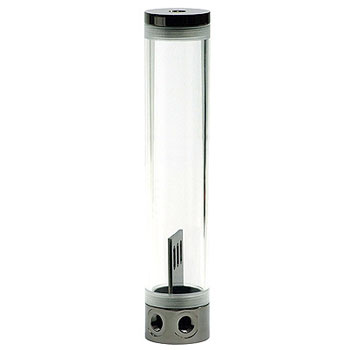

The top and bottom are made from solid metal and combined with a transparent tube made from Plexi. Shining gold plating, silver or a black nickel finish are the first available colours. The reservoirs are available in 150mm, 250mm and 450mm length, allowing use in virtually any case size.
The reservoir is shipped with two black mounts with safety latch. These mounting clips have a foam plastic sheet at their inside to protect the Plexi of the reservoir.
Versatility and functionality were a great factor when designing this reservoir. You will notice the large number of connection threads, two at the bottom and two at the side of the bottom piece, which allows a great variety of mounting possibilities. The threads at the side especially make horizontal installation of the reservoir easily possible, giving you a whole array of new possibilities. The fifth connection thread in the top piece can be used as an In- our outlet when installed horizontally or for connection of a Fillport etc. Another possibility is to equip the unused threads with lighting modules to shine a whole new light on your reservoir!
Of course an ''Anti-cyclone'' was integrated. This separating plate prevents vortexing inside of the reservoir and also prevents stronger pumps to suck in air bubbles from the inlet.
Of course all connection threads in the reservoir are 1/4" in size. Thee nickel plated screw plugs are included for the unused threads. Both bottom and top piece may be removed for cleaning of the tube. All mounting material is also included!
Features Technical specifications:
Material: Brass, Plexi
Colour: Black nickel coated
Dimensions (DxH): 50 x 250mm
Connection threads: 4x1/4" in bottom piece, 1x1/4" in top piece
Weight: 816g + 2x 30g mounting clamps
Pressure tested: 2 bar
