Panasonic Lumix DC-BS1H Full Frame Camera

Panasonic Lumix DC-BS1H Full Frame Box Camera, 35mm Full Frame CMOS, 6K24p, Dual ISO, 10bit, RTP/RTSP Streaming, L Mount

Thumbnail 1 : Panasonic Lumix DC-BS1H Full Frame Camera Thumbnail 2 : Panasonic Lumix DC-BS1H Full Frame Camera Thumbnail 3 : Panasonic Lumix DC-BS1H Full Frame Camera Thumbnail 4 : Panasonic Lumix DC-BS1H Full Frame Camera
Scan code: LN120516 Manufacturer code: PAN-DC-BS1HE
£2,998.80Item due on 16 November 2021
Due 16th Nov
FREE DELIVERY ON YOUR ENTIRE BASKET
With a 10% deposit from just £74.90 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Panasonic - 'Lumix DC-BS1H Full Frame Box Camera'

Panasonic Lumix DC BS1H Full Frame 35mm Box-Style Camera

Unbox your creativityThe LUMIX BS1H is a versatile box-style camera that features the cinema-quality video performance of the LUMIX S1H in an easy-to-deploy profile. The BS1H contains a 24.2MP 35mm full-frame CMOS sensor with Dual Native ISO technology that captures 6K resolution at maximum ISO 51200. Maximizing the use of the pixels in the full-frame image sensor, the LUMIX BS1H is capable of 6K/24p, 5.4K/30p (3:2) or 5.9K/30p (16:9) high-resolution, smooth video recording. It also provides 10-bit 60p 4K/C4K* HEVC video and 4:2:2 10-bit 4K30p in H.264 recording modes. The BS1H provides 14+ stops of dynamic range in V-Log which is as wide as those of cinema cameras and V-Log / V-Gamut compatible with popular calorimetry called “VariCam Look.”

35mm Full-Frame

Panasonic Lumix DC BS1H Full Frame 35mm Box-Style Camera

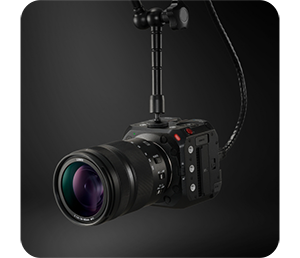

Box-Style Live & Cinema Full-frame CameraA full-frame sensor and 6K 24p video recording performance condensed in a surprisingly compact box-style for everything from live streaming to multi-camera control and shooting using a gimbal or drone. A device that will innovate the video production workflow.

Dual Native ISO

Panasonic Lumix DC BS1H Full Frame 35mm Box-Style Camera

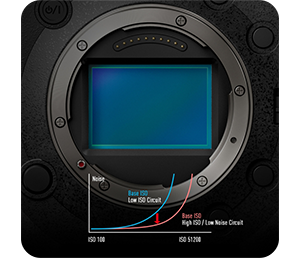

24.2MP full-frame sensor with
Dual Native ISO technology
The 24.2-megapixel full-frame CMOS sensor delivers high sensitivity and top image quality in both still photos and videos. Dual Native ISO technology further enhances video performance.

6K 24p 4:2:0 10-bit

Panasonic Lumix DC BS1H Full Frame 35mm Box-Style Camera

6K video recording performance and
multiple recording modes
Equipped with 6K 24p 4:2:0 10-bit (3:2) and 5.9K 30p/25p/24p 4:2:0 10-bit in addition to C4K/4K 60p/50p* 4:2:0 10-bit, C4K/4K 30p/25p/24p 4:2:2 10-bit and anamorphic 4K recording. Meets the diverse video production needs of professionals with a wide array of recording modes.

*In S35mm and PIXEL/PIXEL settings.

Unlimited Recording

Panasonic Lumix DC BS1H Full Frame 35mm Box-Style Camera

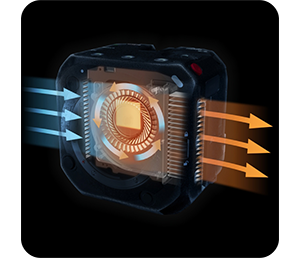

Heat management = unlimited recordingThe LUMIX BS1H realizes unlimited video recording in all modes. The rise in the camera’s temperature can be suppressed with the cooling fan and can be used for an unlimited time within the guaranteed operating temperature range.

Built-in LAN Connectivity

Panasonic Lumix DC BS1H Full Frame 35mm Box-Style Camera

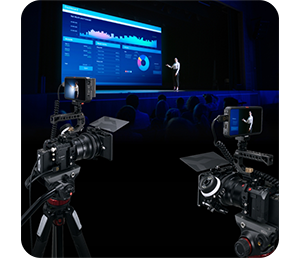

Flexible expandability with
wired LAN connection
• Remote control with LUMIX Tether for Multicam enabled by Ethernet cable.
• Ethernet / PoE+ compatible camera
• IP streaming with PC (RTP/RTSP protocol)
• Simultaneous SDI/HDMI output
• Genlock IN and Timecode IN/OUT

Dual Recording Support

Panasonic Lumix DC BS1H Full Frame 35mm Box-Style Camera

Simultaneous internal/
external recording supported

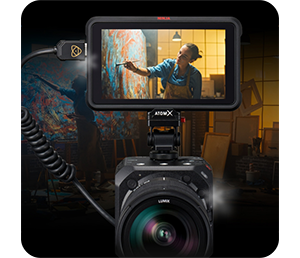

Simultaneous 6K 24p 4:2:0 10-bit (3:2) / 5.9K 30p/25p/24p 4:2:0 10-bit (16:9) internal recording and 4K 4:2:2 10-bit HDMI Live Output external recording are supported.

12-bit RAW Over HDMI

Panasonic Lumix DC BS1H Full Frame 35mm Box-Style Camera

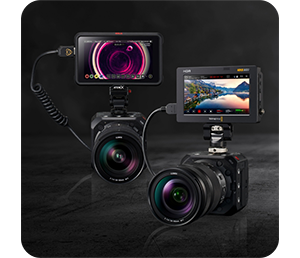

RAW video data outputThe LUMIX BS1H enables the output of maximum 29.97p 5.9K (5888x3312, 16:9) / 59.94p 4K (4128x2176, 17:9) and Anamorphic 3.5K (3536x2656, 4:3) 12-bit RAW video data over HDMI to save it as Apple ProRes RAW on the Atomos Ninja V 4K HDR monitor-recorder.* The Blackmagic RAW can also be recorded on Video Assist 12G HDR.**


For the full camera specifications please refer to the full Panasonic spec cheet Here



Please Note*[Apple ProRes RAW] ・Selectable recording mode depends on the firmware version of Atomos Ninja V. ・Please refer to the Atomos website for the information on the corresponding firmware version of Atomos Ninja V. ・Software that supports Apple ProRes RAW is required to edit RAW video recorded with NINJA V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ ・All functions may not be available depending on the situation.

**[Blackmagic RAW] ・Selectable recording mode depends on the firmware version of Video Assist 12G HDR. ・Please refer to the Blackmagic website for the information on the corresponding firmware version of the Video Assist 12G HDR. ・DaVinci Resolve or DaVinci Resolve Studio is required to play back the Blackmagic RAW data. DaVinci Resolve Studio is required to edit the Blackmagic RAW data. ・All functions may not be available depending on the situation.

**[Blackmagic RAW] ・Selectable recording mode depends on the firmware version of Blackmagic Video Assist 12G HDR. ・Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR. ・DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160. ・All functions may not be available depending on the situation.

Specifications
Megapixel 24.2 (Effective)
Video Resolution
  • 1920x1080
  • 4096x2160
  • 5376x3584
  • 5952x3968
Max Photo Resolution (3:2) 6000x4000
Framerate
  • 24
  • 25
  • 30
  • 50
  • 60
Shooting Modes
File Format
  • MOV
  • MP4
Input/Output
  • 3.5mm Jack
  • HDMI Out
  • SDI Out
Dynamic Range 14+ Stops
Sensor Type 35mm Full Frame CMOS
Aspect Ratio
  • 16:9
  • 17:9
  • 4:3
Storage
  • SD UHS-I
  • SD UHS-II
  • SDHC
  • SDXC
Built-in Display No
Weight 585 g
Dimensions 93 x 93 x 78.8 mm WxHxD
Additional Information
Scan Code LN120516
Model Number PAN-DC-BS1HE
GTIN 00
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
