Scan code: LN105661 Manufacturer code: PAN-AWUN70WEJ

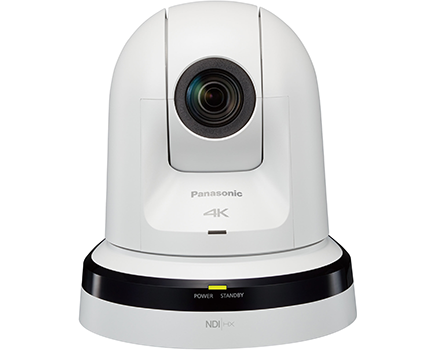

Panasonic 4K Professional PTZ Camera with NDI in White

Panasonic AW-UN70 4K PTZ Camera with NDI, White, 20x Zoom, 1/2.3-Type MOS, POE+

Scan code: LN105661 Manufacturer code: PAN-AWUN70WEJ
£4,452.49Item currently awaiting an ETA
Pre order
From £121.61 / month (APR 14.9%)
Monthly Payment: £399.72
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £4,452.49
Total inc. interest: £4,796.55
Monthly Payment: £213.72
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £4,452.49
Total inc. interest: £5,129.10
Monthly Payment: £152.11
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £4,452.49
Total inc. interest: £5,475.94
Monthly Payment: £121.61
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £4,452.49
Total inc. interest: £5,836.87
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Panasonic AW-UN70 - 4K PTZ Camera with NDI®|HX in White

panasonic aw-un70 4k ptz camera white

SHOOT A REVOLUTIONARY BROADCAST Stream in beautiful quality with thw AW-UN70 from Panasonic, the professional PTZ camera. Take advantage of a stunning 4K resolution which will allow you to shoot with the finest detail. Everything you need to take your live productions to the next level is inside the AW-UN70. This impressive device is the key to industry-leading pan/tilt/zoom 4K IP streaming and in-camera 4K recording. It offers 3840 x 2160 resolution images at 29.97p/25p via HDMI, and is able to do it via IP streaming or in-camera. Utilise key production-orientated features such as genlock, Optical Image Stabilization (O.I.S) and remote switchable ND filters.

20xOptical Zoom

30xi.Zoom

12xDigital Zoom

1/2.3"MOS Sensor

1300 LinesHorizontal Resolution

It's all About the Image

four drive lens system

IMPRESSIVE LENS OPERATION The AW-UN70 features an all-new 1/2.3-type MOS sensor and DSP (Digital Sound Processor) to offer high sensitivity and high resolution up to UHD/30p. Using a four-drive lens system, three zoom lenses and one focus lens, this impressive device achieves a smaller body and an intuitive zoom mechanism, that provides high magnification and stunning image quality. The lens system means all the lenses inside are driven independently and simultaneously to create the AW-UN70. The camera has a high-resolution 20x optical zoom and a high-performance iA 22x zoom (4K mode). Built-in optical image stabilization excels in vibration caused by wind, subwoofers/loudspeakers, ventilation systems, and more.

Broadcast & Production Ready

SUPERIOR SHOOTING QUALITY Introducing broadcast/production oriented feature-sets including a motorized ND filter wheel for varied lighting environments. The AW-UN70 also offers 3G SDI for up to 1080/59.94p output, external sync (genlock) and more. Even for HD usage, a higher image quality is achieved with a higher quality lens system which has more accurate focus tracking and evenness throughout every image.

Versatile, Smooth & Lightweight

degrees of tilt and rotation

PERFECT MOVEMENT IN A COMPACT FORM The pan range of ±175° and the tilt range of -30° to +90° cover a wide shooting area. The pan and tilt functions operate at a maximum speed of 90°/second and respond quickly to remote control operation. Enjoy super-quiet operation at a sound level of NC35 or lover. Stored on your AW-UN70 camera are up to 100 preset positions and camera settings, which is more than enough for the most demanding large venue installation. This camera is only a lightweight 3.3lbs, and consumes just over 15.6 watts at 12 VDC.

Utilise Professional Interfacing

outputs and recording

Video outputsStandard professional interfaces include HD/SD-SDI, HDMI, as well as IP/Network for single cable delivery of high-quality content up to 1080/60p.

USB/MICROSD CARD RECORDINGThe mini-USB connector lets the camera be used as a USB camera. Apps that connect to USB cameras will be able to connect to the UN70 without external converters. MicroSD recording enables ISO MP4/H.264 recording internally in the UN70, transfer of content over the network via a web browser or FTP.

SERIAL CONTROLRS-422 compatibility is available for serial-based workflows (i.e. connection to AW-RP50/120 or previous controllers). RS-232 and RS-422 VISCA protocol are available when introducing a Panasonic camera into an existing control structure.

Network Connected: The LAN port on the UN70 unleashes the possibilities

Power of Ethernet+ (PoE+) for easier system installation and setup.
Control the camera via the network with an AW-RP50/120 hardware controller or Panasonic software solutions.
Access the built-in web interface to monitor and control all aspects of the camera.
Utilize a supported third-party control system from broadcast control systems, switchers, lecture capture systems, AV Control system and more.
By default, the camera has a built-in H.264/MJPEG encoder for 7 channels of encoding up to 25Mbps. Pair with a supported hardware or software decode.
Built-in NDI®|HX (a technology of NewTek Inc.) for the ultimate single cable production workflow with Ultra-low latency video, audio, control, tally, and power over a single cable.

Flexible Installation & Mounting

outputs and recording

Blend-inThe camera is exceptionally easy to integrate and is available in two colors (-W: pearl white and -K: black matte) to suit a wide range of applications.

ceiling mount A twist-lock ceiling mount is included as a standard accessory.

tripod mountThe UN70 is also equipped with a 1/4-20 tripod mounting screw receptacle and a safety lanyard for use with many mounting and grip systems.

wall mountAn optional heavy-duty wall mount is available in either black (FEC-40WMK) or white (FEC-40WMW).

Explore the World of NDI®|HX PTZ

ndi recording

THE ULTIMATE RECORDING TECHNOLOGYUnravel the power of NDI® with Panasonic's impressive lineup of professional PTZ cameras. The N-Series models now offer built-in support of NDI® via a highly efficient NDI®|HX mode, which requires no external conversion of any kind.

REDUNDANCYProduction workflows are mission critical. Introduce redundancy to your workflow by utilizing NDI®|HX and baseband video (HDMI and/or HD-SDI) simultaneously.

MULTICASTPanasonic cameras with NDI®|HX support multicast, meaning you don’t utilize extra bandwidth when multiple clients access the stream.

SINGLE CABLEAll the functionality of conventional connections is now practical through the use of PoE+. Via a single cable, you'll get power, control, ultra-low latency video, and tally. And, thanks to NDI®, automatic camera discovery makes it all come together.

AUDIO INPUTThe HN40H features a TRS-mini stereo audio input for embedding audio into the NDI® feed.

NDI®: Network Device Interface, a technology of NewTek, Inc.

Specifications
Mega Pixel
Resolution (Still Image)
Resolution (Video) 1920x1080 (Full HD)
Live Video Frame Rate
Zoom
  • 1 x Digital
  • 1 x Optical
LCD Display No
Sensor Type 1/2.3-type MOS Sensor
Dynamic Range
Connectivity
  • 3G-SDI Out
  • HDMI
Onboard Memory
Storage Type
Image Formats Supported
Video Formats Supported
Shooting Modes
Weight 1500 g
Dimensions 160 x 186 x 179 (WxHxD mm)
Colour White
5.1 Sound No
Additional Information
Scan Code LN105661
Model Number PAN-AWUN70WEJ
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
