Scan code: LN105659 Manufacturer code: PAN-AWHN40HWEJ

Panasonic Full HD PTZ Camera with NDI in White

Panasonic AW-HN40H Full HD PTZ Camera with NDI|HX, White, 30x Zoom, 1/2.3-Type MOS

Scan code: LN105659 Manufacturer code: PAN-AWHN40HWEJ
£3,000.49Item currently awaiting an ETA
Pre order
From £70.12 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £257.90
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £3,000.49
Total inc. interest: £3,094.70
Monthly Payment: £132.64
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £3,000.49
Total inc. interest: £3,183.38
Monthly Payment: £90.94
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £3,000.49
Total inc. interest: £3,273.66
Monthly Payment: £70.12
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £3,000.49
Total inc. interest: £3,365.67
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £74.94 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

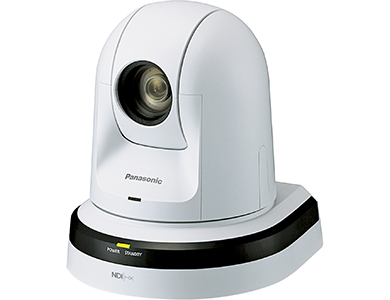

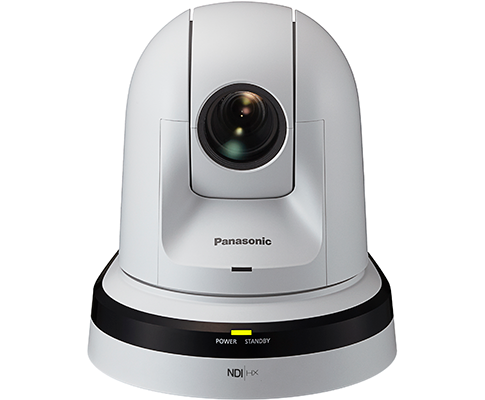

Panasonic AW-HN40H - A Full HD PTZ Camera in White

panasonic aw-hn40h hd ptz camera with ndi white

WITH INNOVATIVE NDI TECHNOLOGY The AW-HN40HWEJ is the white edition camera from Panasonic's AW-HN40 PTZ series. This versatile recording device has been designed to offer great video results in a variety of applications that require high-quality video and precise control. Whether it's conference video, event capture, staging, distance learning or houses-of-worship, with accurate 30X optical zoom lenses, wide field of view, smooth PTZ (Pan, Tilt, Zoom) functions and stunning image quality. HN40 cameras are perfect for fast-paced remote production and IMAG use. It uses IP-Preview transmission and control, and offers support for PoE+ (which allows power to be supplied through a LAN cable), the HN40 also provides the flexibility needed for super-easy installation and management, making it the ultimate tool for video enthusiasts.

30xOptical Zoom


1/2.3-TypeMOS Sensor

1000 LinesHorizontal Resolution

It's all in the Optics

wide side

Wide Side (31.66mm)

30x zoom

Telephoto side (962mm)

40x zoom

Super Resolution (i Zoom)

INCREDIBLE ZOOM AND VISUAL FUNCTIONS Along with a 30x optical zoom, the AW-HN40H camera also offers an intelligent zoom feature up to 40x and a 1.4x digital extender to capture sharp close-ups in the largest of auditoriums and lecture halls. This impressive video camera delivers an impressive signal-to-noise ratio of 54dB (F4/2000lx, minimum illumination, 35 lx), 1000 TV lines of resolution and 16-axis colour matrix control for impeccably accurate camera "painting" and matching. The HN40 offers a wealth of innovative standard features that have been developed to extend the capabilities of professional video system users. As well as Panasonic's Dynamic Range Stretch (DRS) and advanced Digital Noise Reduction (DNR), an smart High Dynamic Range (HDR) mode allows you to capture beautiful video offers perfect colour even in extreme contrast and lighting conditions.

*Images are simulated.

Take Stunning Footage in the Dark

night mode recording

HN40 NIGHT MODE The AW-HN40H camera allows you to shoot footage in almost total darkness. You can switch modes to capture high-quality, HD monochrome video with the use of an (optional) IR illuminator in the 850mm range, making the camera a perfect tool for reality show production, wildlife footage, sleep lab research and staging support.

Versatile, Smooth & Lightweight

functions, dimensions and weight

EASY TO USE IN ANY ENVIRONMENT The pan range of ±175° and the tilt range of -30° to +90° on the AW-HN40H covers a wide shooting area. The pan and tilt functions operate at a maximum speed of 90° per second and respond quickly to remote control commands. They operate quietly at a sound level of NC35 or lower. Stored on the camera are up to 100 preset positions and camera settings, so you can get the perfect shot even in the most demanding of settings. The camera itself only weights 3.3 lbs, and consumes just over 14.4 watts at 12 VDC.

Stay Connected and Tuned-In

functions, dimensions and weight

VIDEO OUTPUTSStandard professional interfaces feature HDMI, as well as IP/Network for single cable delivery of high-quality content up to 1080/60p.

SERIAL CONTROLRS-422 serial compatibility is available for serial-based workflows. RS-232 and RS-422 VISCA protocol is available when introducing a Panasonic camera into an existing control structure.

AUDIO INPUTAudio input and embedding (on IP, HDMI) are also available through a switchable, stereo MIC/LINE input.

USB or MICROSD CARD RECORDINGThe mini-USB connector lets the AW-HN40 camera be used as a USB camera and utilizes standard USB video/audio class drivers. Many applications that connect to USB cameras, like teleconferencing or software switching solutions, will have the ability to connect to the HN40 without external converters. Additionally, microSD recording enables ISO MP4/H.264 recording internally in the camera, transfer of content over the network via a web browser or FTP.

Network Connected: The LAN port on the HN40 unleashes a wealth of possibilities.

Power of Ethernet+ (PoE+) for easier system installation and setup.
Control the camera via the network with an AW-RP50/120 hardware controller or Panasonic software solutions.
Access the built-in web interface to monitor and control all aspects of the camera.
Utilise a supported third-party control system from broadcast control systems, switches, lecture capture systems, AV Control systems and more.
By default, the camera has a built-in H.264/MJPEG encoder for 7 channels of encoding up to 25Mbps. Pair with a supported hardware or software decoder.
Built-in NDI®|HX (a technology of NewTek Inc.) for the ultimate single cable production workflow with ultra-low latency video, audio, control, tally, and power over a single cable.

Flexible Installation and Mounting

mounting and installation

BLEND-INThis camera is incredibly easy to integrate and is available in two colours (pearl white and matte black) to suit a wide range of environments.

Ceiling mountA twist-lock ceiling mount is included as a standard accessory.

TRIPOD MOUNTThe HN40 is equipped with a 1/4-20 tripod mounting perfect for mobile production.

WALL MOUNTAn optional heavy-duty wall mount is available in either black or white.

Explore the World of NDI®|HX PTZ

ndi recording

THE ULTIMATE RECORDING TECHNOLOGYUnravel the power of NDI® with Panasonic's impressive lineup of professional PTZ cameras. The N-Series models now offer built-in support of NDI® via a highly efficient NDI®|HX mode, which requires no external conversion of any kind.

REDUNDANCYProduction workflows are mission critical. Introduce redundancy to your workflow by utilizing NDI®|HX and baseband video (HDMI and/or HD-SDI) simultaneously.

MULTICASTPanasonic cameras with NDI®|HX support multicast, meaning you don’t utilize extra bandwidth when multiple clients access the stream.

SINGLE CABLEAll the functionality of conventional connections is now practical through the use of PoE+. Via a single cable, you'll get power, control, ultra-low latency video, and tally. And, thanks to NDI®, automatic camera discovery makes it all come together.

AUDIO INPUTThe HN40H features a TRS-mini stereo audio input for embedding audio into the NDI® feed.

NDI®: Network Device Interface, a technology of NewTek, Inc.

Mega Pixel
Resolution (Still Image)
Resolution (Video) 1920x1080 (Full HD)
Live Video Frame Rate 59.94 fps
  • 1 x Digital
  • 1 x Optical
LCD Display No
Sensor Type 1/2.3 type MOS Sensor
Dynamic Range
  • Audio In
  • HDMI
  • LAN
  • USB
Onboard Memory
Storage Type
Image Formats Supported
Video Formats Supported
Shooting Modes
Weight 1496.85 g
Dimensions 160 x 186 x 166 (WxHxD mm)
Colour White
5.1 Sound No
Additional Information
Scan Code LN105659
Model Number PAN-AWHN40HWEJ
GTIN 5025232874323
