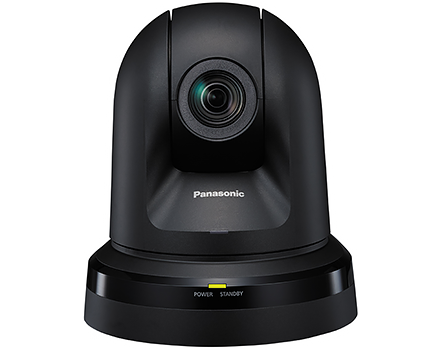

Panasonic AW-HE42 - Full HD PTZ Camera with 3G-SDI Support

panasonic aw-he42k hd ptz camera black

CAPTURE A REVOLUTIONARY BROADCAST The AW-HE42K is a versatile Full HD camera that uses an integrated rotating base that's equipped with 3G-SDI and a wealth of other output connectors. It uses four types of output interfaces and the genlock function which supports smooth large-scale shooting with multiple cameras. The AW-HE42K is perfect for a range of different environments, from recording and broadcasting of lectures, to live streaming at concerts and other events. Utilise the power of high-performance lenses and a bunch of interfaces that support a wide range of live video production environments. In addition to a 20x optical zoom, the AW-HE42K offers intelligent zoom up to 30x, so you can capture sharp close-ups in the largest of settings. It also provides a wider viewing angle of 65.1 degrees, and uses a High Dynamic Range (HDR) function, perfect for shooting under backlit conditions, along with a 1/2.3-type MOS sensor and DSP (Digital Signal Processor) for high sensitivity and high resolution.

20xOptical Zoom

30xi.Zoom

1/2.3-TypeMOS Sensor

1000 LinesHorizontal Resolution

Zoom without Compromising Quality

four drive lens system

FOUR DRIVE LENS SYSTEMYour AW-HE42 camera is equipped with the intuitive Four Drive Lens System, where three zoom lenses and one focus lens are driven both independently but simultaneously. Driving each of these four lenses separately enables reduction in lens size and drive range to achieve a reduced-size body with zoom of high image quality and magnification. Despite the compact size, the AW-HE42 offers optical 20x zoom and incredible, ultra-high resolution 30x intelligent zoom.

Capture even the Finest Details

wide side

Wide Side (29.5mm)

20x zoom

Telephoto side (612mm)

30x zoom

Super Resolution (i Zoom)

HIGH PERFORMANCE ZOOM AND VISUAL FUNCTIONS Along with a 20x optical zoom, the AW-HE24 camera also offers an intelligent zoom feature up to 30x and can still maintain a high resolution. The camera can also be set with 12x digital zoom*, or 1.4, 2.0, 4.0, 6.0 or 8.0 digital extender zoom.

*Picture quality is lower with the digital zoom.
*Images are simulated.

Stabilise Every Take for the Perfect Shot

OPTICAL/FOUR-AXIS HYBRID IMAGE STABILIZER (OIS)Image shake can be reduced with both optical and digital 4-axis automatic stabilization that detects mounting surface vibration that's caused by audio equipment and opening/closing doors.

Record Video even in the Dark

night mode

IMPRESSIVE NIGHT MODE CAPABILITYYour AW-HE42 camera can be switched to Night Mode to make capturing footage possible even in low light conditions. Where shooting is normally difficult, such as observing wildlife or dark areas, this impressive camera makes it easy. It can also be set to switch to Night Mode automatically depending on the surrounding light levels. *Video output is monochrome.

Ideal Lighting for Every Shot you Take

high dynamic range hdr mode

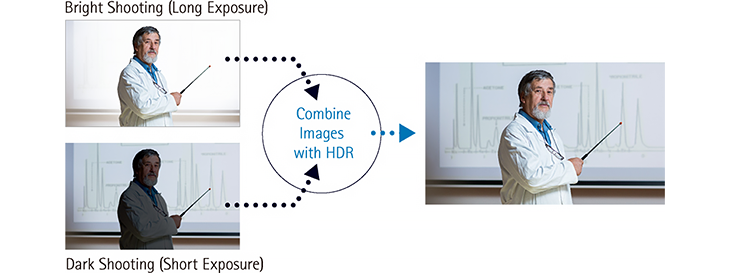

HIGH DYNAMIC RANGE MODEIn addition to conventional Dynamic Range Stretch (DRS) and Digital Noise Reduction (DNR), the AW-HE42K is geared with High Dynamic Range (HDR) mode. While shooting and synthesizing two images with different exposures, your camera can create video with high visibility that corrects for halation and black defects even under backlit conditions.

Create Beautiful Footage with Smooth Movement

freeze during preset function

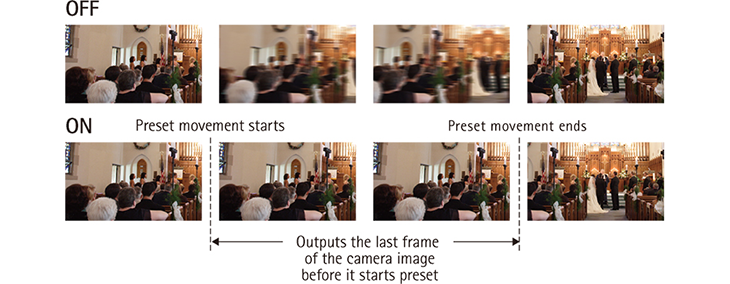

With Freeze During Preset functionThe innovative Freeze During Preset feature allows you to freeze the video during preset playback. The immediately preceding still image is output during preset movements so that the swivelling movement is not displayed, making operations smooth and possible all with one camera.

With Great Visuals comes Great Audio

audio input function

AUDIO INPUT FEATURESThe AW-HE42K supports audio input, embedding and encoding, along with support for audio output to IP. The ALC (Audio Automatic Level Control) in your camera can be switched on or off and an equalizer function can be used. By reducing low-frequency sound from air conditioners, projectors and other noisy devices, it is possible to emphasize and increase the clarity of spoken words.

Control your Camera Remotely

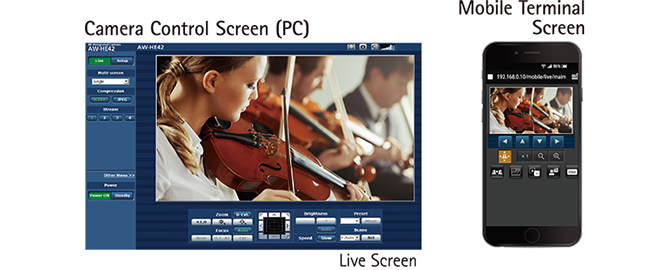

MONITOR FROM ANY DEVICEUsing an IP browser, your AW-HE42 camera can be controlled from a remote location, and IP video monitoring and remote camera can then be controlled from a PC, Mac or smartphone to enable easy operations.

control remotely

Obtain the Greatest Quality for your Footage

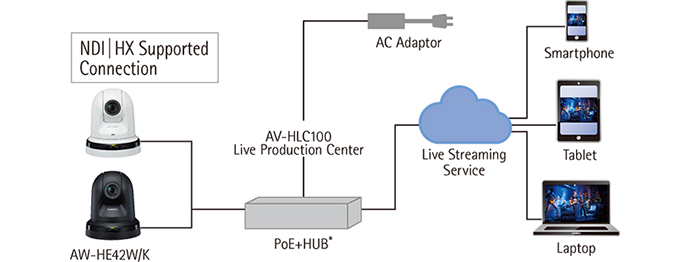

NDI | HX CompatibilityThe AW-HE42 camera can be upgraded to an NDI|HX compatible model if purchasing a license from the 4K/HD Integrated Camera NewTek NDI HX Support Information. Highly efficient NDI|HX compatibility allows excellent broadcast streaming by encoding and transmitting high-quality video in real time. This technology eliminates the need for IP decoders, allowing input to be sent directly to the switcher.

ndi hx compatibility

Versatile ways to Record

full hd video output via ip transmission

FULL HD VIDEO OUTPUT VIA IP TRANSMISSIONIP transmission as well as HDMI, SDI and USB output are supported to enable IP video output of up to 60 frames per second. Multi-streaming output (H.264 streaming) of up to four channels* per camera and video transmission of up to 14 terminals are supported**, enabling a wealth of system layouts as needed for the application.

*1920 x 1080 60fps output is 1ch display only. For 2ch or more, display is max. 30 fps. Also, JPEG output is up to 3ch.
**Depends on your network environment.

Insert Additional Storage for Easy Capture

MICROSD CARD RECORDING FUNCTIONYou can capture video and audio into MP4 format onto a microSD card (sold separately) that can be inserted into the unit. Also, using an IP network, it's possible to externally control recording start/stop and download the recorded files.

1080/59.94p  |  1080/50p  |  1080/29.97p  |  1080/25p
720/59.94p  |  720/50p  |  720/29.97p  |  720/25p

*There may be instances where it is not possible to record in the same format as the output video.

External Sync Signal Input Connector Plus Four Types of Output Connectors

Full HD video output is enabled with HDMI, SDI, USB and LAN. Your AW-HE42 camera is also equipped with an external sync signal* input connector as well as BBS (Black Burst Sync) and tri-level sync. This innovative camera enables flexible system construction ready to handle any purpose or environment.

supported formats with each output connector HDMI
1080/59.94p | 1080/50p | 1080/59.94i | 1080/50i | 1080/29.97PsF
1080/25PsF | 1080/29.97p | 1080/25p | 720/59.94p | 720/50p

SDI
1080/59.94p | 1080/50p | 1080/59.94i | 1080/50 | 1080/29.97PsF
1080/25PsF | 1080/29.97p | 1080/25p | 720/59.94p | 720/50p

USB
1080/30p | 1080/25p | 1080/15p | 1080/12.5p | 1080/5p
720/30p | 720/25p | 720/15p | 720/12.5p | 720/5p
360/30p | 360/25p | 360/15p | 360/12.5p | 360/5p

LAN
For details, please see "List of Supported Multi-Streaming Outputs."

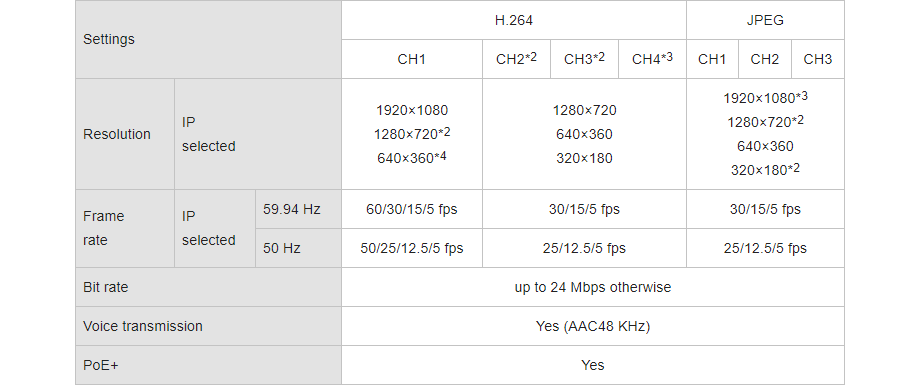

List of Supported Multi-Streaming Outputs (When priority mode “IP” is selected)Full HD video output is enabled with HDMI, SDI, USB and LAN. Your AW-HE42 camera is also equipped with an external sync signal* input connector as well as BBS (Black Burst Sync) and tri-level sync. This innovative camera enables flexible system construction ready to handle any purpose or environment.

LAN connections

*Depending on the output mode, certain restrictions apply.
*2: Settable when HDR is "Off".
*3: Settable when HDR is set to "Off" and the frame rate is other than 60fps (or 50fps).
*4: Not settable when HDR is "Off".

Specifications
Mega Pixel
Resolution (Still Image)
Resolution (Video) 1920x1080 (Full HD)
Live Video Frame Rate 50 fps
Zoom
  • 1 x Digital
  • 1 x Optical
LCD Display No
Sensor Type 1/2.3-type MOS sensor
Dynamic Range
Connectivity
  • 3G-SDI Out
  • Audio In
  • DC In
  • HDMI
  • LAN
  • MicroSD card slot
  • Mini USB
Onboard Memory
Storage Type
Image Formats Supported
Video Formats Supported
Shooting Modes
Weight 1500 g
Dimensions 160 x 186 x 179 (WxHxD mm)
Colour Black
5.1 Sound No
