Palit NVIDIA GeForce GTX 1070 8GB GameRock + G-Panel
Palit GeForce GTX 1070 GameRock + G-Panel 8GB GDDR5 VR Ready Graphics Card, 1920 Core, 1556MHz GPU, 1746MHz Boost
Palit - GeForce GTX 1070 - GPU - GameRock
Palit GameRock GTX 1070
GameRock is a brand new gaming series graphics card. This 1070 is designed for enthusiast gamers who desire the ultimate gaming experience. The GameRock provides a variety of features to help with gaming performance. Besides its great specs it boasts the best thermal solution and tech such as DrMOS for high currents whilst reducing noise and heat generation.
Take on today’s most challenging graphics intensive PC games without missing a beat. The GeForce GTX 1070 graphics card delivers the incredible speed and power of NVIDIA Pascal™ the most advanced GPU architecture ever created. This is the ultimate gaming platform. #GameReady.

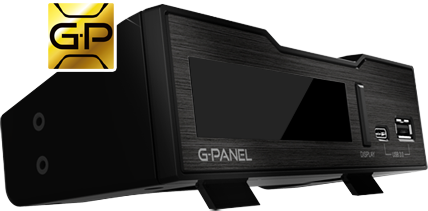

G-PANEL 1070 MONITORING
USB Type-C & 1070 Card Monitoring
The G-Panel is compatible with this GamRock 1070. This added feature has a USB 3.0 (Type-A) and a USB 3.0 Type-C on its front panel along with the LCD VGA card monitoring. Through this 3.12” LCD display you can monitor graphics information, fan speeds, GPU temperature, as well as CPU/GPU/memory.
RGB LIGHTING 1070 DESIGN
LEDs For Styling Your GTX 1070
GameRock 1070 graphics cards feature an RGB LED running along its outter edge. Besides adding more style to your 1070 card and case it can be attuned to have a functional purpose. By utilizing the enormous colour count (16.8 million) this Palit 1070 GPU can show you what temperature it is currently at, by changing LED colour to symbolize various temperatures. On the other hand you could use the glow purely for style preference and personlize your PC.
STYLISH PALIT 1070 BACKPLATE
Enhanced 1070 Card Protection
This 1070 addorns a stylish Backplate that has beend esigned with high protective function in mind. The idea of the Backplate is to prevent damage to the card itself incase it suffers any physical damage. It also boasts the GameRock logo to bring more style to an already well designed GTX 1070.
COPPER BASED 1070
Advanced GameRock GPU Cooling
GameRock graphics cards bring a whole new design to their 1070 that adds an additional 22% more fin along with a large size copper base. The base is directly adhered with the 1070 GPU and heatpipes, making the GameRock 1070 perform a lot better than previous designs.
PALIT GPU PHASE PLUS TECH
Enhanced GameRock 1070 Stability
The 8 phases for those 2560 cores provides unlimited power and minimized current loading for each phase to stabilize the voltage level. This means the overall efficiency of this 1070 from Palit can be improved, the choke noise and EMI noise can also be reduced, for a more immersive experience.
PALIT GPU DUAL BIOS
GameRock 1070 Eradicating Errors
If the GameRock 1070 GPU comes across an error in one of the BIOS programs then it is designed to activate the dual BIOS program automatically. When the program kicks in it’ll allow the Palit 1070 graphics card to be functional again in the event of a system failure.
HONEYCOMB BRACKET GPU DESIGN
Keeping GameRock 1070’s Cool
The design of honeycomb bracket increases the GameRock 1070’s airflow by up to 15%, allowing the heat generated from GPU to be exhausted via the 1070’s honeycomb design bracket. This in-turn enables more efficient cooling effects.
GAMEROCK 1070 ADVANCED COOLING
Graphics Card Cooling When Required
Keep this 1070 gaming card silent while you are experiencing the multimedia application and general workload. The operating fans only occurs while working on heavier loading such as gaming, when this Palit 1070 GPU temperature surpasses 50°C.
GTX 1070 Fan Power
A Dual Fan design offers double the cooling performance, and combined with the 10CM-10CM Smart Fans, heat is effectively drawn away from hot spots of the GTX 1070.
Turbo Palit GPU Fans
Inspired by the power of jet engines, the TurboFan Blade is designed to improve cooling performance by generating a powerful air stream and air pressure to the GPU .
4K RESOLUTION CAPABILITIES
Experience Palit’s 4K Immersion
With HDMI and DisplayPort ports connected to this GameRock GTX 1070, it can provide a flawless, jaw dropping experience at Dual 4K monitors. Revel in detail filled game worlds with Palit’s 1070 GPU and its immense graphic power.
ENHANCED 1070 PERFORMANCE
Pushing the Palit GTX 1070 Further
DrMOS, originally only available for high-end server CPUs but is now available in all its glory in the next generation of Palit graphics cards. DrMOS offers high current circuits, low noise operation, and effective reduction of heat generating.

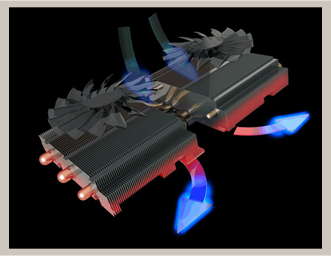

OPTIMIZED 1070 AIRFLOW
Improved 1070 Card Cooling
The 1070 GameRock graphics card features dual fans that rotate in opposite ditrections. This 10CM-10CM Smart Fan system roatates the adjacent fans in different directions to reduce airflow conflicts in the 1070, and effectively improving the overall cooling performance.

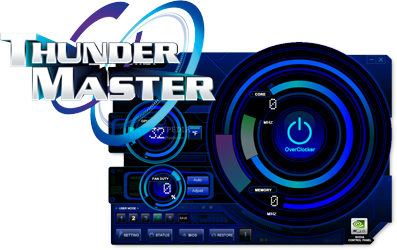

THUNDERMASTER GPU CONTROL
Take Control of the Palit GTX 1070
ThunderMaster is a utility program, used with the GameRock 1070 graphics card under windows. It provides you with the ability to boost this GTX 1070 card and to monitor the GPU information - which will only function correctly in conjunction with your new graphics adapter.
GTX 1070 CONNECTIONS
HDMI 2.0b / 3x DisplayPort 1.4 / Dual-Link DVI
GEFORCE GTX VR READY
GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with "GeForce GTX VR Ready" ensure that your VR games will be optimized with a best-in-class GPU.
Immersive VR requires seven times the graphics processing power of traditional 3D apps and games. NVIDIA's unique set of features - such as multi-res shading - mean you get the right level of performance, image quality, and latency to ensure your VR experience is nothing short of amazing.
|Chipset||GeForce GTX 1070|
|Edition||GameRock + G-Panel|
|Manufacturing process||16 nm|
|Core Clock||1556 MHz|
|Boost Clock||1746 MHz|
|Memory Clock||8000 MHz|
|Memory Bus||256 Bit|
|Cooling Solution||Dual Fan (2)|
|Cooler Design||Palit Dual Fan|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|NVIDIA SLI Support||2-Way SLi with High Bandwidth Bridge Support|
|GeForce GTX VR Ready||Yes|
|Microsoft DirectX Support||12 API with Feature Level 12.1|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Graphics Card TDP/Power||170W|
|Graphics Card Power Connectors||1 x 8-pin PCIe|
|Minimum Recommended PSU||500 W|
|Maximum GPU Temperature|
|Dimensions||133 x 285 mm|
