(Open Box) Zoom - 'LiveTrak L-12' Mixing Desk

(Open Box) Zoom - 'LiveTrak L-12' Mixer, 12 Channel, 8 Mic Pres, 5 Headphone Outs, 14-In /4-Out USB Audio Interface

Thumbnail 1 : (Open Box) Zoom - 'LiveTrak L-12' Mixing Desk Thumbnail 2 : (Open Box) Zoom - 'LiveTrak L-12' Mixing Desk Thumbnail 3 : (Open Box) Zoom - 'LiveTrak L-12' Mixing Desk Thumbnail 4 : (Open Box) Zoom - 'LiveTrak L-12' Mixing Desk
Scan code: LN113647 Manufacturer code: L-12
£462.00Item currently awaiting an ETA
Pre order
With a 10% deposit from just £11.54 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

(Open Box) Zoom - 'LiveTrak L-12'
Mixing Desk

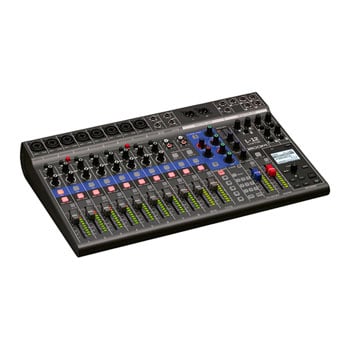

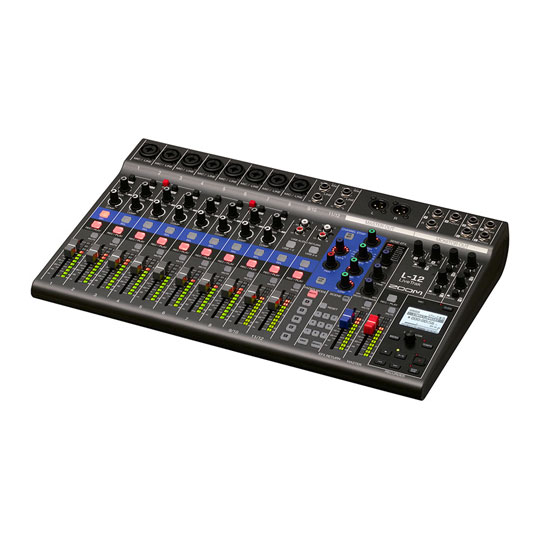

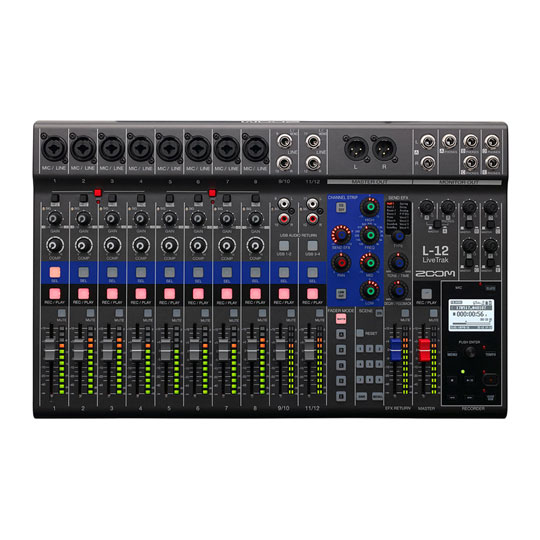

Zoom LiveTrak L-12 mixing desk

Mix, Record, Monitor, Playback & RemixThe Zoom LiveTrak L‑12 mixing desk finally gives you the ability to mix, record, and monitor all using a single piece of equipment. It is the only digital console that lets you mix your live performance and record up to 12 discrete channels, whilst providing five individual custom headphone mixes. LiveTrak’s 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Each of the eight mono channels also feature a dedicated compressor. Thanks to all these controls plus its 12-segment LED metering, the L-12 offers everything you need for easy mixing.

Amazing Features • 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
• Add backing/click tracks from your computer to your live mix and recording
• 5 powered headphone outputs, each with a customizable and saveable mix
• 14-track simultaneous recording, 12-track playback
• 14-in/4-out USB audio interface connectivity

Record & Remix Anywhere

Zoom LiveTrak L-12 mixing desk

Get The Best Results PossibleLiveTrak allows you to record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD card, whilst mixing your live show at the same time.

Tracks are recorded pre-EQ and effects, so they can be transferred to a DAW of your choice for more mixing and editing. Allowing you to take full control and get the best results possible.

5 Custom Monitoring Mixes

Zoom LiveTrak L-12 mixing desk

Enough Volume For Any SettingEach of LiveTrak’s five monitor outputs gives you a unique mix, so every performer can create and save a mix that’s perfectly suited to their preferences.

The headphone amplifier delivers plenty of volume for any live sep up without needing a separate headphone monitoring setup.

Versatile Connectivity Options

Zoom LiveTrak L-12 mixing desk

Unlimited PossibilitiesLiveTrak is also a 14-in/4-out USB audio interface with several routing options, giving you almost unlimited connection possibilities. Class compliant mode allows connection with iOS devices using an Apple Lightning to USB Camera Adapter (not included).

What's Inside The L-12

Zoom LiveTrak L-12 mixing desk

The Best Mic Preamps YetAt -128 dBu EIN with +60 dB maximum input gain, LiveTrak features the quietest and most advanced preamps Zoom have ever made. Resulting in crystal clear, incredible sound.

High-Definition Sample RatesThe L-12 supports sample rates up to 96 kHz when recording to an SD card, so you can record in high definition. In Audio Interface mode, the L-12 can simultaneously record up to 48 kHz to a computer and an SD card.

Convenient Auto RecordingYou can set the L-12’s customizable audio input commands to record automatically, so when the master fader detects a certain dB level, or a guitar chord or snare hit plays to start the recording. You can capture data up to two seconds before recording starts, so you're always prepared ahead of time.

Versatile Operation ModesThe L-12 features several operation modes. Audio Interface allows you to route inputs and outputs to any DAW. With USB Host mode you can transfer projects and audio files to a connected USB flash drive. In Card Reader mode, the L-12 works as an SD card reader, so you can transfer audio files to and from your computer.

Introducing The LiveTrak L-12

The Tech Spec

Features Specification
Type Digital Mixer with USB Interface
Channels 12
Inputs - Mic Preamps 8 x XLR-1/4" combo (mic/line)
Phantom Power 8 channels (1-4,5-8)
Inputs - Line 4 x 1/4" (2 x stereo channels), 2 x Dual RCA Stereo
Inputs - Other 2 x XLR-1/4" combo (Hi-Z)
Outputs - Main 2 x XLR (master), 2 x 1/4" (monitor)
Aux Sends 5 x Monitor
Busses/Groups 1 x FX
Talkback Built-in slate mic
Remote 1 x 1/4" (footswitch control)
USB 1 x Type B, 1 x Type A
Computer Connectivity USB (14 x 4)
Headphones 5 x 1/4" TRS (headphones/monitor)
Faders 10 x channel faders, 1 x EFX return, 1 x Master
A/D Resolution Up to 24-bit/96kHz
EQ Bands 3-band Mid-parametric EQ
Effects 16 effect varations; Reverb, Delay
Signal Processing Compression
Features Save up to 9 scenes, Metronome, Powered headphone outs
Transport Controls Yes
Screen LCD screen
Storage SD/SDHC/SDXC card slot
Power Source 12V DC power supply (included)
Dimensions Height: 2.78"
Depth: 11.1"
Width: 17.5"
Weight 5.58 lbs.
Total Channels 12
Max Mic Inputs 8
Computer Interface
Mixer Type Digital
Computer Interface Channels 14
Total Aux Channels 5
Subgroups 0
Max Line Inputs 12
Analogue Insert Points No
Direct Channel Outputs 0
Internal FX Yes
Flying Faders No
Additional Information
Scan Code LN113647
Model Number L-12
GTIN 4515260018123
