(Open Box) Zoom L-20 Livetrak

(Open Box) Zoom L-20 Livetrak 20-Channel Digital Console, Parametric EQ, 2 EFX Sends, 2 Hi-Z Inputs

Thumbnail 1 : (Open Box) Zoom L-20 Livetrak Thumbnail 2 : (Open Box) Zoom L-20 Livetrak Thumbnail 3 : (Open Box) Zoom L-20 Livetrak Thumbnail 4 : (Open Box) Zoom L-20 Livetrak
Scan code: LN126506 Manufacturer code: L-20 Livetrak
£720.00Item currently awaiting an ETA
Pre order
FREE DELIVERY ON YOUR ENTIRE BASKET
From £23.06 / month (APR 9.9%) or 0% for 4 months
Monthly Payment: £63.13
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £720.00
Total inc. interest: £757.47
Monthly Payment: £33.05
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £720.00
Total inc. interest: £793.22
Monthly Payment: £23.06
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £720.00
Total inc. interest: £830.02
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £17.98 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

(Open Box) Zoom - L-20 Livetrak
20-Channel Digital Console

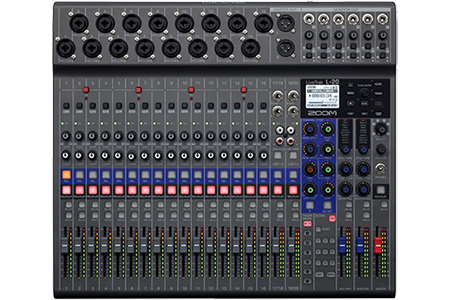

Zoom L-20 Livetrak

MORE BOARD. MORE MUSIC.The Zoom LiveTrak™ L-20 is a modern digital console that provides creators with everything they need to mix, monitor, and record complex productions. Featuring 20 discrete audio channels and six individual custom monitor mixes, The Livetrak L-20 is designed for bigger, bolder arrangements. It comes with 16 mono mic/line inputs and two stereo inputs, each with independent 3-band mid-parametric EQ and the 16 mono inputs offer stand-alone compressor control.

You can easily record 20 discrete channels along with a stereo mix directly to an SD card. The LiveTrak L-20 captures pristine audio in resolutions up to 24-bit/96 kHz. At -128 dBu EIN with +60 dB maximum input gain, the L-20 is equipped with Zoom's quietest and most advanced preamps ever. Mix down finished songs on the L-20 or transfer your discrete tracks to a DAW to perfect later, this console has everything you need and then some!

20Channels

16 x XLR-1/4"Mic Preamps

1 x 1/4"Headphones

at a glance • 20-channel digital mixing console
• 22-track 24-bit/96kHz recording directly to an SD card
• 3-band mid-parametric EQ and 20 built-in effects on each channel
• 22-in/4-out USB audio interface for Mac, PC, or iOS
• 16 combo jacks work for both XLR and 1/4" connectors

Superior Mixing Experience

Zoom L-20 Livetrak

CREATE SIX CUSTOM MONITOR MIXESFeaturing six independent monitor outputs for musicians, each output can have its own custom mix, complete with effects, that can easily be switched from a powerful headphone output, to a balanced line output for stage monitors.

Zoom L-20 Livetrak

AND ONE FOR THE HOUSEThe LiveTrak L-20 includes a dedicated 7th output for the FOH engineer. The sound engineer can monitor the main mix and any of the sub mixes, thus adjusting them to the musicians’ satisfaction.

Zoom L-20 Livetrak

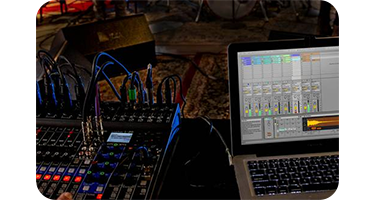

BIG BEAUTIFUL INTERFACEAlthough the LiveTrak L-20 is created to work as a stand-alone recording and mixing console, it also works as a 22-in/4-out USB audio interface. Audio Interface mode lets you route inputs to any DAW or streaming software, even while recording to an SD card. Additionally, audio can be routed from your computer into the L-20 to be mixed with your live performance. Class compliant mode, which allows for connection with iOS devices, is supported as well.

Zoom L-20 Livetrak

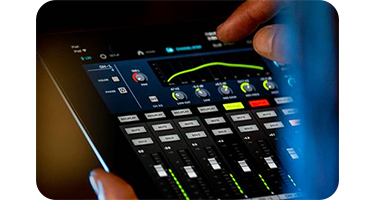

WIRELESS MIXINGThe LiveTrak L-20 offers wireless control using a free iOS mobile app featuring most onboard functions, including Fader Levels and Modes, Scenes, EQ, EFX sends, returns, parameters, and more. You can also manage your Effects Library and Scene Library right from your device. Control it all on either large Monitor Out view with a mini transport, or a mini Monitor Out view with expanded Transport controls.

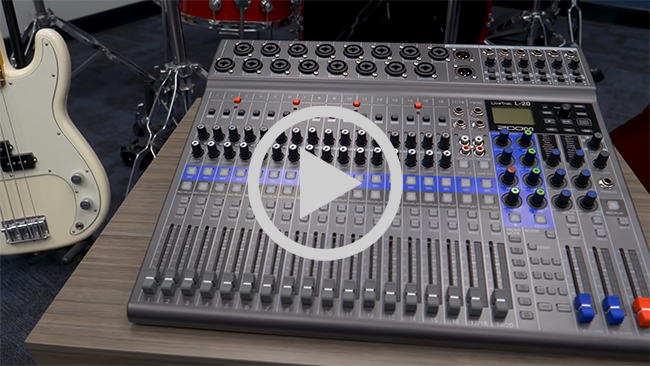

Zoom LiveTrak L-20: Introduction

The Tech Spec

Features Specification
Type Digital Mixer with USB Interface
Channels 20
Inputs - Mic Preamps 16 x XLR-1/4" combo (mic/line)
Phantom Power Yes
Inputs - Line 4 x 1/4" (2 x stereo channels), 2 x Dual RCA Stereo
Inputs - Other 2 x XLR-1/4" combo (Hi-Z)
Outputs - Other 2 x TRS (Monitor)
Outputs - Main 2 x XLR (master)
Outputs - Other 6 x 1/4" (monitor)
Busses/Groups 2 x FX Buses
Talkback Built-in Slate Mic
Headphones 1 x 1/4" TRS
USB 1 x Type A, 1 x Type B
Computer Connectivity USB (22 x 4)
Remote 1 x 1/4" (footswitch control), 1 x Remote Port (BTA-1 adapter)
Faders 18 x channel faders, 2 efx faders, 1 x master
A/D Resolution Up to 24-bit/96kHz
EQ Bands 3-band Mid-parametric EQ
Effects 20 effect variations ; Reverb, Delay, Chorus
Signal Processing Compression (16 channels)
Features 22 recording tracks, 20 playback tracks, 9 scene recall settings
Transport Controls Yes
Screen LCD screen
Storage SDHC/SDXC Card Slot
Software Remote Mixer App (iPad, BTA-1 bluetooth adapter required)
Rackmountable Yes (RKL-12 kit sold separately)
Power Source 12V DC 2A power supply (included)
Dimensions Width: 17.5"
Height: 3.25"
Depth: 15.3"
Weight 8.1 lbs.
