(Open Box) Tsakalis Molecular Boost Pedal with +18dB
(Open Box) Tsakalis Molecular Boost Pedal - Buffer, Boost, Pre-amp, Volume Pedal, Expression Input
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
(Open Box)
Buffer, Boost, Pre-amp, Volume Pedal

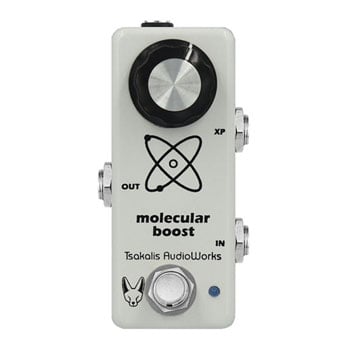

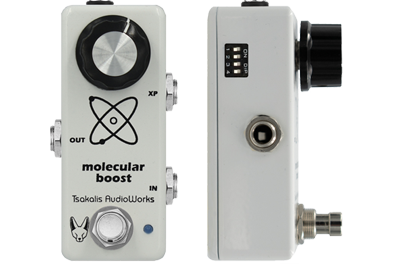

Tsakalis - Molecular Boost
Please note: This is an open box product, packaging has been opened and demonstrated to a customer, but product is in as-new condition.
up to +18db of clean boost!
The ‘Molecular Boost’ from Tsakalis is a compact but extremely powerful and flexible pedal with a multitude of uses for guitarists spanning all playing styles. Use the Molecular boost as a buffer, a booster, a pre-amp or a volume pedal and place it anywhere in your chain. Tsakalis included an internal voltage doubler to ensure the Molecular boost is able to handle any signal level, and leave your signal untainted and pure.
A dual high-speed FET opamp ensures the impedances are matched to that of most pickups and piezos and for preserving the voice of any instrument connected. The Molecular Boost offers ample boost too, from 0dB to +18dB just by tweaking the external knob.
Expression inputThat’s not all though, it’s possible to connect any volume or expression pedal to the expression pedal input to take control over the overall volume of the boosted signal when the Molecular Boost is engaged, or the unity level when the pedal is disengaged and in buffered bypass mode.

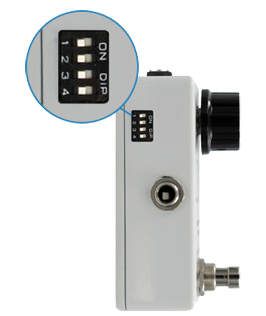

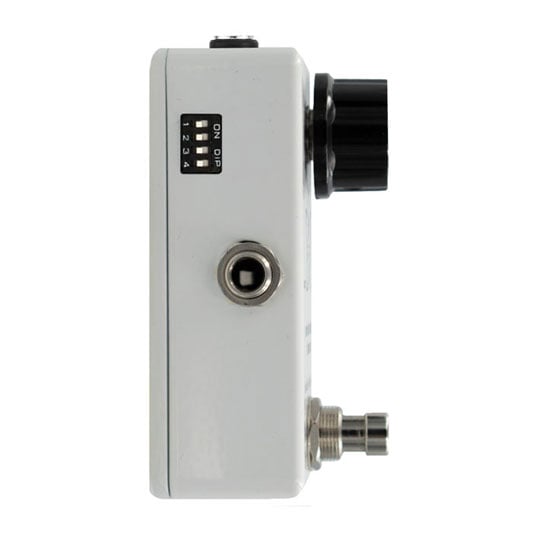

4 External DIP Switches
serious versatility!Use the four external dip switches on the left side of the Molecular to dive into some serious tone shaping and to access extra features:
DIP1 & DIP2 are responsible for the boosted frequency range
DIP1 & DIP2 down: Boost high frequencies (treble booster)
DIP1 up & DIP2 down: Boost high mid frequencies
DIP1 down & DIP2 up: Boost mid frequencies
DIP1 & DIP2 up: Boost all frequencies (clean booster)
Specifications
Handmade in Athens, Greece
• Buffer, Boost, Pre-amp, Volume Pedal
• 2 DIP switches for selecting boost frequency range
• 1 DIP switch for high cut filter
• 1 DIP switch for enabling/disabling xp input when in buffered bypass mode
• Internal switch for True bypass or Buffered bypass
• Power Supply : 9V Boss-type DC adapter
• Max power consumption : 10mA @ 9V DC
• T.A.W. Limited Life-Time warranty
• Internal voltage doubler
