(Open Box) Roland JX-08 Sound Module

Product Overview Debuted in 1985, Roland released the JX-8P and took hybrid synthesis to the next level with an innovative new analogue-digital voice. The instrument became an instant go-to by world-class session players, who continuously used its warm pads, shimmery chorus, and immersive textures into the era’s most popular tracks. The JX-08 introduces the unique sound of this sought-after classic in great detail, together with powerful new effects, a polyphonic sequencer, and more. To spark inspiration, there’s a full panel of hands-on controls taken from the companion PG-800 programmer unit for the original hardware.

Whilst the original design of the JX-8P is retained in this modern version, a range of updates have been added to take the experience up a level. Experience the 100-plus new patches tuned for contemporary styles, or use the onboard controls to create your own sounds. With expanded polyphony, two-part multitimbral capability, and dual/split modes, there’s even more possibility to expand your sonic ideas. When you’ve created a sound you like, use any of the 256 preset slots to store your creations for easy recall. Features User Memory Sound Patch: 256
Pattern: 128

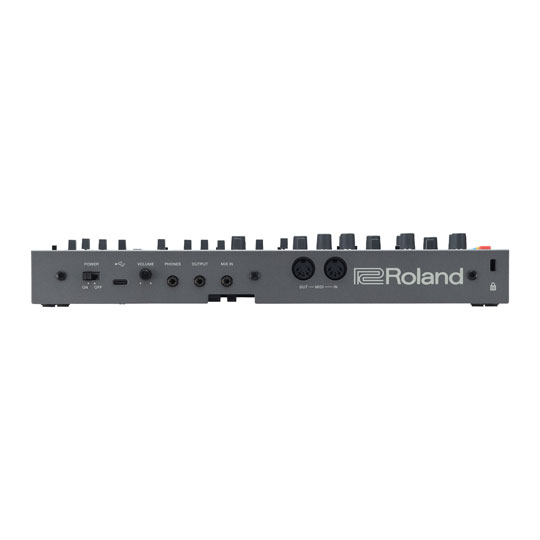

Controllers Rear Panel: Power switch, VOLUME knob

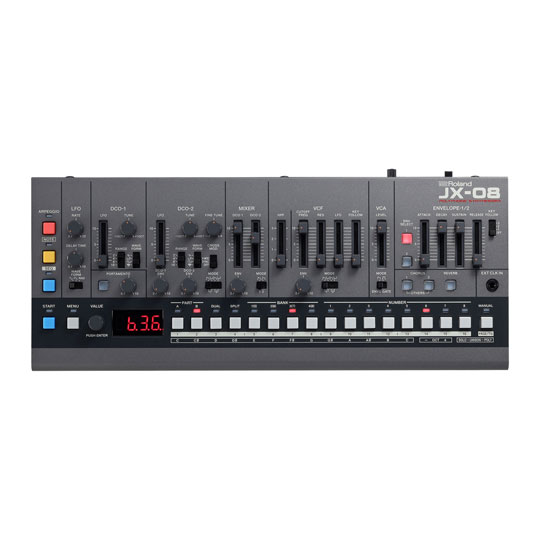

LFO Section: RATE knob, DELAY TIME knob, WAVE FORM switch
DCO-1 Section: LFO slider, TUNE knob, RANGE switch, WAVE FORM switch
DCO-2 Section: LFO slider, TUNE knob, FINE TUNE knob, RANGE switch, WAVE FORM switch, CROSS MOD knob, DCO-1 ENV knob, DCO-2 ENV knob, MODE switch
MIXER Section: DCO-1 slider, DCO-2 slider, ENV knob, MODE switch
VCF Section: HPF slider, CUTOFF FREQ slider, RES slider, LFO slider, KEY FOLLOW slider, ENV knob, MODE switch
VCA Section: LEVEL slider, MODE switch
VCA Section: LEVEL slider, MODE switch
ENVELOPE-1/2 Section: ENV SELECT 1, 2 buttons, ATTACK slider, DECAY slider, SUSTAIN slider, RELEASE slider, KEY FOLLOW switch
PORTAMENTO Section: MODE button, TIME knob
EFFECT Section: CHORUS 1, 2 buttons, REVERB button
ARPEGGIO button, NOTE button, SEQ button, START button, MENU button, VALUE knob, PART A, B buttons, DUAL button, SPLIT button, BANK 1(5)--4(8) buttons, NUMBER 1--8 buttons, MANUAL button
Effects Chorus: 3
Delay: 4
Overdrive
FUZZ
Drive
Bit crusher
LOFI Comp
Phaser: 2
Filter
Pitch Shifter: 2
Display 7 segments, 4 characters (LED)
Connectors EXT CLOCK IN jack: Mono miniature phone type
PHONES jack: Stereo miniature phone type
OUTPUT jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
MIDI (IN, OUT) connectors|
USB port: USB Type-C(R) (Audio, MIDI)
Power Supply Ni-MH battery (AA, HR6) x 4 or Alkaline battery (AA, LR6) x 4
USB bus power
Current Draw 500 mA (USB bus power)
Expected battery life under continuous use Ni-MH battery: Approx. 6 hours (When using batteries having a capacity of 1,900 mAh.)
This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
Dimensions 300 (W) x 128 (D) x 47 (H) mm
11-13/16 (W) x 5-1/16 (D) x 1-7/8 (H) inches
Weight (including batteries) 895 g
2 lbs
Accessories Quick Start
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4
Options (sold separately) Keyboard unit: K-25m
Boutique Dock: DK-01
