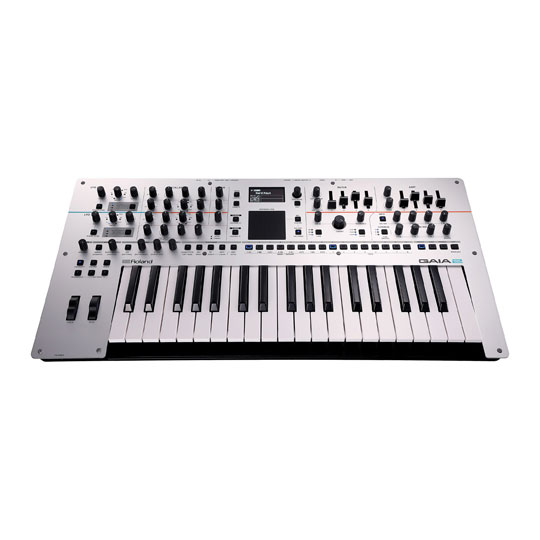

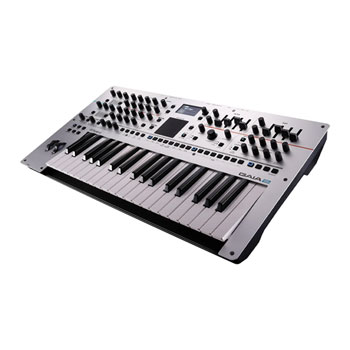

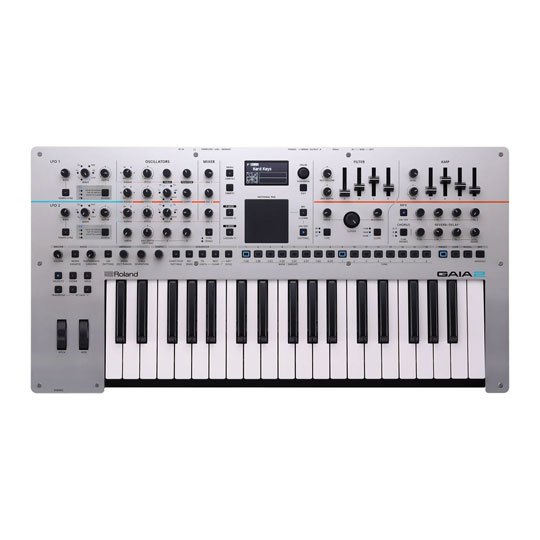

(Open Box) Roland GAIA 2 Synthesizer

Product Overview The Roland GAIA 2 offers users an endless universe of inspired sound creation. Featuring a powerful hybrid engine that joins wavetable and virtual analogue synthesis, you can quickly learn the basics before rocketing into uncharted sonic territory. The intuitive panel layout logically outlines the synthesis workflow for speedy sound design, while full-size keys give you exceptional playability when you’re ready to perform. With the sequencer and Motional Pad, generating complex sounds and phrases full of dynamic movement is easy, and you can alter them on the fly. Discover the shape of sound with GAIA 2 and bring all your musical visions to life.

GAIA 2’s newly developed sound engine puts a never-ending wolrd of tonal exploration under your fingers. Build familiar sounds inspired by past and present synth icons. Then dive into unique phase and shape modulation tools to unleash cutting-edge textures with complex overtones that can’t be created with traditional analogue synths. If you want something more extreme, just crank the Drive knob in the multimode filter section for even more grit and power. If you desire smooth tones reminiscent of vintage synths to edgy or biting leads to sci-fi soundscapes, the GAIA 2 can do it. Features Features Specifications
Keyboard 37 Keys
Sound Generator GAIA-2 sound generator
Pre-installed Model Expansion SH-101
Other Model Expansions (optional- via Roland Cloud)
Maximum Polyphony 22 voices (3 x oscillators per voice)

The maximum polyphony varies depending on sound settings or the selected Model Expansion.
Tones Preset tone: 256
User tone: 512
Oscillators OSC 1 (Wavetable): 63 waveforms
Modulation types: Wave position, Phase modulation (P-MOD), Shaping modulation (S-MOD)

OSC 2/3 (Classic waveforms): Sine, Triangle, Saw, Square, Super Saw, and 5 noise waves
Modulation types: Shape, Ring modulation, Oscillator sync, Cross modulation 1, Cross modulation 2

Envelope: Attack, Decay
Envelope destination: Pitch, Oscillator 1 position, Oscillator 2 shape, Oscillator 3 shape, P-MOD X, P-MOD Y, S-MOD Depth, S-MOD Drive
Filter Filter type: LPF, BPF, HPF
Filter slope: -12dB/Oct, -18dB/Oct, -24dB/Oct
Envelope: Attack, Decay, Sustain, Release
Filter Drive
Amp Envelope: Attack, Decay, Sustain, Release
LFO 2 LFOs, 5 waveforms and 1 programmable step LFO wave
LFO assignment: Up to 4 parameters from panel knobs and sliders (except for click dials) in each LFO
Effects Multi-Effects: 53 types
Reverb/Delay: 7 types
Chorus: 3 types (9 modes in total)

The sound path order of the above effects can be changed.
Master Controls Master EQ
Master Compressor
Other Functions Portamento
Unison
Chord memory
Step Sequencer 64 steps : Each step can record 8 notes and 4 controls
Recording modes: Real-time/Step/TR-REC
Probability
Random pattern generator
Arpeggiator Mode: Up, Down, Up&Down, Random, Note Order
Scale: 16 variations
Motional Pad Two dimensional edit to P-Mod X/Y or S-Mod Depth/Drive
Two dimensional assignable control to parameters of panel knobs and sliders (except for click dials)
Motion recording and playback function
Menu interface with a drag pointer
Other Controllers Pitch Bend wheel
Modulation wheel
Display OLED 128 x 64 dots

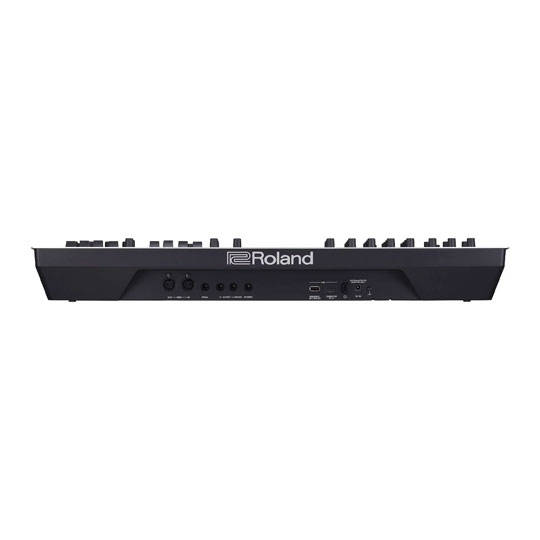

Connectors HEADPHONES jacks: Stereo miniature phone type (front), Stereo 1/4-inch phone type (rear)
OUTPUT jacks (L/MONO, R): 1/4-inch phone type
PEDAL jack: Stereo 1/4-inch phone type (available for a hold pedal or a control pedal)
MIDI connectors (IN, OUT)
USB COMPUTER port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI)
USB MEMORY/EXT DEVICE port: Type-A (Storage, MIDI)
Power Supply AC adaptor (DC IN port)
USB bus power supply (USB Type-C(R) port)
Current Draw 600 mA (AC adaptor)
1,800 mA (USB bus power supply)
External Memory USB Flash drive (commercially available)
Dimensions 655 (W) x 336 (D) x 92 (H) mm
25-13/16 (W) x 13-1/4 (D) x 3-5/8 (H) inches
Weight 4.4 kg
9 lbs 12 oz
Accessories Startup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor (PSB-5U)
Power cord
Options (sold separately) Pedal Switch: DP series
Expression Pedal: EV-5
Wireless Adapter: WC-1
Keyboard Bag: CB-B37
