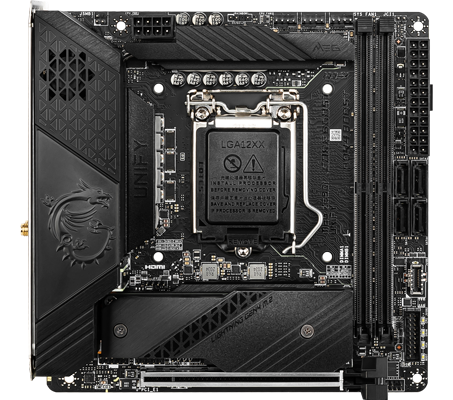

Refurbished MEG Z590I UNIFY 11th Gen Intel Mini-ITX Motherboard from MSI

Z590

A Whole New Generation Ready to experience the future of gaming? The MSI Z590I UNIFY is here to support the very latest 11th Generation Intel processors; For those who still want the experience of top-tier performance but require a smaller form factor this Mini-ITX motherboard has you covered; boasting dual TB4 ports, an extreme INTERSIL digital PWM power design, an outstanding cooling solution featuring Frozr heatsinks, VRM heatpipes and an aluminium cover guarantees you the extreme performance you deserve whilst keeping your temperatures down. Future-ready connectivity is also in your grasp with 2.5G LAN + Wi-Fi 6E support and twin M.2 connectors to handle your storage. Though small in stature the MSI Z590I UNIFY truly is a reminder that great things can be contained in small packages.

Intel Z590Chipset

LGA 1200CPU Socket

10th & 11th Gen IntelCompatible CPUs

M-ITXForm Factor

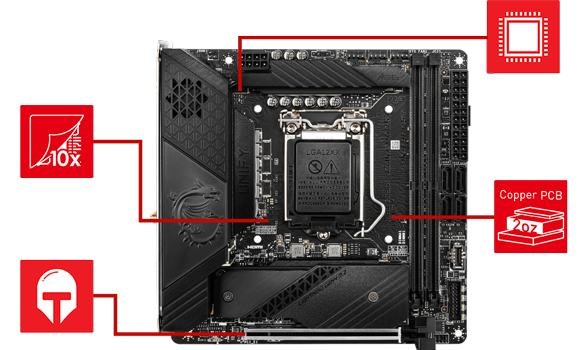

Special Features of the Z590I UNIFY

4K Recording
down

10 Layer
PCB
Multilayer printed circuit boards design optimise the efficiency of power delivery, making your system run stable and cool.

up

Digital
PWM
Highest quality components with ISL digital power, 90A Smart Power Stage and titanium choke III make sure your system runs smoothly under the most extreme conditions

up

2oz
Copper
2oz thickened copper PCB provides higher performance and long-lasting system stability without any compromise.

up

PCIe
Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

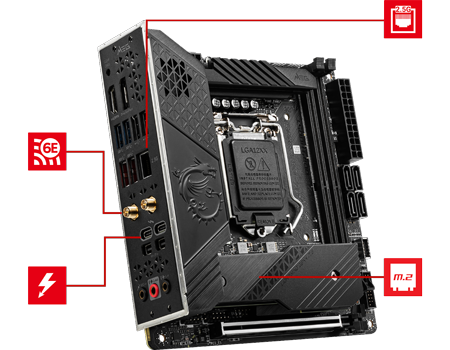

Next Generation Connectivity with MSI

4K Recording
down

Dual Thunderbolt 4 Brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture

down

Wi-Fi 6E SolutionThe latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

down

2.5G LANFeaturing premium 2.5G LAN plus Gigabat lan with included LAN manager delivers a better network experience.

up

Twin M.2 ConnectorsOnboard dual M.2 connectors for maximum storage performance with one Lightning Gen 4 solution.

Premium Thermal Solution

4K Recording
down

Frozr Heatsink DesignThe active cooling solution is ready for you to unleash maximum performance.

up

Aluminium CoverFully aluminium IO cover and extended heatsink design provide maximum surface of heat dissipation.

up

M.2 Shield FrozrOnboard M.2 thermal solution keeps M.2 SSDs safe whilst preventing throttling, making them run cooler and faster.

up

Heatpipe DesignConnecting two MOS heatsinks to enlarge the surface of heat dissipation.

Unbelievable Power Solution

4K Recording

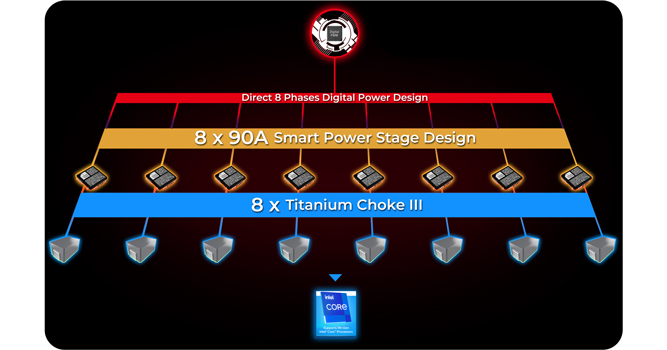

INTERSIL Digital PWM Unleash and sustain maximum performance with an aggressive VRM design built with direct 8 phases digital power phases. Combining INTERSIL digital PWM and 90A Smart Power Stages, MEG Z590I UNIFY is ready for the challenge of high-end processors.

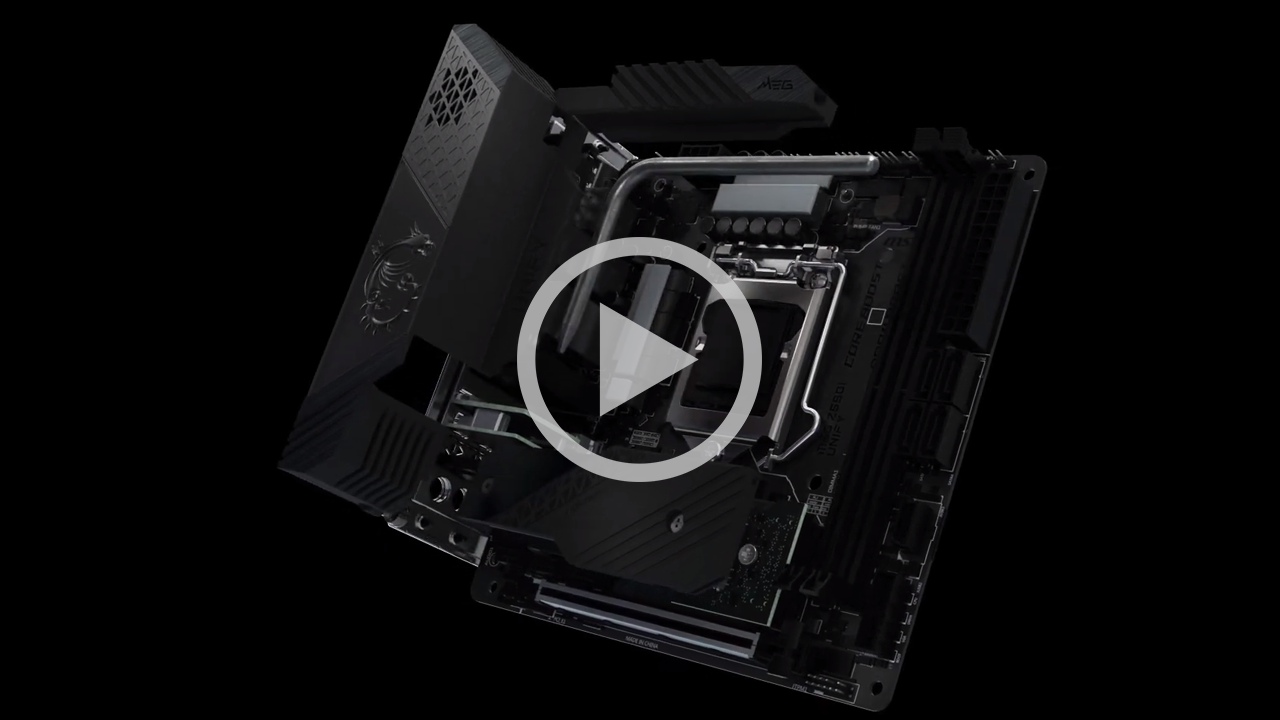

See Whats Under The Cover

The Future is Now

4K Recording

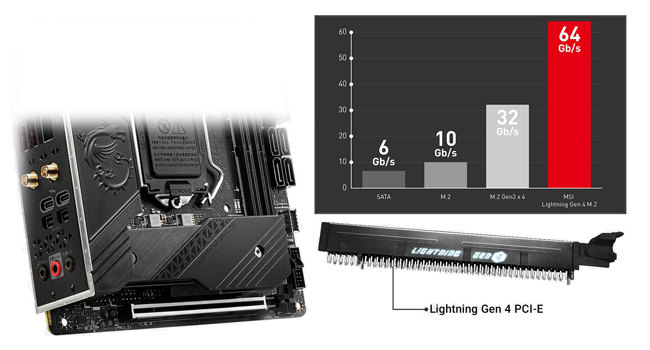

LIGHTNING GEN 4 SOLUTIONThe latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.

Protecting your PCIe Slots

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavier graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Professional Gaming Audio

audio

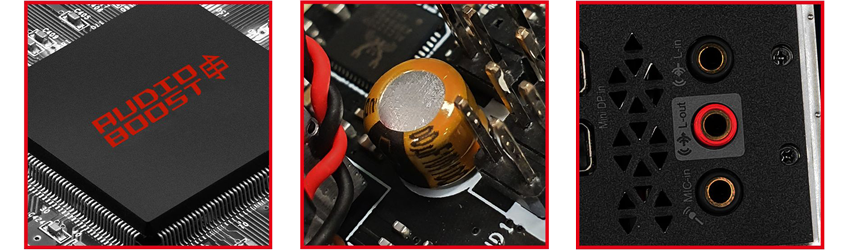

Amplify your game with Audio Boost 4 Like a dedicated sound card, Audio Boost 4 offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

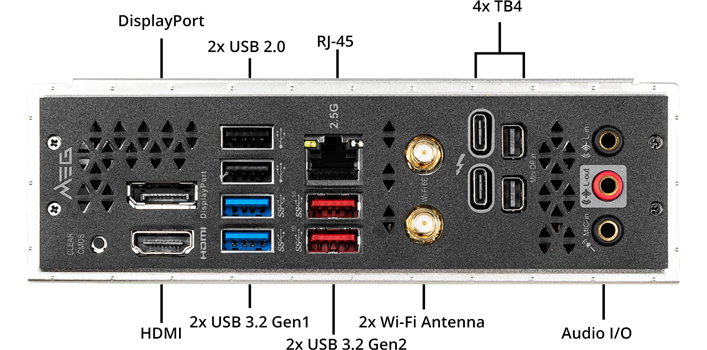

A Fully Comprehensive I/O

4K Recording
Specifications
Core Specifications
Edition MEG Z590I UNIFY
Form Factor Mini-ITX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 4800(OC)
  • DDR4 - 5400+(OC)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.0b
  • Thunderbolt 4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen3x4
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 3-pin RAINBOW LED connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 2 x M.2
  • 4 x SATA III - 6Gb/s
  • 2 x System panel connector
  • 1 x TPM Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel Wi-Fi 6 AX210 (ax WiFi, BT5.2)
  • 1 x Intel® I225V (2.5GbE LAN)
Rear I/O Connectors
  • 1 x Clear CMOS Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 2 x Mini DisplayPort
  • 1 x RJ-45
  • 2 x Thunderbolt 4
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
