Refurbished
Scan code: LN146044 Manufacturer code: MAG B760 TOMAHAWK WIFI

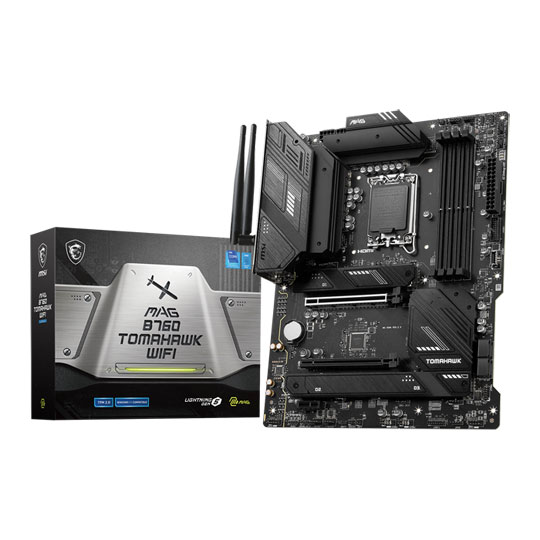

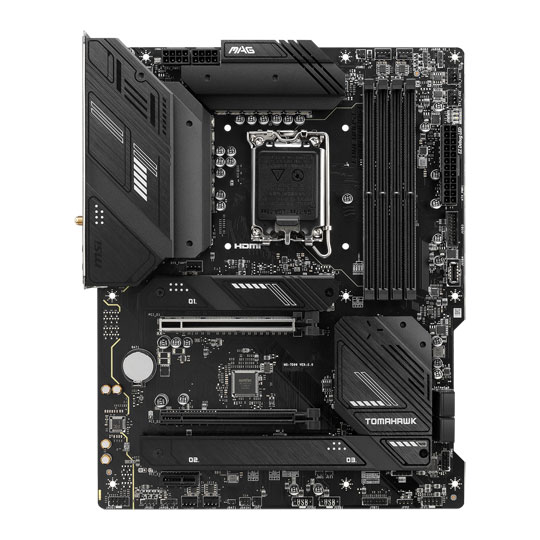

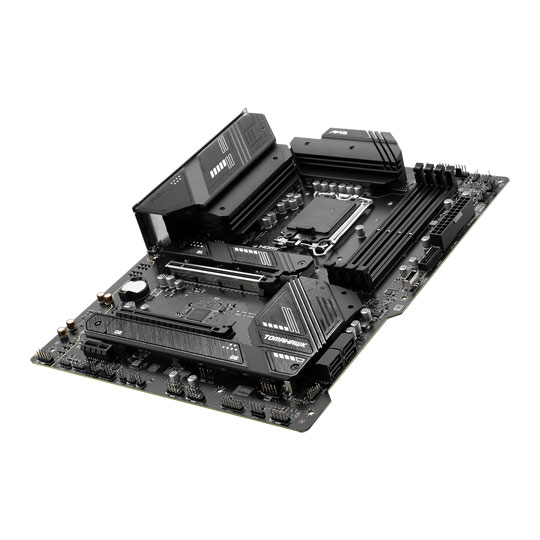

MSI Intel MAG B760 TOMAHAWK WIFI DDR5 ATX Open Box Motherboard

Open Box MSI MAG B760 TOMAHAWK WIFI, Intel B760, LGA1700, DDR5, PCIe 5.0, 3x M.2, 2.5GbE, WiFi 6E, USB 3.2 Gen2x2, ATX

Thumbnail 1 : MSI Intel MAG B760 TOMAHAWK WIFI DDR5 ATX Open Box Motherboard Thumbnail 2 : MSI Intel MAG B760 TOMAHAWK WIFI DDR5 ATX Open Box Motherboard Thumbnail 3 : MSI Intel MAG B760 TOMAHAWK WIFI DDR5 ATX Open Box Motherboard Thumbnail 4 : MSI Intel MAG B760 TOMAHAWK WIFI DDR5 ATX Open Box Motherboard
Scan code: LN146044 Manufacturer code: MAG B760 TOMAHAWK WIFI
Order now and receive it by Tuesday, 18th June
£179.99
Get it Tuesday, 18 JunIn stock
From £16.31 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £16.31
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £195.67
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 18th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Unite as One

The MAG B760 TOMAHAWK WIFI is a gaming oriented ATX motherboard constructed around the latest Intel B760 chipset that balances value with premium hardware.


Supports Intel Core 12th & 13th Gen Processors

The MAG B760 TOMAHAWK WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.


12+1 Duet Rail Power System with 75A DrMOS

With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG B760 TOMAHAWK WIFI is able to sustain heavy CPU power loads to support system-demanding game settings.


Integrated Cooling Features


VRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation.
PCB Cooling: Premium 6-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.


4 x DDR5 Dual Channel (7000 MHz OC)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP profiles: Profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.


Fortified PCI-e 5.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.


Gen4 M.2 Connectors

The MAG B760 TOMAHAWK WIFI motherboard features MSI's Gen4 M.2 slots.


M.2 Shield Frozr

Even the world's fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.


Wi-Fi 6E & Bluetooth 5.3

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps
HD Audio: 7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.


Features


• Lightning Gen 5.
• Latest DDR5 Memory.
• Wi-Fi 6E.
• 2.5G Network Solution.
• 6 Layer PCB with 2oz Thickened Copper.
• Lightning USB 20G.
• M.2 Shield FROZR.
• Memory Boost.
• Core Boost.
• Audio Boost.

Specifications
Core Specifications
Edition MAG B760 TOMAHAWK WIFI
Form Factor ATX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz) DDR5 - 7000+(OC)
Max. Memory Capacity
Audio
Audio 8-Channel(7.1) HD Audio with Audio Boost
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 3 x M.2, 22-80, PCIe Gen4x4
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x1
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x 2.5 Gigabit LAN

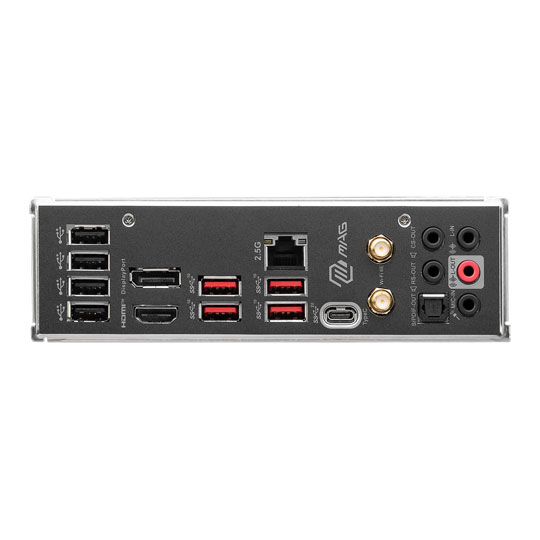

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 5 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi / Bluetooth Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions
Note
Additional Information
Scan Code LN146044
Model Number MAG B760 TOMAHAWK WIFI
GTIN 4711377034210
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
