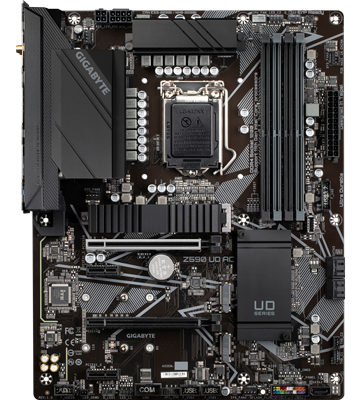

Gigabyte Intel Z590 UD AC Open Box ATX Motherboard

Open Box Gigabyte Z590 UD AC, Intel Z590, S 1200, DDR4, PCIe 4.0, SATA3, 3x M.2, 2.5GbE, ac/BT5.1, USB 3.2 Gen2, ATX

Thumbnail 1 : Gigabyte Intel Z590 UD AC Open Box ATX Motherboard Thumbnail 2 : Gigabyte Intel Z590 UD AC Open Box ATX Motherboard Thumbnail 3 : Gigabyte Intel Z590 UD AC Open Box ATX Motherboard Thumbnail 4 : Gigabyte Intel Z590 UD AC Open Box ATX Motherboard
Scan code: LN118976 Manufacturer code: Z590 UD AC
£155.99
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
From £13.00 / month (APR 0%) or 0% for 4 months
Monthly Payment: £13.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £155.99
Total inc. interest: £155.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jan to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

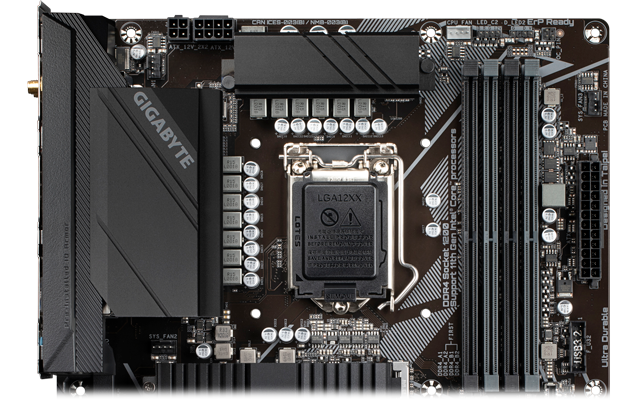

12+1 Phases Digital Power Design

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

• Digital PWM Controller to deliver appropriate voltage to the CPU.
• Direct 12+1 Phases DrMOS without PWM Doublers, each power phase connects directly to the CPU, With capability to handle 600 Amps current in total.
• All-solid capacitors to improve Transient response and minimise oscillation.
• 8+4 Solid Pin CPU Power Connectors.


GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

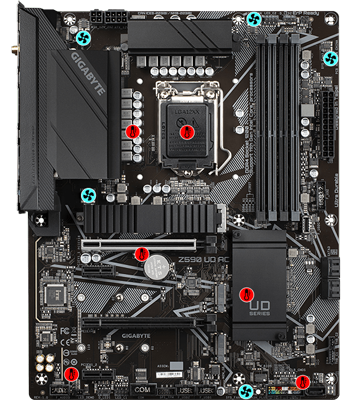

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.


Support for DDR4 XMP Up to 5000MHz and Beyond

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

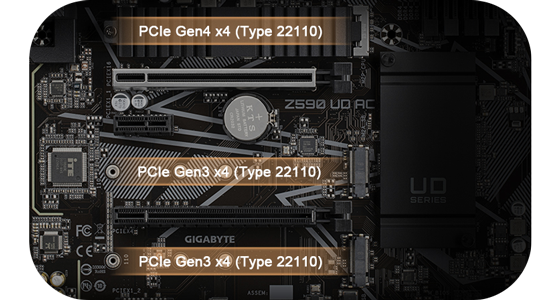

Triple PCIe 4.0/3.0 x4 M.2 Connectors with Thermal Guard

GIGABYTE Ultra Duable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximise their Systems’ potential.


High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.


Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.


First Adopter on 2.5GbE LAN Onboard

Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience. Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 ethernet.


Intel® Dual Band 802.11ac WIFI

The onboard 802.11ac WIFI module from Intel® supports Dual Band and up to 433 Mbps, 3x faster WIFI speed than 802.11n and also support BLUETOOTH 5.


Connecting the Future - USB Type-C®

The USB Type-C® is a new reversible connector that is loaded with useful features such as USB 3.2 Gen1 support for 10Gb/s transfer speed. Powered by the Intel® USB 3.2 Gen1 controller, this little port provides the best USB Type-C® experience possible.


RGB FUSION 2.0

With Z590 UD AC Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colours and patterns, RGB Fusion 2.0 on Z590 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations. With Z590 UD AC Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.


RGB FUSION Software

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customising the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalise your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.


GIGABYTE RGB Fusion App

Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colours and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.


Solid Pin Power Connectors

Z590 motherboards feature solid plated ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading.


Q-Flash Plus

With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!


Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.


App Center

GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.


EasyTune™

GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.


System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behaviour; these are the possibilities of the System Information Viewer.

Features

• Supports 11th and 10th Gen Intel® Core™ Series Processors.
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs.
• Direct 12+1 Phases Digital VRM Solution with 50A DrMOS.
• Shielded Memory Routing for Better Memory Overclocking.
• Enlarged VRM Heatsink with Air-Flow Grooving to Increased Surface Contact.
• Fast 2.5GbE LAN with Bandwidth Management.
• Onboard Intel® 802.11ac Wireless & BT with High-Gain Antenna.
• Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard.
• USB 3.2 Gen2 and Front USB Type-C® for Fast and Versatile Connections.
• Pre-installed IO Shield for Easy and Quick Installation.
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips.
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP.
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.

Specifications
Core Specifications
Edition Z590 UD AC
Form Factor ATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors DisplayPort 1.2
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-60/80/110 PCIe Gen 4x4
  • 1 x M.2, 22-60/80/110, PCIe Gen3
  • 1 x M.2, 22-60/80/110, PCIe Gen3x4/SATA3
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 5 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 3 x M.2
  • 1 x Q-Flash Plus Button
  • 2 x RGB Header
  • 1 x S/PDIF-Out Header
  • 5 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel Wireless-AC 9462 (ac WiFi, BT5)
  • 1 x Realtek (2.5GbE LAN)
Rear I/O Connectors
  • 1 x DisplayPort
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN118976
Model Number Z590 UD AC
GTIN 4719331814878
