Gigabyte AMD X570S AORUS MASTER ATX Motherboard
Open Box Gigabyte X570S AORUS MASTER, AMD X570, S AM4, DDR4, SATA3, PCIe 4.0, 3x M.2, 2.5GbE, USB3.2Gen2,ATX
|Instalment Rate:||0% p.a. (fixed)|
|Cost of purchase:||£339.98|
|Total inc. interest:||£339.98|
|Instalment Rate:||0% p.a. (fixed)|
|Cost of purchase:||£339.98|
|Total inc. interest:||£339.98|
|Cost of purchase:||£99|
|Total inc. interest:||£99|
Purchase Rate: 21.9% p.a. (variable)
Representative: 21.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 7th Dec
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

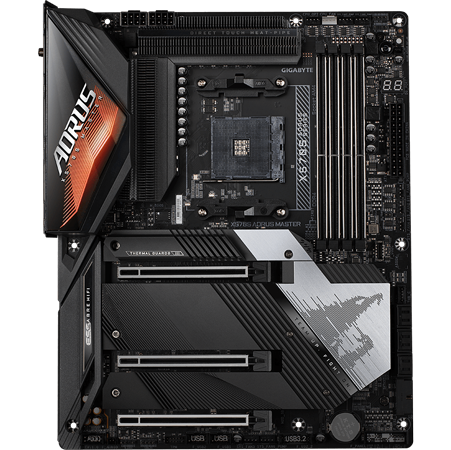

AORUS MASTER X570S AMD AM4 ATX Motherboard from Gigabyte
True Performance with The X570S Meet the X570S AORUS MASTER ATX motherboards, built to squeeze every ounce of performance from your latest 2nd & 3rd generation Ryzen CPUs. Boasting an upgraded power solution, passive and silent thermal design, PCIe 4.0 components, Quad ultra-fast NVMe PCIe 4.0/3.0 M.2, Wi-Fi 6E and BT 5.2 connectivity, an incredible fully specced I/O panel with USB 3.2 Gen2x2 connectivity and with RGB Fusion 2.0 support offering more LED customisations than ever, you can truly adapt your motherboard to represent you. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard and additional support for additional light strips. This is the next generation of performance, immersion and super-fast experiences. Can you handle it?
A True Beast Among Motherboards

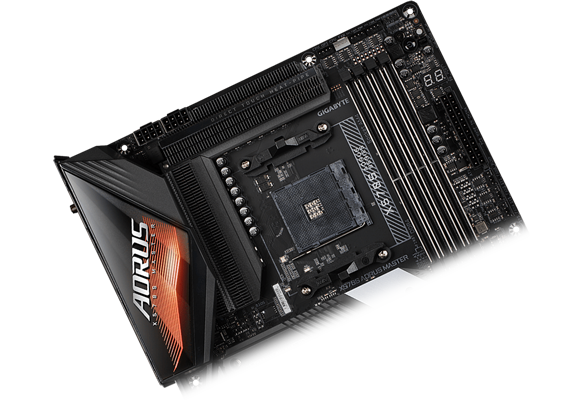

Direct Power Design GIGABYTE X570S Motherboards are equipped with best in class power solution to release the full potential of the latest AMD Ryzen™ 5000 Series CPUs. The VRM power design includes MOSFETs which Vcore and SOC accompanied by digital PWM, premium chokes and high quality capacitors to offer extraordinary stability and precision to the high performance CPU. In addition, Six-layered PCB and comprehensive thermal solution allows enthusiasts to enjoy the extreme overclocking performance without compromise.
Direct & Digital power for Vcore
Digital Power for CPU SOC
Maximum Performance with PCIe 4.0
SUPPORT FOR DDR4 XMP UP TO 5400MHZ AND BEYONDAORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5400MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

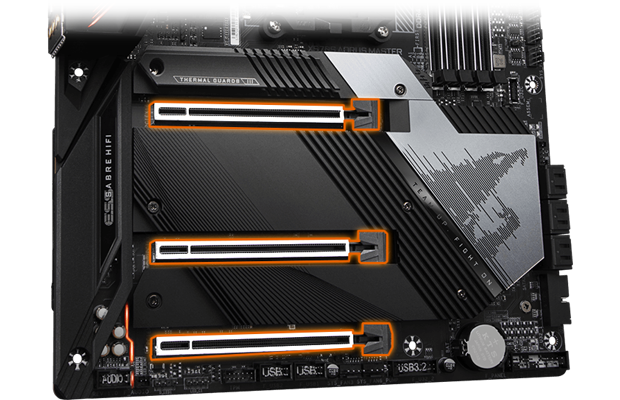

PCIe 4.0 Hardware ReadyThe AORUS X570S MASTER is fitted with 3x PCIe 4.0 slots along with active switch technology to switch PCIe 4.0 x16 into PCIe 4.0 8x8 giving you access to the latest generation of transfer speeds.

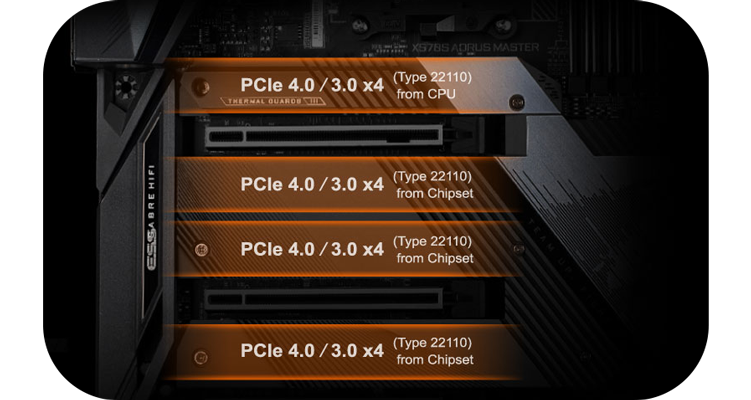

Quad ultra-fast NVMe PCIe 4.0/3.0 M.2 with Thermal GuardsAORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximise their Systems' potential. The AORUS MASTER boasts 4x PCIe 4.0 x4 m.2 slot giving you up 64 GBs theoretical bandwidth giving you more than enough storage expansion to cover all of your needs.
A Fully Comprehensive Thermal Solution
10x PWM/DC Fan Headers
2x Temperature Sensor Cables
The X570 AORUS MASTER uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming. Un-throttled performance is guaranteed by the enhanced thermal solution that incorporates Fins-Array II, Heatpipe II and M.2 Thermal Guards III. The comprehensive solution delivers excellent heat dissipation. Plus with Smart Fan 6 technology containing several unique cooling features that ensure gaming PCs maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fans and pumps, and users can easily define each fan curve based on different temperature sensors across the board via an intuitive user interface.
7x Internal Temperature Sensors
1x Noise Detection Cable
Intel 802.11ax WIFI 6EIntel latest Wireless solution 802.11ax WIFI 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Illuminate your PC with RGB Fusion 2.0
RGB FUSION 2.0With this GIGABYTE motherboard, RGB Fusion 2.0 is even better. users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
RGB FUSION 2.0 SOFTWAREWith an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals, customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you the most immersive gaming experience.
GIGABYTE RGB Fusion APPDon't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app you can watch as you control the lighting within your gaming PC. This gives you ease of access as you adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of your PC via your smartphone.
Immerse yourself into any Environment
ESS SABRE reference & Hi-Res Audio This impressive motherboard is Hi-Res Audio certified, meaning that it is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.
True High-Fidelity Music (Realtek ALC1220-VB)Paired with Realtek's latest ALC1220 Codec, playback for surround sound audio and DSD enabled music are easier than ever.
Audiophile Grade Capacitors (WIMA , Nichicon Fine Gold)To ensure a studio-quality experience, WIMA and Nichicon Fine Gold capacitors are used to provide power to the overall system.
Precision Audio Stream (TXC OSCILLATOR)Provides precise time triggers to Digital-Analog Converters. High resistance to corrosion and oxidation.
Durability for Years to Come
Industry Leading Ultra Durable™ PCIe ArmourThe innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Solid Pin Power ConnectorsX570 AORUS motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
• Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.
Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
STEP 1Plug the 24pin & 8pin power supply cable into the motherboard.
STEP 2Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.
STEP 3Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.
Ultra Durable™ Memory ArmourAORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.
Take Control of your Motherboard
GIGABYTE BIOS & APP CENTERGood software goes hand in hand with perfect hardware. The X570 AORUS MASTER has bundled several useful and intuitive softwares to help users to control every feature of the motherboard.
New User InterfaceAll new EASY MODE shows important hardware information all on one page.
FavoritesAdd constantly used items into the favorite menu for quick access.
Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.
ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.
APP CENTERGIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune™GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
|Edition||X570S AORUS MASTER|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||ECC/Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||Realtek ALC1220-VB 7.1 HD Audio|
|Primary GPU Interface||PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]|
|NVIDIA SLI Support||Not Supported|
|AMD CrossFire Support||Supported|
|Integrated Graphics||Discrete GPU Required for Graphics Output|
|On-Board Graphics Connectors||None|
|RAID Support via|
|Storage Mode Support||
|Network Interface Type||
|Rear I/O Connectors||
|Board Dimensions||305 x 244 mm|
|Model Number||X570S AORUS MASTER|
