Gigabyte B760M AORUS ELITE AX DDR5 M-ATX Open Box Motherboard
Refurbished
Gigabyte B760M AORUS ELITE AX DDR5 M-ATX Open Box Motherboard
Scan code: LN137599 Manufacturer code: B760M AORUS ELITE AX
£179.99
Add To Basket
Get it Tomorrow, 26 MarIn stock
  • Thumbnail 1 : Gigabyte B760M AORUS ELITE AX DDR5 M-ATX Open Box Motherboard
  • Thumbnail 2 : Gigabyte B760M AORUS ELITE AX DDR5 M-ATX Open Box Motherboard
  • Thumbnail 3 : Gigabyte B760M AORUS ELITE AX DDR5 M-ATX Open Box Motherboard
  • Thumbnail 4 : Gigabyte B760M AORUS ELITE AX DDR5 M-ATX Open Box Motherboard
Refurbished

Gigabyte B760M AORUS ELITE AX DDR5 M-ATX Open Box Motherboard

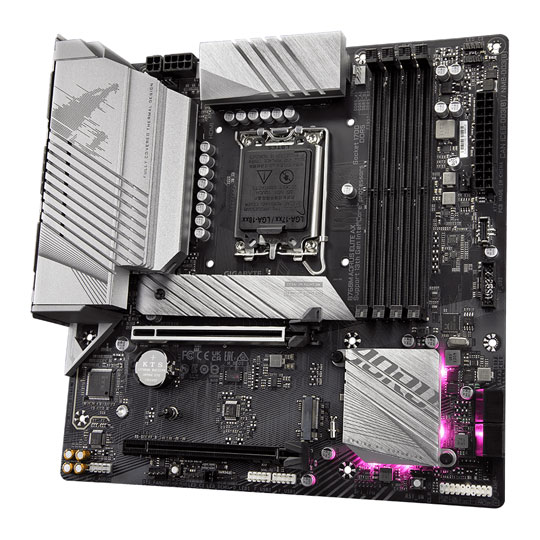

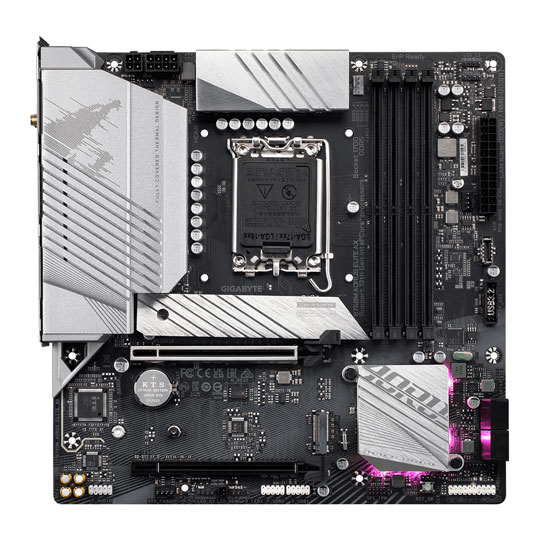

Open Box Gigabyte B760M AORUS ELITE AX, Intel B760, LGA1700, DDR5, 2x M.2, 2.5GbE, WiFi 6E, USB 3.2 Gen2, mATX
MORE INFO
MORE INFO

Scan code: LN137599 Manufacturer code: B760M AORUS ELITE AX
£179.99
£5.48 NEXT DAY DELIVERY
Order now and get it tomorrow, Wed 26th Mar
Add To Basket
Get it Tomorrow, 26 MarIn stock
  • By DPD On 26th Mar Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview

Unparalleled Performance

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimised performance for gaming.


Outstanding Thermal Design

GIGABYTE Motherboards' Un-throttled performance is guaranteed by innovative and optimised thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.


Connectivity

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.


Personalisation

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customisable lighting effect with outstanding aesthetics to fit your unique personality.


Ultra-Durable

GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slot to make each of them solid and durable.


Features


• Intel® Socket LGA 1700: Support 13th and 12th Gen Series Processors.
• Unparalleled Performance: Twin 12+1+1 Phases Digital VRM Solution.
• Dual Channel DDR5: 4*SMD DIMMs with XMP 3.0 Memory Module Support.
• Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors.
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance.
• EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design.
• Fast Networks: 2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax.
• Extended Connectivity: Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s, DP, HDMI.
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

Specifications
Core Specifications
Edition B760M AORUS ELITE AX
Form Factor MicroATX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
  • DDR5 - 7600(OC)
Max. Memory Capacity
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80/110, PCIe Gen4x4
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 2 x M.2
  • 1 x Q-Flash Plus Button
  • 1 x Reset Button
  • 2 x RGB (RGBW) LED Strip Header
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 3 x System Fan header
  • 2 x Thunderbolt AIC Connector
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x 802.11ax WiFi 6E + BT5.2

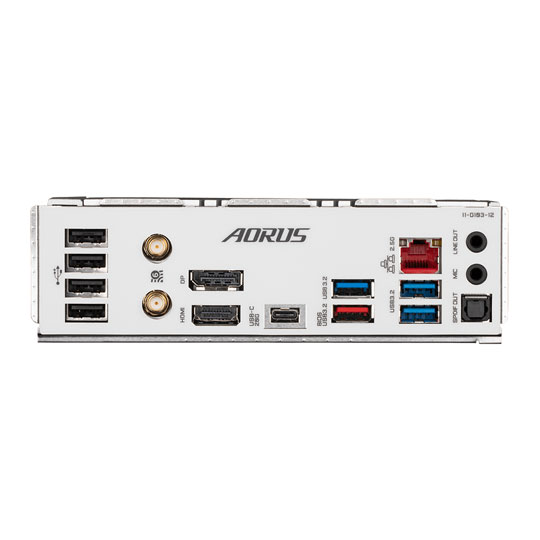

Rear I/O Connectors
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x SMA antenna connectors (2T2R)
  • 4 x USB 2.0
  • 34 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN137599
Model Number B760M AORUS ELITE AX
GTIN 4719331851309
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
Manufacturer Contact Details
Manufacturer:
Gigabyte Uk
