Scan code: LN140416 Manufacturer code: ESIU24XL

(Open Box) ESI U24XL USB Audio Interface - for PC & MAC

(Open Box) ESI - U24XL USB Audio Interface, Real-Time Input Monitoring, Bus Powered / Mac and Windows

Thumbnail 1 : (Open Box) ESI U24XL USB Audio Interface - for PC & MAC Thumbnail 2 : (Open Box) ESI U24XL USB Audio Interface - for PC & MAC Thumbnail 3 : (Open Box) ESI U24XL USB Audio Interface - for PC & MAC
Scan code: LN140416 Manufacturer code: ESIU24XL
Order in the next 54 mins and get it tomorrow (upgrade to Saturday delivery at checkout)
Get it Tomorrow, 09 DecIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 11th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

(Open Box)
2x2 USB Audio Interface
ESI - U24 XL

ESI - U24 XL

Please note: This is an open box product, packaging has been opened and demonstrated to a customer, but product is in as-new condition.

includes Stanton Deckadance LE v2 DJ software! ESI’s U24 XL continues the companys tradition in offering users extremely small and portable audio devices, but with excellent high quality. With the legacy of ESI’s famous Waveterminal U24 in mind, U24 XL has been released just in time for the 10th anniversary of ESI product sales.

U24 XL is not only stylish, thanks to its highly portable size, the U24 XL is a device that can go with you anywhere. Offering total flexibility of an external USB device and pure digital quality, coupled with true high quality 24-bit support on the 2 analog input and 2 analog output channels provided via TRS connectors, U24 XL will easily qualify as the most useful device in your studio, wherever that may be. Even better, U24 XL also provides digital S/PDIF connections in both optical and coaxial format.

If you're looking for a super powerful USB audio device that is small and gives you maximum performance under Mac OS X as well as under any current Windows environment including Windows Vista, 7, 8, 10, then U24 XL is for you.

USB Type-BHost Connection

2 Inputs / 2 OutputsChannels of I/O

48 kHz / 24-BitMax Sampling Rate

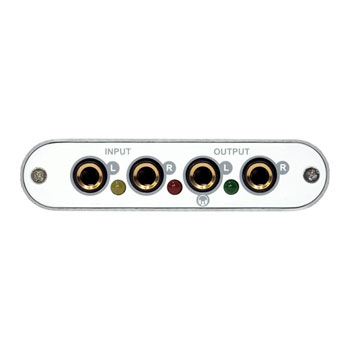

at a glance • 2 x analogue input and 2 analogue output channels (1/4" TRS connectors)
• One output connector usable as headphone output

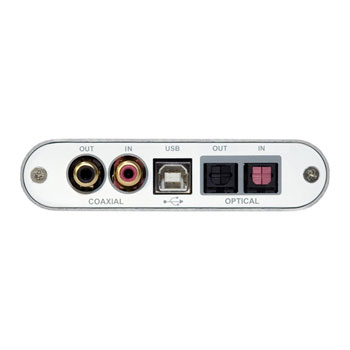

• S/PDIF digital in and out available via optical (Toslink) and coaxial (RCA) connectors
• 24 Bit AD/DA converter
• Realtime input monitoring for incoming signals
• Drivers for Windows 10/8.1/8/7/Vista/XP with ASIO 2.0 support with low latency
• Core Audio support under Mac OS X 10.4 and higher

The Tech Spec

Features Specification
Form Factor Desktop
Channels of I/O 2 Inputs / 2 Outputs
Maximum Sampling Rate 48 kHz / 24-Bit
Analogue Audio I/O 2 x 1/4" TRS Unbalanced Line Input (Front Panel) 2 x 1/4" TRS Line Output (Front Panel)
Digital Audio I/O 1 x TOSLINK Optical S/PDIF Input 1 x TOSLINK Optical S/PDIF Output 1 x RCA Coaxial S/PDIF Input 1 x RCA Coaxial S/PDIF Output
Host Connection / USB USB Type-B
Maximum Input Level +4.7 dBu
Maximum Output Level +6.9 dBu
Sample Rates 32 / 44.1 / 48 kHz
Bit Depths 24-Bit (AD/DA Conversion)
Sync Sources Internal, S/PDIF
OS Compatibility macOS 10.4 or Later Windows XP Windows Vista Windows 7 Windows 8 Windows 8.1 Windows 10 *As of June, 2022: Check with manufacturer for the most up-to-date compatibility
Included Software Stanton Deckadance LE 2
Supported Drivers/API & Plug-Ins macOS Class-Compliant (No Driver Needed) ASIO 2 DirectX GSIF 2 MME WDM
Processor Requirement Mac: PowerPC G4 PC: 600 MHz Intel Pentium III
RAM Requirements 512 MB
Power Requirements USB Bus Power
Dimensions 3.9 x 3.5" / 10 x 9 cm
Package Weight 1 lb
Computer Interface Type USB 2
Connections (Input)
  • 2 x 6.35mm (1/4") TRS - Insert
  • 1 x S/PDIF Coaxial
  • 1 x S/PDIF Optical
Mic Preamps (Max)
Instrument Inputs (Max)
Phantom Power No
Sample Rate (Max) 48 kHz
Bit Resolution 24
iPad Compatible No
Connections (Output)
  • 1 x S/PDIF Coaxial
  • 1 x S/PDIF Optical
Dimensions (mm)
DSP Processing No
Misc. Notes
Additional Information
Scan Code LN140416
Model Number ESIU24XL
GTIN 8809105162222

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
0871 472 4747
