(Open Box)
Wireless System
BOSS - WL-20
Please note: This is an open box product, packaging has been opened and demonstrated to a customer, but product is in as-new condition.
Wireless Freedom Made EasyIf you've always dreamed about going wireless with your instrument, but been put off by the complicated setup, tone loss, and bulky adds-ons, the WL-20 series here to fix that! Powered by new lightning-fast BOSS tech, these ultra-compact music tools provide premium sound and plug-and-play operation that completely removes all the hassles normally associated with wireless systems.
Once you experience the easy wireless independence provided by the WL-20 series, you’ll never go back to using a standard cable again! With no worries about cable management, you’re able to move about freely while playing at home, jamming with friends, and performing on stage. During sound check at a gig, you can listen to your tone out front and dial in the best sound for your audience. And with the ability to roam and interact with other musicians, your live shows will be more dynamic and entertaining than ever.
Amazing Features
• Plug-and-play wireless systems for guitar, bass, and other electronic instruments
• No complicated setup required—simply dock the transmitter and receiver together for about 10 seconds to set the optimum wireless connection
• Cable tone simulation reproduces the natural capacitive effect of a 10-foot/3-meter guitar cable
• Newly developed BOSS technology delivers premium audio performance with rock-solid stability
• Built-in rechargeable batteries provide up to 12 hours of continuous playing time
• Simple charging with a standard USB adaptor (5 V/500 mA or greater)
Lightning-Fast BOSS Wireless Technology
ultra-low latencyEquipped with high-performance BOSS wireless technology that was introduced in the Katana-Air wireless guitar amp, the WL-20 series delivers exceptional sound quality with wide dynamic range. Working in the 2.4 GHz frequency band, the optimum channel is set automatically to ensure rock-solid audio performance with absolutely no drop-outs.
With ultra-low latency of just 2.3 ms, you’ll always enjoy great playing feel with no lag at all. Up to 14 BOSS wireless systems can be used simultaneously in one space, allowing multiple musicians to enjoy wireless freedom at the same time.
Rock-Solid Audio Performance

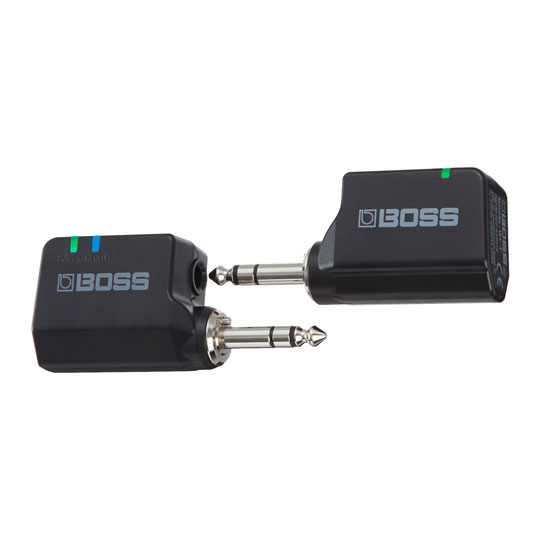

Plug In and RockA WL-20 system is just as easy to use as a standard guitar cable. The small transmitter plugs into your instrument, while a matching receiver plugs into a pedal or amp. That’s it!
Automatic Wireless SetupWith the WL-20 series, there’s no awkward channel setup needed. Just dock the transmitter and receiver together for about 10 seconds to automatically set the optimum connection.
Easy Charging via USBWhen docked, the built-in batteries in the transmitter and receiver can be charged together with a standard USB adaptor (5 V/500 mA or higher), the same type used with the latest smartphones and tablets. The transmitter and receiver can also be charged separately, and a micro USB cable is included for charging.
Built-In Cable Tone SimulationIf you play a guitar or bass with standard passive pickups (the most common pickup type), the WL-20 model is probably your best choice. It includes built-in cable tone simulation, which reproduces the natural capacitive effect that’s introduced when using a 10-foot/3-meter guitar cable with passive pickups. This effect rolls off the treble very slightly, giving you the warm tone you’re used to hearing with a normal cable.
BOSS WL-Series Wireless System (WL-20/WL-20L/WL-50)
The Tech Spec
| Features | Specification | Wireless Format | BOSS proprietary digital audio format |
|---|---|
| Wireless Carrier Frequency | 2.4 GHz |
| Compatible Channels | 14 (May vary due to local conditions) |
| Transmission Range | 50 feet line-of-sight (May vary due to local conditions) |
| Latency | 2.3 ms |
| Dynamic Range | 110 dB or greater |
| Frequency Response | 20 Hz-20 kHz |
| Nominal Output Level | -10 dBu |
| Output Impedance | 1 k ohm |
| Recommended Load Impedance | 10 k ohms or greater |
| Indicators | POWER RECEIVE |
| Connectors | Output plug: 1/4-inch TRS phone type TRANSMITTER jack: 1/4-inch TRS phone type DC IN 5 V port: USB Micro-B type |
| Power Supply | Rechargeable lithium-ion battery Supplied from the DC IN 5 V port |
| Current Draw | During wireless operation: 60 mA While charging: 500mA |
| Battery charging time | Charging only the receiver: Approximately 3 hours Charging simultaneously with the transmitter: Approximately 4 hours |
| Expected battery life under continuous use | Approximately 7 hours * These figures will vary depending on the actual conditions of use. |
| Accessories | Owner's Manual Leaflet USING THE UNIT SAFELY Transmitter Micro USB cable for charging (*1) *1: Use a standard USB AC adaptor (5 V/over 0.5 A) for charging. |
