ASRock Intel Z790 PG Lightning PCIe 5.0 DDR5 ATX Open Box Motherboard

Open Box ASRock Z790 PG Lightning, Intel Z790, S 1700, DDR5, SATA3, PCIe 5.0, 4x M.2, 2.5GbE, USB 3.2 Gen2, ATX

Thumbnail 1 : ASRock Intel Z790 PG Lightning PCIe 5.0 DDR5 ATX Open Box Motherboard Thumbnail 2 : ASRock Intel Z790 PG Lightning PCIe 5.0 DDR5 ATX Open Box Motherboard Thumbnail 3 : ASRock Intel Z790 PG Lightning PCIe 5.0 DDR5 ATX Open Box Motherboard Thumbnail 4 : ASRock Intel Z790 PG Lightning PCIe 5.0 DDR5 ATX Open Box Motherboard
Scan code: LN142549 Manufacturer code: 90-MXBKA0-A0UAYZ
Order now and get it tomorrow, Mon 15th Apr
£189.98
Get it Tomorrow, 15 AprIn stock
From £17.22 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £17.22
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £189.98
Total inc. interest: £206.53
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 15th Apr to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

14+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.


PCIe 5.0 + Surface-Mount Tech

Compared to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximise stability under high speeds, a key breakthrough to fully support the lightning speeds of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable of perform up to a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.


Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.


POLYCHROME RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronise RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects


PCIe Gen4 x4 for SSD

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.


Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Features


• Supports 13th Gen & 12th Gen Intel® Core™ Processors.
• 14+1+1 Phase Power Design, Dr.MOS for VCore+GT.
• 4 x DDR5 DIMMs, supports up to 6800+(OC).
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key-E for WiFi.
• Graphics Output Options: 1 HDMI, eDP.
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio.
• 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 3 Hyper M.2 (PCIe Gen4x4), 4 SATA3.
• 1 USB 3.2 Gen2x2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 9 USB 3.2 Gen1 Type-A (5 Rear, 4 Front), 3 USB 2.0 (1 Rear, 2 Front).
• Realtek 2.5G LAN.

Specifications
Core Specifications
Edition Z790 PG Lightning
Form Factor ATX
CPU Socket 1700
Chipset Intel Z790
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400+(OC)
  • DDR5 - 6600+(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 2 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen4x4/SATA
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x4
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 1 x Front Panel Audio Header
  • 4 x M.2
  • 1 x Power LED / Speaker Header
  • 1 x RGB LED connector
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 2 x USB 3.2 Gen 1
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Dragon RTL8125BG (2.5GbE LAN)

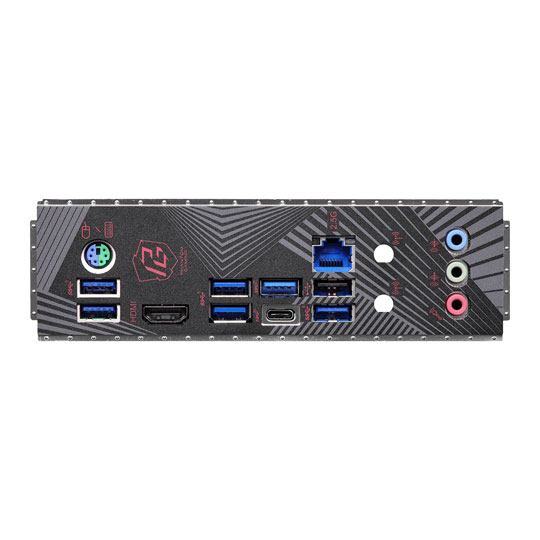

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x BIOS Flashback Button
  • 1 x Front Speaker Out
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x USB 2.0
  • 5 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 2 x Wi-Fi antenna connector holes
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 50 x 305 mm
Note
Additional Information
Scan Code LN142549
Model Number 90-MXBKA0-A0UAYZ
GTIN 4710483940965
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
