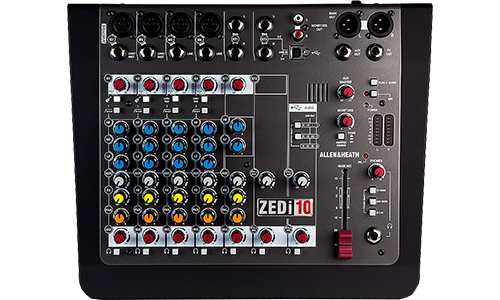

(Open Box) Allen & Heath - ZEDi-10
10-Channel Hybrid Compact Mixer & USB Interface
Ideal For The Quality ConsciousThe Allen & Heath ZEDi-10 brings together a rugged build with the hands-on control of an analogue mixer and a high quality 4 x 4 USB interface, making it a perfect all-round choice for musicians, recording artists and venues. If you're bouncing ideas around at home, performing live or recording tracks to share on YouTube and Soundcloud, ZEDi-10 is a versatile companion for each step of your creative journey.
The studio quality, 24-bit / 96kHz, 4×4 USB interface makes capturing stunning multitrack recordings simple, directly from the mixer to a Mac or PC without the need for any additional equipment. Featuring the new GSPre boutique preamp design, developed from the renowned GS-R24 studio recording console, the ZED hosts impressively low noise and massive headroom, with a signature analogue warmth and depth. Guitarists will be pleased to know that two of ZEDi-10’s mono channels feature Guitar DI high impedance inputs, so guitars can be plugged straight into the mixer without the hassle and expense of carrying separate DI boxes.
Amazing Features
• 4 in, 4 out USB Audio Interface (24-bit/96kHz)
• 4 Mic / Line Inputs with separate XLR and TRS jack sockets
• 2 Guitar DI high impedance inputs, eliminating the need for DI boxes
• 4 Mic / Line Inputs with separate XLR and TRS jack sockets
• 3 band EQ for easy creative and corrective tonal shaping
• FX out for connecting external effects units
• Cubase LE Software & Cubasis LE App included
• 2 Stereo Inputs with TRS jack sockets
The Best of Both Worlds
MIXER + USB INTERFACEZEDi-10 gives you the best of both worlds, incorporating a studio quality 4 in / 4 out, 24-bit/96kHz USB audio interface for simple multitrack recording and playback to/from a Mac or PC, or to an iOS device using the iOS camera kit. The USB output source can be set up in several different ways to suit your workflow.
Cubase Software Included
CUBASE LE MUSIC PRODUCTION SOFTWAREIncluded with the ZEDi-10 is the acclaimed Cubase LE software. Offering powerful yet easy-to-use software tools for audio recording, editing, MIDI sequencing and mixing. Its diverse range of proven editing and sequencing tools can be used for a wide range of music styles and areas of application. From singers and songwriters recording vocal lines to rock bands jamming in their rehearsal room, Cubase LE is as easy as it gets, with outstanding audio quality as well as time-saving recording and editing functionality.
CUBASIS LE MOBILE MUSIC PRODUCTION APPThe mixer also comes bundled with the Cubasis LE app. Cubasis LE is the compact version of Steinberg’s streamlined, multitouch sequencer for the iPad, providing the same look and feel of its bigger brother Cubasis. Designed especially for quick and simple operation, Cubasis LE makes recording, editing and mixing a breeze.
Exceptional Preamp Design
EXCEPTIONAL AUDIO QUALITYZEDi-10 comes with an exceptional new preamp design, made by analogue guru, Mike Griffin and developed from his highly acclaimed GS-R24 studio recording console.
Known as GSPre, the preamps deliver impressively low noise and massive headroom, and the warmth and depth that Allen & Heath’s analogue range is known for.

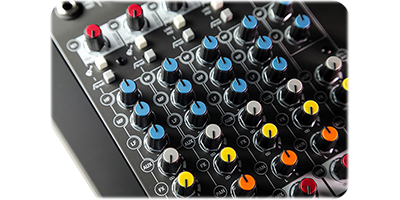

For tonal shaping, the precise 3 band MusiQ EQ controls have been carefully calibrated for responsiveness and precision, making it easy to shape and enhance each musical source.
Legendary Touring Grade Standards
ROAD TOUGHAll ZED mixers are designed and built to Allen & Heath’s legendary touring grade standards to offer long life in the toughest environments. All channels are on individual, vertical circuit boards and all rotary controls are secured to the front panel with a steel nut to resist against impact damage.

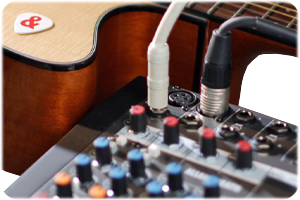

MADE FOR GUITARSZEDi-10 comes with two Guitar DI high impedance jack inputs, so guitars can be plugged straight into the mixer without the need for DI boxes. That’s one less piece of gear to buy, carry and set up.
IT’S AN ALLEN & HEATHAllen & Heath has been a trusted name in professional audio since 1969. The ZED technology advances, but the commitment to audio excellence and build quality is continuous.
PERFECT FOR PODCASTSThe ZEDi-10 gives you all the tools you need to record your podcast to a professional standard, and it’s simple enough for beginners to start using within minutes.
ZEDi for Musicians
The Tech Spec
| Features | Specification | Type | Analogue mixer with USB interface |
|---|---|
| Channels | 10 |
| Computer Connectivity | USB (4 x 4) |
| Faders | 1 x 60mm Main Mix fader |
| Inputs - Mic Preamps | 4 |
| Phantom Power | 4 |
| Inputs - Line | 4 x 1/4" TRS (2 x instrument high impedance) |
| Inputs - Other | 4 x 1/4" TRS (stereo paired) |
| Outputs - Main | 2 x XLR (left, right), 2 x RCA (stereo) |
| Outputs - Other | 1 x 1/4" (aux out), 1 x 1/4" (FX out/footswitch) |
| Aux Sends | 1 x Aux send, 1 x FX send |
| Headphones | 1 x 1/4" |
| USB | 1 x USB Type B |
| EQ Bands | 3-band EQ |
| Software | Cubase LE (included) |
| Dimensions | Width: 13.1" Height: 3.8" Depth: 10.8" |
| Weight | 4.85 lbs. |
