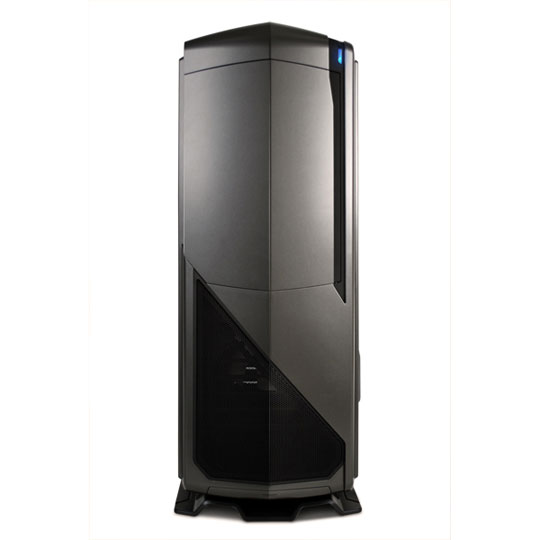

NZXT Phantom 820 PC Case
Maximize the potential by mounting up to nine fans to achieve unrivalled airflow in your chassis. Push the envelope and utilize liquid cooling systems that feature a push-pull configuration with top 280/360mm and bottom 240/280mm radiators up to 60mm thickness for unmatched performance.
In addition, a rugged base design lifts the enclosure above the ground for display and increased airflow. The Phantom is reinvented again by following it's legacy of remarkable asymmetrical and award winning design.
Features • Fully equipped with one 140mm and three 200mm fans for the high airflow and low noise
• Integrated HUE lighting for illuminating the exterior/interior of your enclosure with option to turn on/off and allow you to customize the colors at your heart’s content
• High-end water cooling solutions up to three fans for a push-pull configuration: 90mm of internal top space with top 280/360mm and bottom 240/280mm radiator support for unmatched liquid cooling
• State-of-the-art integrated 4 channel digital fan controller with 15 watts per channel and LED indicators that progressively gets brighter on high speeds and dimmer for low settings
• Easily removable filters located in the top, front, side, and bottom to prevent dust from entering your rig and simple maintenance
• Adjustable interior pivot 120/140mm fan slot for directional airflow
• Removable HDD cage and large storage capacity for 6 hard drives
• Dual USB 3.0, quad USB 2.0, microphone, and audio jack along with a SD media card reader for high-speed data transfer and quick access to multimedia
• Stylish acrylic window with a view to show off the interior of your rig
• Unrivalled Cooling Capacity to mount up to nine fans for a maximum airflow
• Rear I/O white light for visibility in dark environments with a toggle switch
• Extruded right side panel for an elegant look and achieves 36mm clearance for cable wire management
• Equipped with a stylish pedestal that lifts your enclosure off the ground for increased airflow.
|Case Edition||Phantom 820|
|Case Form Factor||Full Tower|
|Motherboard Form Factor||
|Front/ Side/ Top Panel||
|Front Radiator Compatibility|
|Top Radiator Compatibility|
|Bottom Radiator Compatibility|
|Rear Radiator Compatibility|
|Side Radiator Compatibility|
|Power Supply Form Factor||ATX|
|Max PSU Length|
|Max CPU Cooler Height||183 mm|
|Max VGA Card Length||333 mm|
|Dimensions||235 x 650 x 612 (WxHxD mm)|
|Weight||15 kg (Approx)|
