Scan code: LN110634 Manufacturer code: N7-Z49XT-B1

NZXT Intel Z490 N7 Matte Black ATX Motherboard

NZXT N7 Z490 Matte Black, Intel Z490, S 1200, DDR4, SATA3, 2x M.2, 2-Way CrossFire, 2.5GbE, ax WiFi, USB 3.2 Gen2, ATX

Thumbnail 1 : NZXT Intel Z490 N7 Matte Black ATX Motherboard Thumbnail 2 : NZXT Intel Z490 N7 Matte Black ATX Motherboard Thumbnail 3 : NZXT Intel Z490 N7 Matte Black ATX Motherboard Thumbnail 4 : NZXT Intel Z490 N7 Matte Black ATX Motherboard NZXT Intel Z490 N7 Matte Black ATX Motherboard : video thumbnail 1
Scan code: LN110634 Manufacturer code: N7-Z49XT-B1
£219.98Item overdue since 09 November 2020
Pre order
From £10.56 / month (APR 14.9%)
Monthly Payment: £19.75
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £236.97
Monthly Payment: £10.56
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £253.38
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Matte Black N7 Intel Z490 Wireless Gaming Motherboard from NZXT

NZXT N7 Black

Gaming Motherboard with Wi-Fi and CAM FeaturesLeveraging more than 14 years of professional PC building know how, NZXT have given us the N7 Z490 ATX Motherboard. Designed around the intel Z490 chipset this stylish matte black motherboard delivers everything you need to build a powerful, aesthetically pleasing gaming battle-station. Boasting built-in Wi-Fi 6 connectivity, key features from the NZXT RGB and Fan Controller, allowing intuitive control of four RGB lighting channels and seven fan channels through CAM. Lighting accessories from all manufacturers are supported. with dual M.2 connectors and adaptive noise reduction technology to optimise your cooling/noise. You can’t build a quieter, better-looking system as easily as you can with the new N7 Z490 motherboard.

Intel Z490Chipset

LGA 1200CPU Socket

ATXForm Factor

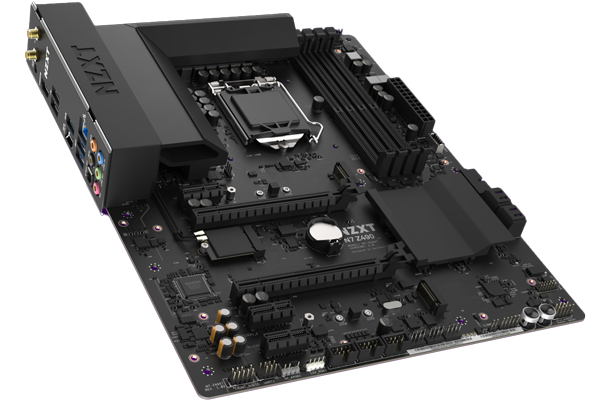

Whats Under the Cover?

Ram-Packed Full of Features Built with stunning craftmanship the N7 features a unique all metal cover that provides a clean design that blends seemlessly with your chassis, whats underneath the cover is sure to surprise you as the N7's layout has been optimised and streamlined for simple installation and easier setup all the way to its headers.

USB Ports
• 1 x USB 3.2 Gen 2 ports (1 at back panel [blue])
• 1 x USB 3.2 Gen 2 Type-C (at back panel)
• 1 x USB 3.2 Gen 2 front panel port (For USB Type-C)
• 4 x USB 3.2 Gen 1 ports (2 at back panel [blue], 2 at mid-board)
• 8 x USB 2.0 ports (2 at back panel, 6 at mid-board)

4x DIMM Slots
•Non-ECC, unbuffered DDR4 memory
• Dual Channel Architecture
• Maximum capacity of 128GB
• Support Intel® Extreme Memory Profile (XMP) 2.0

Expansion Slots
• 2 x PCIe 3.0 x16 (x16 or dual at 16/x4)
• 3 x PCIe 3.0 x1

Storage Capabilities
• 1 x M.2 type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode)
• 1 x M.2 type 2242/2260/2280 (PCIe 3.0 x4 mode only)
• 4 x SATA 6Gb/s ports

Connectivity Options
• Realtek® RTL8125BG 2.5G LAN
Intel® Dual Band Wireless-AX200 Wi-Fi 6
• Wi-Fi 802.11 a/b/g/n/ac/ax
• Supports dual band frequency 2.4/5GHz
• Supports MU-MIMO
• Bluetooth V5.1

Honorable Mentions
• 2 x NZXT RGB LED connectors
• 1 x 5V Addressable RGB LED connector
• 1 x 12V RGB LED connector
• Realtek® ALC1220 Codec 8-Channel High Definition Audio,
32-bit /192KHz DAC
• LGA socket 1200 for Intel® 10th Generation
Core™ i9/ Core™ i7/ Core™ i5/ Core™ i3 Processors

>

Intelligent Control Straight from the Box

What are you waiting for? Everything you need is ready out of the box and can be controlled through CAM software. The N7 Z490 includes key features from NZXT's RGB Lighting & Fan Control and GRID+ digital controllers allowing intuitive control for three RGB lighting channels and eight fan channels through CAM, making putting together and maintaining your dream rig, little more than a walk in the park.

Connections at your Fingertips

Specifications
Core Specifications
Edition N7
Form Factor ATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2400(OC)
  • DDR4 - 2666
  • DDR4 - 2666(OC)
  • DDR4 - 2800
  • DDR4 - 2800(OC)
  • DDR4 - 2933
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 3 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via SATA / M.2 / PCIe
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology 15
  • Intel® Smart Response Technology
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 5 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x Front Panel Audio Header
  • 1 x Power button
  • 1 x Reset Button
  • 2 x RGB Header
  • 1 x RGB LED connector
  • 4 x SATA III - 6Gb/s
  • 3 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
  • 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x HDMI 1.4b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN110634
Model Number N7-Z49XT-B1
GTIN 5060301696055
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
48 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
NZXT
