NZXT Black/Red H510 Mid Tower Windowed PC Gaming Case
NZXT H510, Black/Red, Mid Tower Chassis w/ Tempered Glass Window, 2x 120mm Fans, USB 3.1 Gen2 Type-C, ATX/mATX/mITX
By DPD On 13th Jul
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

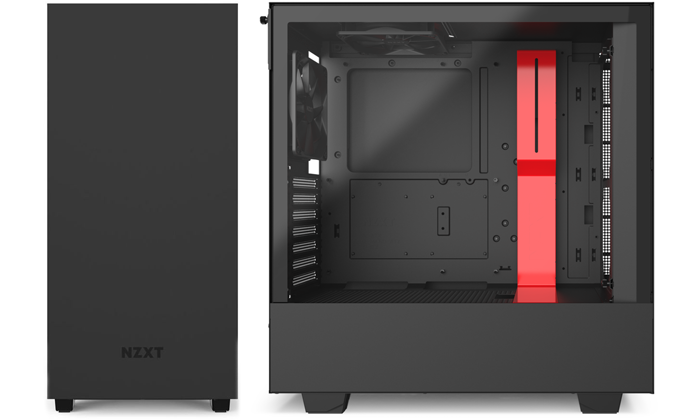

NZXT H510 Black/Red Tempered Glass Case
A SIGNATURE ELEGANT DESIGN FROM NZXTThe H510 showcases the signature design of the NZXT H Series cases. You can easily build a powerful system with plenty of options for storage and cooling due to the design of the elegant all-steel build, which includes the iconic cable management system to streamline building and upgrading your system. The H510 includes two Aer F* fans and a seamless tempered glass side panel to showcase your build.
All-Steel Construction with the Sleek H Series Design
PREMIUM BUILD WITH COLOUR VARIANTSThe H-Series is an elegant all-steel construction design and is shared across all sizes in the new H-series which come in four different colour variants to match your taste. The tempered glass panel and signature PSU shroud with an iconic cable bar are purposely designed to showcase your beautiful builds.
System Installation Made Easy
All-New Cable Management System NZXT have designed a new cable routing kit with pre-installed channels and straps on the back of the motherboard so that you are not spending as much time doing cable management. There is also an upgrade to NZXT’s signature cable bar as it can now be adjusted. The H-Series layout ensures you’ll enjoy building your PC as much as you enjoy gaming on it.
Provides a High Speed Connection for All your Devices
Get instant superfast response with USB Type-CWith a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC.

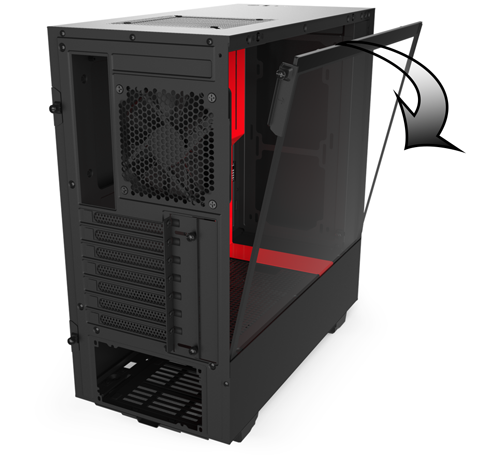

Easy to Access Tempered Glass Side Panel
maintain your pc quickly and efficientlyGet easy access to your inner components with a thumb-screwed Tempered Glass side panel that shows off your handiwork and provides the ability to perform quick maintenance on your machine without the need for a toolkit.
Water-Cooling Installation Simplified
FOR BOTH ALL IN ONE AND CUSTOM LOOP WATER-COOLING With the H510 series, NZXT have simplified the process of water-cooling installation: a front drop-in bracket is designed for radiators up to 280mm, and for those who have custom-loop systems there is an integrated reservoir mounting system in place. Aer F 120mm fans are included for optimal internal airflow, front and PSU intakes are fully filtered to help preserve your system’s clean looks.
|Core Chassis Specifications|
|Case Form Factor||Mid Tower|
|Motherboard Form Factor||
|I/O, Bays & Expansion|
|Front/Side/Top Panel I/O||
|Standard Expansion Slots||7|
|Vertical Expansion Slots|
|Fans & Filters|
|Fans Included||2 x 120mm|
|Liquid Cooling Support|
|Front Radiator Compatibility||1 x 120/140/240/280mm|
|Top Radiator Compatibility|
|Bottom Radiator Compatibility|
|Rear Radiator Compatibility||1 x 120mm|
|Side Radiator Compatibility|
|Max CPU Cooler Height||165 mm|
|Max GPU Card Length||381 mm|
|Cable Routing Space||19 ~ 23mm mm|
|Window Configuration||1 x Main Side|
|Window Construction||Tempered Glass|
|LED Lighting Functionality|
|LED Lighting Emitters|
|LED Lighting Colour|
|LED Lighting Support & Control|
|Power Supply Compatibility|
|PSU Wattage (If Included)|
|PSU 80+ Rating (If Included)|
|PSU Mounting Location||Bottom Mount, Rear|
|Max PSU Length|
|Chassis Physical Specifications|
|Chassis Contruction Materials||SGCC|
|Dimensions||210 x 460 x 428 (WxHxD mm)|
|Weight||6.8 kg (Approx)|
