Novation Circuit Mono Station - Grid Instrument / Analogue Synthesizer

Novation Circuit Mono Station - Grid Instrument, Analogue Paraphonic Synthesizer, Sequencer, Velocity Sensitive Pads

Scan code: LN80883 Manufacturer code: NOVSYNTH08 Request call
£479.00Item due on 05 June 2017
Pre order
Pay on Scan Finance with a 10% deposit from just £11.96 / month (APR 15.9%)
High End
Free Delivery Delivery options Free By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview
Novation's Next-generation Sequenced Monosynth

The Ultimate Crossover
Novation have a little bit of history when it comes to synths, with legendary analogue monosynths like the Bass Station and analogue modelled polyphonic beasts like the Supernova I and II. The Circuit Mono Station is a next generation sequenced monosynth originating from the DNA of the Bass Station II with the three sequencer tracks that benefit from the 32 RGB velocity-sensitive pads that can be found on the Circuit. Circuit Mono Station comes packed with two oscillators, three distortion modes and a multi-mode filter with high-pass, low-pass and band-pass capability. The sync and tuning of each oscillator can be individually controlled, with a choice of four waveshapes - sawtooth, triangle, square and sample + hold. We also have a sub-oscillator, ring mod and noise generator. Circuit Mono Station also introduces a powerful overdrive.

Three Sequencer Tracks

2 Oscillator Sequencers + Mod Sequencer
If that's not enough Novation have included a four-by-eight modulation matrix making it possible to route from LFO with four waveshapes, envelope, sequencer or velocity giving you plenty of complex modulation options for pitch, pulse-width, amp, filter, distortion or CV.

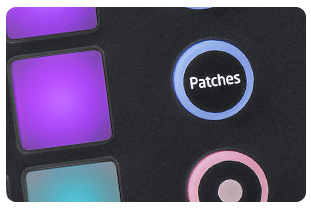

Patches At Your Fingertips

Plus All The Connections You Need
There's also a 64 slot patch bank for saving and loading your created sounds, CV and gate control, MIDI In, Out and THRU and an external audio input. You can also plug the Circuit Mono Station into a Mac or PC where unlimited patches can be managed using Components.
Features • Two oscillators with individual control of sync and tuning parameters.
• High-pass, low-pass and band-pass filters with slopes of 12dB and 24dB.
• Three distortion modes.
• Choose monophonic or paraphonic modes with individual glide control.
• Four-by-eight modulation matrix that enables complex alteration and routing.
• Load and save up to 64 patches on the device.
• Three sequencer tracks (two oscillator sequencers, one modulation sequencer).

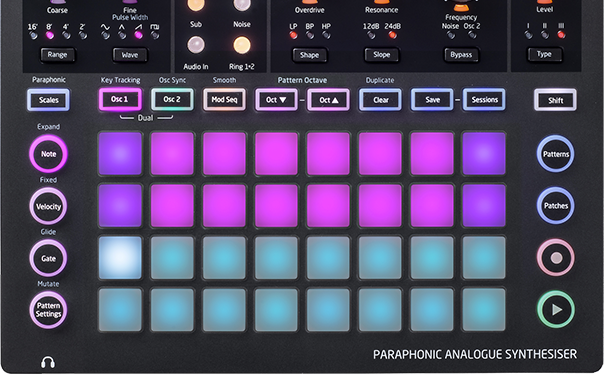

• 32 velocity-sensitive RGB pads.
• 16 scale types.
• Changeable sync rates.
• CV/Gate, CV mod plus MIDI In, Out and Thru for connecting and controlling separate hardware.
• Modulate, evolve and process sources through the audio input.
• Backup patches and sessions with Components.

In The Box
• Novation Circuit Mono Station
• USB cable
• 3 MIDI breakout cables
• 12V DC power supply included

Circuit Mono Station Included Software
• Ableton Live Lite music making software
• 4 GB of Loopmasters sounds and samples
Product Type Synthesizer
PC Interface USB
Assignable Faders
Assignable Knobs
Assignable Pads
Connectivity (Input)
  • 1 x 1/4" Unbalanced
  • 1 x Clock
  • 1 x CV
  • 1 x Gate
  • 1 x MIDI
Connectivity (Output)
  • 1 x 1/4" Balanced
  • 1 x Clock
  • 1 x MIDI
Sample Rate
Bit Rate N/A
Frequency Response (Input) N/A
Frequency Response (Output) N/A
Maximum Input Level N/A
Maximum Output Level
Dynamic Range
Dimensions (mm)
Misc. Notes + AUX CV and MIDI THRU
Package Type Retail
