End Of Life Refurbished

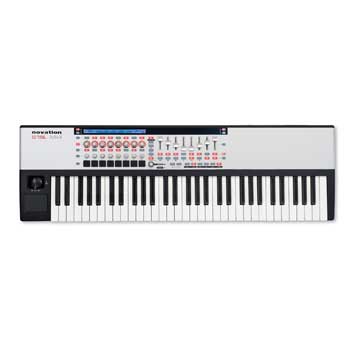

Novation 61 SL Mk II USB-Midi Controller Keyboard, (B Grade Stock)

Novation 61 SL MkII USB-Midi Controller Keyboard, 61 Keys, 2 Wheels, 8 Faders, 16 Knobs, 8 Pads, 32 LED Buttons, B GRADE

Scan code: LN69880 Manufacturer code: NOVT61SL2 Request call
End Of Life
High End
Product Overview *** This is a B Grade Stock item, there might be very slight signs of use for demonstation purposes, comes with a 12 month warranty ***

SL Mk II has been designed to give you complete control over your music making software. Novation has worked with each of the main DAW manufacturers to make sure each of the 56 knobs, faders and buttons control the things in your software that you need them to control. However, the really clever bit is that SL MkII can directly control your plug-in instruments and FX (you also get an Italian made, semi-weighted keyboard mechanism).
Automap is a piece of software that comes with all Novation controllers. It has been designed to make the job of assigning your hardware controls to various software parameters quick and easy. Automap enables knobs, faders and buttons to instantly control plug-in instruments/FX, as well as your sequencer's mixer, transport controls and more…

Open a plug-in instrument/FX, and you have instant access to all the plug-in parameters. This allows you to assign knobs, faders and buttons, by simply clicking on the software parameter, and touching the control! Features High quality professional keyboard
Velocity-sensitive, semi-weighted action keyboard with assignable after-touch. Italian made keyboard mechanism plays like a musical instrument rather than a computer accessory

Illuminated controls provide instant visual feedback
Brightly lit LED rings around the eight smooth encoders, and backlit buttons provide instant visual feedback

Giant 144-character LCD screen
Long LCD screen is large enough to show the name and value of entire rows of knobs, faders or buttons, instantly displaying what each control is assigned to

Huge array of touch-sensitive controls
Touch any knob or fader and all information (name and value of whatever it is controlling) will appear on the LCD screen above it

Automap 3 PRO Control Software
SL Mk II comes with Automap software which enables you to instantly map software parameters to faders, buttons, knobs (encoders and pots) and other controllers.


Assignable controls:
• 8 Encoders (Infinite Rotation) with touch-sensitivity and 11 segment Led rings
• 8 Pots (270 Rotation) with touch-sensitivity
• 8 Sliders with touch-sensitivity
• 32 Buttons with integrated LEDs (37 in MIDI mode]
• 8 soft feel Trigger pads
• Xpression Pad (as on existing SL)
• Xpression Stick (as on existing SL)
• Touch sensitive Speed Dial (as on Nocturn)

System buttons:
• General Automap Operation Buttons (Learn, View, Browser Groups etc.)
• Octave up/down buttons with LED indicator

The central system buttons from the SL have been simplified; there is now:
• 1 Automap button with LED to toggle Automap mode on and off (this replaces the PLAY button) – this way, manual MIDI mode is separate from Automap mode and can be avoided completely if preferred
• Template and Edit modes have been combined into one edit mode, for editing both individual controls and overall settings within one Template

Rear Panel connections are as follows:
• Data Port: 1 x USB (Win XP/Vista and Mac OSX – Not Class Compliant
• Sustain Pedal: 1 x 1/4 Jack Input
• Expression pedal: 1 x 1/4 Jack Input
• Power switch: Ext DC/USB

Minimum Operational Requirements:
• Mac OSX 10.4.0 or greater (Leopard and Snow Leopard (32-bit kernel only) also supported) or
• Windows XP with Service Pack 2 or greater (Vista 32/64 and Windows 7 32/64 also supported)

Minimum Computer spec:
• Mac - G4/1GHz, both with 256MB RAM or
• PC - Pentium 3/1GHz/256MB RAM (machines running Vista will require a higher spec)

• Size (49 key): W=965mm, H=68mm, D=293mm
• 49SL net weight: 6.1kg/unit
