End Of Life Sale

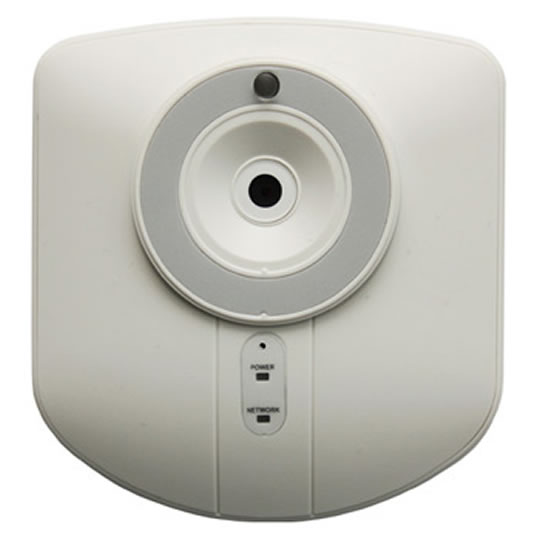

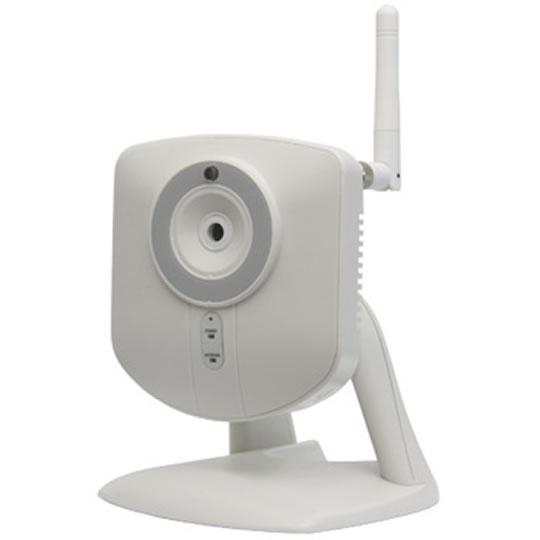

NorthQ Wireless & Wired Compact IP Camera 30fps MPEG4/m-JPEG Remote Access

NorthQ Wireless & Wired Compact IP Camera 30fps MPEG4/m-JPEG Remote Access

Scan code: LN28591 Manufacturer code: NQ-9006 Request call
End Of Life
High End
Product Overview http://www.northq.com/products/network/nq9006.html - Demo Video

Wired/Wireless Compact IP Camera
It is a user-friendly Indoor IP Camera, supporting both wired and wireless for easy installation. Whether for Home, Business or Public Facility surveillance, or just for fun, this IP Camera has the features the users need-all at an affordable price.

Maximum "Bang for the Buck", Excellent Price-Performance
Despite its compact size, NorthQ camera features two-way audio capability and excellent video quality- with VGA resolution at full 30 frames-per-second, either MPEG4 or M-JEPG compression, and video latency as short as 0.2 second or less.

It supports both wired and wireless connection for easy installation. The video surveillance functions such as motion detection, alarm notification…etc. are all included with the video monitoring software bundled with the IP camera-at no extra charge.
Features • Video : Image Sensor 1/4" CMOS, VGA Resolution
• Lens F2.0 Fixed Focus, Effective Range: 0.2M to infinity
• Compression MPEG-4/M-JPEG Dual Stream
• Resolution Support 640x480, 320x240, 160x120
• Frame Rate Up to 30 frame per second in VGA (640x480)
• Image Control AWB, AGC, Contrast, Brightness
• Video Options Motion-Detection, Time Stamp, Text Overlay
• 3GPP [email protected], MPEG-4 for mobile phone viewing

Network : Protocols

• Operating System: Linux
• Management Interface: Windows Setup utility, Web based user interface
• Client Support: Web Browser, Windows Utility
• Security: Username and Password
• E-mail Notification Triggered by motion detection
• Users: 5 simultaneous users

• Standard: IEEE 802.11b and 802.11g
• Operation Modes: Infrastructure/Ad-Hoc
• Range Indoor: 50m
• Encryptions: WEP 64 Bits/128 Bits, WPA-PSK
• Frequency: 2.4~2.4835GHz, DSSS
• Antenna: 2dbi, Detachable

• CPU SC1100 SOC with H/W MPEG-4/M-JPEG Codec
• Flash ROM 4 Megabytes
• SDRAM 32 Megabytes
• LAN Ethernet 10/100BaseT
• LED Indicators Dual color LED for Power, Active, Network

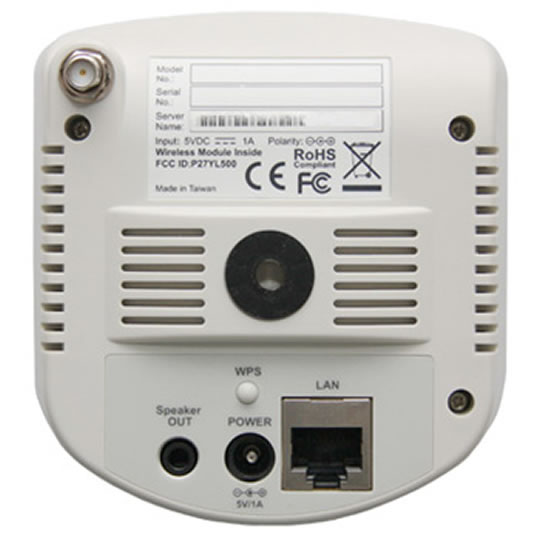

• Connector Ethernet RJ-45, SPK, DC Power, Reset
• WPS Button Push button for WPS wireless association
• Privacy Button Push button for video enable/disable
• Power Adapter 5V/1A, 100/240 VAC
• Certification CE/FCC
• Dimensions (HxWxD) 96 x 90 x 36 mm (3.8" x 3.5" x 1.4")
• Weight 131g (0.29lb.) without stand, 256g (0.56lb.) with stand
