Noctua NH-U9-DX-4189 4U Intel LGA4189 Cooler

Noctua NH-U9-DX-4189 4U CPU Cooler, 2x 92mm Fan, Dual Tower, Copper Base, Aluminium Heatsink, Intel Xeon LGA4189

Thumbnail 1 : Noctua NH-U9-DX-4189 4U Intel LGA4189 Cooler Thumbnail 2 : Noctua NH-U9-DX-4189 4U Intel LGA4189 Cooler Thumbnail 3 : Noctua NH-U9-DX-4189 4U Intel LGA4189 Cooler
Scan code: LN120406 Manufacturer code: NH-U9-DX-4189
Order now and receive it by Monday, 30th May
Get it Saturday, 28 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 30th May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

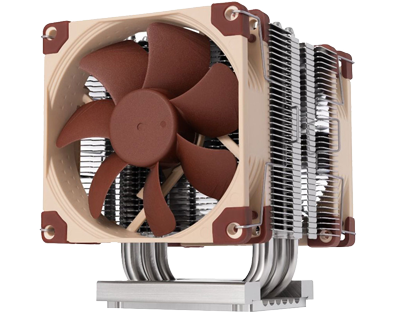

Noctua DX Series 4U Intel Xeon LGA4189 CPU Cooler

Noctua DX CPU Cooler

Strong performance and 4U compatibility Noctua’s DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. Based on the proven, 92mm size NH-U9 heatsink and equipped with two of Noctua’s award-winning, PWM controlled NF-A9 92mm fans, it combines strong performance with excellent compatibility for 4U systems and other space-restricted applications. The NH-U9’s direction of airflow is perpendicular to the long axis of the LGA4189 socket, so it is ideal for workstation builds where the top PCIe slot must not be blocked and this orientation is required for having the cooler exhausts towards the I/O panel. Topped off with the professional SecuFirm2™ mounting system and pre-applied NT-H1 thermal compound, the NH-U9 DX-4189 forms a complete premium quality package for quietly cooling LGA4189 based Xeon workstations and servers.

Please note: The NH-U9 DX-4189 is a dedicated version for the Intel LGA4189 socket. Due to its customised larger base, it cannot be used on most other sockets and is incompatible with Noctua’s standard mounting kits.
The plastic CPU carrier frame supplied with the cooler is for LGA4189-4 (P4) only. LGA4189-5 (P5) systems use the same mounting mechanism systems but require a different CPU carrier frame. Please contact us at [email protected] if you would like to use the cooler on a LGA4189-5 (P5) type system.

LGA4189Socket Compatibility

Dual TowerCooler Form Factor

2 x 92mmIncluded Fan Configuration

Custom Designed Cooling Features

6-year Manufacturer’s Warranty Noctua products are renowned for their impeccable quality and outstanding longevity. True to this legacy, the NH-U9 DX-4189 heatsink is built to last, and like all Noctua fans, the supplied NF-A9 units feature an MTTF rating of more than 150,000 hours. The entire package comes with a full 6-year manufacturer’s warranty.

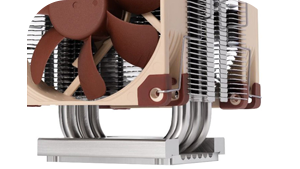

Enlarged Contact SurfaceAt 70x56mm, the heatsink’s copper contact surface is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of Intel’s LGA4189-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.


LGA4189-4 (P4) CPU Carrier FrameThe scope of delivery includes an LGA4189-4 (P4) type CPU carrier frame for Intel Ice Lake-SP and Ice Lake-64L based processors (Whitley platform). However, the heatsink’s SecuFirm2 mounting system also supports P5 type LGA4189 sockets (LGA4189-5) for Intel Cooper Lake based processors. (CPU carrier frames for LGA4189-5 are available on request via [email protected]).

DX series for Intel Xeon, Customised for LGA4189


Dual NF-A9 PWM Fans The NH-U9 DX-4189 is equipped with two of Noctua’s award-winning NF-A9 92mm fans. This push/pull dual fan configuration makes it possible to achieve a level of cooling performance that is remarkable for such a compact cooler and comes close to the bigger NH-U12S DX-4189. The supplied y-cable makes it possible to power and control both fans simultaneously from a single motherboard fan header. First introduced in 2008, Noctua’s DX line CPU coolers have become a standard choice when it comes to quiet, premium grade air cooling solutions for Intel Xeon processors. Thanks to their superior acoustic efficiency, they are ideal for workstations and servers that run in noise sensitive environments (e.g. audio/video production, content creation, engineering, etc.).

SecuFirm2 Mounting System with Standard Intel Parts Integrating standard Intel parts such as the anti-tilt mechanism, Torx T30 PEEK nuts and LGA4189-4 (P4) CPU carrier frame, the cooler’s mounting system is fully compliant with Intel’s installation guidelines and provides a familiar mounting procedure for experienced LGA4189 users. A Torx T30 mounting tool is included.

Cooler Specifications
Edition NH-U9-DX-4189
Cooler Form Factor Dual Tower
Cooler Features
  • Aluminium Fins
  • Copper Base
  • Copper Heatpipes
Socket Compatibility 4189
Max. TDP
Fan Specifications
Included Fan Configuration 2 x 92mm
Fan Edition Noctua NF-A9 PWM
PWM Fan Yes
Fan Bearing Type SSO2
Fan Colour Beige/Brown
LED Lighting
Fan/Pump Connectors
Max. Fan Speed 2000 rpm
Max. Fan Airflow
Max. Air Pressure
Max. Sound Level
Cooler Materials Aluminium / Glass
Included TIM (Thermal Interface Material) NT-H1 High-Grade Thermal Compound (Pre-Applied)
Dimensions & Weight
Heatsink/Radiator Dimensions 95 x 125 x 71 mm (WxHxD)
Total Dimensions 95 x 125 x 120 mm (WxHxD)
Weight 895 g
Additional Information
Scan Code LN120406
Model Number NH-U9-DX-4189
