Noctua NH-D9 DX-4189 4U Intel LGA4189 Cooler

Noctua NH-D9 DX-4189 4U CPU Cooler, 2x 92mm Fan, Dual Tower, Copper Base, Aluminium Heatsink, Intel Xeon LGA4189

Thumbnail 1 : Noctua NH-D9 DX-4189 4U Intel LGA4189 Cooler Thumbnail 2 : Noctua NH-D9 DX-4189 4U Intel LGA4189 Cooler Thumbnail 3 : Noctua NH-D9 DX-4189 4U Intel LGA4189 Cooler
Scan code: LN120404 Manufacturer code: NH-D9-DX-4189-4U
£99.98
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
From £8.98 / month (APR 14.9%)
Monthly Payment: £8.98
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £107.69
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 18th Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

NH-D9 DX-4189 4U

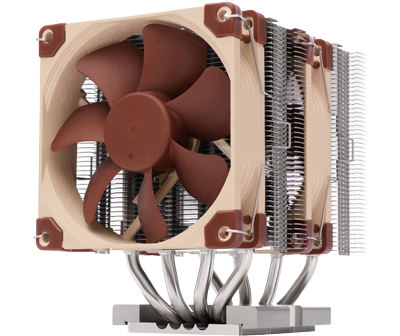

Noctua’s DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. The NH-D9 DX-4189 4U features a larger, custom-designed contact surface for LGA4189 platforms. Based on the proven, 92mm size NH-D9L heatsink and equipped with two of Noctua’s award-winning, PWM controlled NF-A9 92mm fans (high-efficiency 2500rpm version), it combines strong performance with excellent compatibility for 4U systems and other space-restricted applications. The NH-D9’s direction of airflow is parallel to the long axis of the LGA4189 socket, so it is ideal for server builds where the cooler’s fans should work in tandem with the airflow inside the chassis, or for workstation builds where this orientation is required for having the cooler exhaust towards the top of the case. Topped off with the professional SecuFirm2™ mounting system and pre-applied NT-H1 thermal compound, the NH-D9 DX-4189 4U forms a complete premium quality package for quietly cooling LGA3647 based Xeon workstations and servers.

Features

DX series for Intel Xeon: First introduced in 2008, Noctua’s DX line CPU coolers have become a standard choice when it comes to quiet, premium grade air cooling solutions for Intel Xeon processors. Thanks to their superior acoustic efficiency, they are ideal for workstations and servers that run in noise sensitive environments (e.g. audio/video production, content creation, engineering, etc.).


Customised for LGA4189: The new DX-4189 line coolers are dedicated, customised solutions for Intel’s professional LGA4189 platform (Whitley), which makes them an ideal fit for both Ice Lake-SP based 3rd generation Xeon Scalable CPUs (Platinum, Gold, Silver or Bronze) and W-3300 series Xeon processors for workstations (Ice Lake-64L).
Enlarged Contact Surface: At 70x56mm, the heatsink’s copper contact surface is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of Intel’s LGA4189-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.

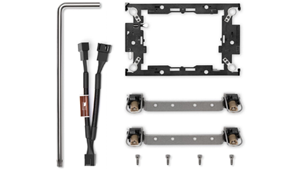

SecuFirm2™ Mounting System with Standard Intel Parts: Integrating standard Intel parts such as the anti-tilt mechanism, Torx® T30 PEEK nuts and LGA4189-4 (P4) CPU carrier frame, the cooler’s mounting system is fully compliant with Intel’s installation guidelines and provides a familiar mounting procedure for experienced LGA4189 users. A Torx® T30 mounting tool is included.
LGA4189-4 (P4) CPU Carrier Frame: The scope of delivery includes an LGA4189-4 (P4) type CPU carrier frame for Intel Ice Lake-SP and Ice Lake-64L based processors (Whitley platform). However, the heatsink’s SecuFirm2™ mounting system also supports P5 type LGA4189 sockets (LGA4189-5) for Intel Cooper Lake based processors. CPU carrier frames for LGA4189-5 are available on request via [email protected]
Compact 92mm Size for Best Compatibility: Thanks to its compact footprint (95x95mm with centre fan only, second fan can be installed on either side depending on available space) and a total height of only 134mm, the NH-D9 DX-4189 4U provides excellent PCIe compatibility and is small enough to fit most 4U size rack-mount enclosures.
Airflow Parallel to Long Axis of the Socket: The NH-D9’s direction of airflow is parallel to the long axis of the LGA4189 socket, so it is ideal for server builds where the cooler’s fans should work in tandem with the airflow inside the chassis, or for workstation builds where this orientation is required for having the cooler exhaust towards the top of the case.
Dual NF-A9 PWM Fans: The NH-D9 DX-4189 4U is equipped with two of Noctua’s award-winning NF-A9 92mm fans in their high-speed 2500rpm HS-PWM variant. This push/pull dual fan configuration makes it possible to achieve a level of cooling performance that is remarkable for such a compact cooler and comes close to the bigger NH-U12S DX-4189.
PWM Support and Y-Cable: The NF-A9 premium fans supplied with the NH-D9 DX-4189 4U support PWM for convenient automatic speed control through the motherboard, which allows them to run near silent at lighter loads and to speed up only when necessary. The supplied y-cable makes it possible to power and control both fans simultaneously from a single motherboard fan header.
Pre-Applied NT-H1 Thermal Compound: Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance and outstanding long-term stability. Having the paste pre-applied to the heatsink base ensures optimal bond-line thickness and saves precious time in installation. Ideal for system integrators!
Specifications
Cooler Specifications
Edition NH-D9 DX-4189
Cooler Form Factor Dual Tower
Heatpipes 4
Cooler Features
Socket Compatibility 4189
Max. TDP 1.7W
Fan Specifications
Included Fan Configuration 2 x 92mm
Fan Edition
PWM Fan Yes
Fan Bearing Type SSO2
Fan Colour Beige/Brown
LED Lighting N/A
Fan/Pump Connectors 2 x 4-pin
Max. Fan Speed N/A
Max. Fan Airflow
Max. Air Pressure
Max. Sound Level
Materials
Cooler Materials
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions
Total Dimensions
Weight
Additional Information
Scan Code LN120404
Model Number NH-D9-DX-4189-4U
GTIN 00
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
72 months
Type:
Direct
RTB Period:
12 months
