Scan code: LN116912 Manufacturer code: TCMAHD4R2

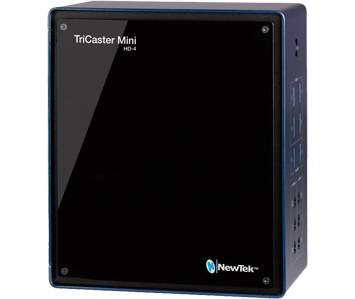

NewTek TriCaster Mini Advanced HD-4

NewTek TriCaster Mini Advanced HD-4, Switching, Streaming, Recording, 1080p29.97, NDI, 6x HDMI, 4x MiniDP, 1TB Storage

Thumbnail 1 : NewTek TriCaster Mini Advanced HD-4 Thumbnail 2 : NewTek TriCaster Mini Advanced HD-4
Scan code: LN116912 Manufacturer code: TCMAHD4R2
£6,722.48Item currently awaiting an ETA
Pre order
With a 10% deposit from just £167.91 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

NewTek - 'TriCaster Mini Advanced HD-4'

NewTek TriCaster Mini Advanced HD-4

Portable, Professional, and Equipped for End-to-End IPProduce and publish extraordinary video content for screens and audiences of all sizes with the most complete, compact multimedia studio in the world—TriCaster® Mini Advanced.

All-in-One Design

NewTek TriCaster Mini Advanced HD-4

Real Video Production, No Experience RequiredYou don’t have to be a video expert, own a studio, or know your way around a broadcast control room to deliver your message through video with network-quality results. With an all-in-one design, do-it-yourself setup, and hundreds of entry-level and advanced production capabilities, you can be on your way to captivating audiences from anywhere within minutes of opening the box.

• HD switching, streaming, and recording
• 8 external video inputs and 4 mix outputs
• Connect to compatible IP devices via NDI®
• Streaming to Facebook Live, Twitch, and more
• Real-time social media publishing

• Multi-channel recording and internal storage
• Video playback without any additional hardware
• Built-in live titling and motion graphics
• Multi-channel audio mixing
• SDI, HDMI, and case display options available

More than 100 Video Production Features

NewTek TriCaster Mini Advanced HD-4

Max PotentialMaximize your investment now and for the future. With TriCaster Advanced Edition software now included, TriCaster Mini Advanced offers more than 100 additional video production capabilities compared to the original system platform—at no additional cost.

Native Integration of NDI®

Enter the World of IP VideoConnect to the most prolific IP-based workflow in the industry right out of the box. With native integration of NDI®, NewTek’s innovative Network Device Interface technology, TriCaster Mini Advanced is instantly compatible with products from hundreds of manufacturers and developers over the network.

NewTek TriCaster Mini Advanced HD-4

Built in Effects and Transitions

NewTek TriCaster Mini Advanced HD-4

Get Creative• Use any combination of compatible video sources, including cameras, mobile devices, computers, gaming systems, streaming media, video files, graphics, images, animations, and more

• Let your imagination run wild with multi-bus mix effects, custom animated transitions, data-driven graphics, green screen compositing, live virtual sets, and more

• Personalize your production environment with customizable control and monitoring options, and automate live operations with a versatile macro automation system

Simultaneous Live Streaming

NewTek TriCaster Mini Advanced HD-4

Reach Your Audience• Live stream to multiple destinations simultaneously, including Facebook Live, Microsoft Azure, Periscope, Twitch, Ustream, YouTube Live, and more

• Share media to multiple user accounts on your favorite social networks, like Facebook, Imgur, LinkedIn, Twitter, Vimeo, YouTube, and more

• Capture and export QuickTime® and H.264 video files for VOD, post-production, replay, and archive

TriCaster Mini Advanced Models

NewTek TriCaster Mini Advanced HD-4 SDI

TriCaster Mini HD-4• HDMI video connectivity
• Native NDI® integration
• Hundreds of built-in capabilities
• 750 GB internal storage
Available here

NewTek TriCaster Mini Advanced HD-4 SDI

TriCaster Mini HD-4sdi• SDI video connectivity
• Native NDI® integration
• Hundreds of built-in capabilities
Available here

NewTek TriCaster Mini Advanced HD-4 SDI

TriCaster Mini HD-4sdi Bundle• TriCaster Mini Advanced HD4 SDI
• TriCaster Mini Control Surface
• NewTek Travel Case
Available here

The Tech Spec

Features Specification
Video Input 8 x simultaneous external video inputs, supporting any combination of compatible sources
Network Video Input Network Video Input8 x IP video inputs via NDI®, resolution-independent, with support for key and fill
Digital Video Input 4 x HDMI video connections supporting video input in any combination of standard formats, resolutions, and frame rates1
1080p: 29.97, 25
1080i: 59.94, 50
720p: 59.94, 50, 29.97, 25
SD: 59.94, 50, 25
1Available frame rates determined by model and session video standard (NTSC or PAL)
PTZ Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
Skype TX Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication
Video Output Configurable for up to 4 independent video mix outputs, with simultaneous digital and IP delivery
Network Video Output 4 x independent IP video mix outputs via NDI®
Digital Video Output 2 x independently configurable HDMI video outputs
Stream Output 2 x streaming video output, independently configurable, with simultaneous stream archive
Monitor Outputs 4 x Mini DisplayPort with multiviewer
Mix/Effect Buses (M/E) 4 x M/E buses, each supporting 2 configurable sources and 2 configurable KEY layers
1 x PREVIZ configuration and preview bus
DSK Channels 2 x DSK channels
Media 4 x media players
2 x DDR
1 x GFX
1 x Sound
15 x media buffers
5 x animation buffers
10 x graphic buffers
Keyers Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses
Virtual Sets Integrated LiveSet™ technology with 30+ live virtual sets and box effects included
DataLink Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros Record, store, edit and automate commands and user-configured operation sequences
• Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers
• Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions
• Supports control via web-based interface
Recording 5 x configurable video recording channels via IsoCorder™ technology
4 x QuickTime® archival video recorders (SHQ2 quicktime codec, 4:2:2 encoding, 24-bit audio, with timecode)2
1 x H.264 distribution video recorders (multiple profiles)
1 x MP3 audio recorder
2QuickTime Player not required for playback in common NLE applications
Signal Monitoring Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Storage 1 x 1TB internal drive
• Capacity varies by format, resolution and file specification
• Supports recording to external storage via USB 3.1 and USB-C
• Supports shared storage integration and third-party partner solutions
Grab Grab full-resolution, deinterlaced still images from external video sources and outputs
Export Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixing Integrated multi-channel audio mixer with configurable DSPs, 4 x 4 x 4 audio input channel routing, and 4 independent output mixes
Local Audio Input 4 x embedded HDMI audio inputs
1 x 1/4” (6.35 mm) balanced mic
2 x 1/4” (6.35 mm) balanced line
Local Audio Output 2 x embedded HDMI audio outputs
2 x 1/4” (6.35 mm) balanced line
1 x 1/4” (6.35 mm) stereo headphones jack
Network Audio Native support for network audio input and output via NDI®
Embedded audio supported for all NDI® input and output video signals
Integrated support3 for Dante™ networking protocol from Audinate®
3Requires Dante Virtual Soundcard license from Audinate (sold separately)
Supported Media File Formats Import, store, and play back multimedia files, with optional transcoding, including:
Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
Audio: AIFF, MP3, WAV, and more
Processing Video: Floating Point YCbCr +A 4:4:4:4
Audio: Floating Point, 96 kHz
Throughput Latency ~1.0-2.0 frames
Tally Support for network tally via NDI®
MIDI Support for standard MIDI protocol enabling third-party device control
NIC 2 x 1 Gigabit NIC
System Physical NewTek Mini system chassis, including adjustable handle and cable retention bracket
4.6 x 9.2 x 7.9 in (11.7 x 23.4 x 20.1 cm)
9 lbs (4.1 kg)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
