NewTek TriCaster Mini Advanced HD-4 SDI
NewTek TriCaster Mini Advanced HD-4 SDI, Switching, Streaming, Recording, 1080p29.97, NDI, 6x HDMI, 2x SDI, 1TB SSD
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
NewTek - 'TriCaster Mini Advanced HD-4 SDI'
Portable, Professional, and Equipped for End-to-End IPProduce and publish extraordinary video content for screens and audiences of all sizes with the most complete, compact multimedia studio in the world—TriCaster® Mini Advanced.

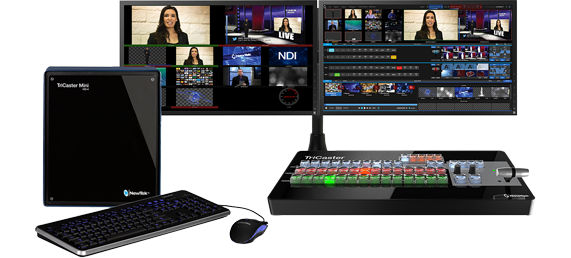

All-in-One Design
Real Video Production, No Experience RequiredYou don’t have to be a video expert, own a studio, or know your way around a broadcast control room to deliver your message through video with network-quality results. With an all-in-one design, do-it-yourself setup, and hundreds of entry-level and advanced production capabilities, you can be on your way to captivating audiences from anywhere within minutes of opening the box.
• HD switching, streaming, and recording
• 8 external video inputs and 4 mix outputs
• Connect to compatible IP devices via NDI®
• Streaming to Facebook Live, Twitch, and more
• Real-time social media publishing
• Multi-channel recording and internal storage
• Video playback without any additional hardware
• Built-in live titling and motion graphics
• Multi-channel audio mixing
• SDI, HDMI, and case display options available
More than 100 Video Production Features
Max PotentialMaximize your investment now and for the future. With TriCaster Advanced Edition software now included, TriCaster Mini Advanced offers more than 100 additional video production capabilities compared to the original system platform—at no additional cost.

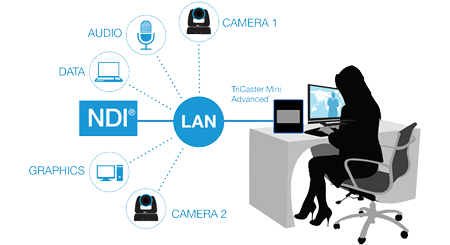

Native Integration of NDI®
Enter the World of IP VideoConnect to the most prolific IP-based workflow in the industry right out of the box. With native integration of NDI®, NewTek’s innovative Network Device Interface technology, TriCaster Mini Advanced is instantly compatible with products from hundreds of manufacturers and developers over the network.

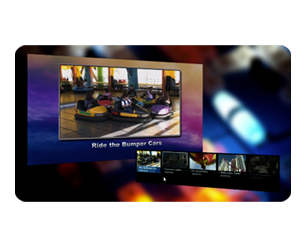

Built in Effects and Transitions
Get Creative• Use any combination of compatible video sources, including cameras, mobile devices, computers, gaming systems, streaming media, video files, graphics, images, animations, and more
• Let your imagination run wild with multi-bus mix effects, custom animated transitions, data-driven graphics, green screen compositing, live virtual sets, and more
• Personalize your production environment with customizable control and monitoring options, and automate live operations with a versatile macro automation system
Simultaneous Live Streaming
Reach Your Audience• Live stream to multiple destinations simultaneously, including Facebook Live, Microsoft Azure, Periscope, Twitch, Ustream, YouTube Live, and more
• Share media to multiple user accounts on your favorite social networks, like Facebook, Imgur, LinkedIn, Twitter, Vimeo, YouTube, and more
• Capture and export QuickTime® and H.264 video files for VOD, post-production, replay, and archive
TriCaster Mini Advanced Models
TriCaster Mini HD-4• HDMI video connectivity
• Native NDI® integration
• Hundreds of built-in capabilities
• 750 GB internal storage
Available here

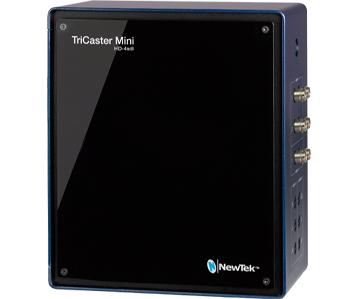

TriCaster Mini HD-4sdi• SDI video connectivity
• Native NDI® integration
• Hundreds of built-in capabilities
Available here
TriCaster Mini HD-4sdi Bundle• TriCaster Mini Advanced HD4 SDI
• TriCaster Mini Control Surface
• NewTek Travel Case
Available here
The Tech Spec
| Features | Specification | Video Input | 8 x simultaneous external video inputs, supporting any combination of compatible sources |
|---|---|
| Network Video Input | Network Video Input8 x IP video inputs via NDI®, resolution-independent, with support for key and fill |
| Digital Video Input | 4 x SDI video connections supporting video input in any combination of standard formats, resolutions, and frame rates1 1080p: 29.97, 25 1080i: 59.94, 50 720p: 59.94, 50, 29.97, 25 SD: 59.94, 50, 25 1Available frame rates determined by model and session video standard (NTSC or PAL) |
| PTZ | Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system |
| Skype TX | Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication |
| Video Output | Configurable for up to 4 independent video mix outputs, with simultaneous digital and IP delivery |
| Network Video Output | 4 x independent IP video mix outputs via NDI® |
| Digital Video Output | 2 x independently configurable SDI video outputs |
| Stream Output | 2 x streaming video output, independently configurable, with simultaneous stream archive |
| Monitor Outputs | 4 x Mini DisplayPort with multiviewer |
| Mix/Effect Buses (M/E) | 4 x M/E buses, each supporting 2 configurable sources and 2 configurable KEY layers 1 x PREVIZ configuration and preview bus |
| DSK Channels | 2 x DSK channels |
| Media | 4 x media players 2 x DDR 1 x GFX 1 x Sound 15 x media buffers 5 x animation buffers 10 x graphic buffers |
| Keyers | Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses |
| Virtual Sets | Integrated LiveSet™ technology with 30+ live virtual sets and box effects included |
| DataLink | Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more |
| Macros | Record, store, edit and automate commands and user-configured operation sequences • Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers • Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions • Supports control via web-based interface |
| Recording | 5 x configurable video recording channels via IsoCorder™ technology 4 x QuickTime® archival video recorders (SHQ2 quicktime codec, 4:2:2 encoding, 24-bit audio, with timecode)2 1 x H.264 distribution video recorders (multiple profiles) 1 x MP3 audio recorder 2QuickTime Player not required for playback in common NLE applications |
| Signal Monitoring | Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709 |
| Storage | 1 x 1TB internal drive • Capacity varies by format, resolution and file specification • Supports recording to external storage via USB 3.1 and USB-C • Supports shared storage integration and third-party partner solutions |
| Grab | Grab full-resolution, deinterlaced still images from external video sources and outputs |
| Export | Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding |
| Audio Mixing | Integrated multi-channel audio mixer with configurable DSPs, 4 x 4 x 4 audio input channel routing, and 4 independent output mixes |
| Local Audio Input | 4 x embedded HDMI audio inputs 1 x 1/4” (6.35 mm) balanced mic 2 x 1/4” (6.35 mm) balanced line |
| Local Audio Output | 2 x embedded HDMI audio outputs 2 x 1/4” (6.35 mm) balanced line 1 x 1/4” (6.35 mm) stereo headphones jack |
| Network Audio | Native support for network audio input and output via NDI® Embedded audio supported for all NDI® input and output video signals Integrated support3 for Dante™ networking protocol from Audinate® 3Requires Dante Virtual Soundcard license from Audinate (sold separately) |
| Supported Media File Formats | Import, store, and play back multimedia files, with optional transcoding, including: Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more Audio: AIFF, MP3, WAV, and more |
| Processing | Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz |
| Throughput Latency | ~1.0-2.0 frames |
| A/V Standards | HD-SDI video conforms to SMPTE 292M SD video conforms to SMPTE 259M and ITU-R BT.656 Analog audio levels conform to SMPTE RP-155 |
| Tally | Support for network tally via NDI® |
| MIDI | Support for standard MIDI protocol enabling third-party device control |
| NIC | 2 x 1 Gigabit NIC |
