NewTek TriCaster Mini Advanced HD-4 Bundle

NewTek TriCaster Mini Advanced HD-4 Bundle, TC Mini Advanced HD-4 + Mini Control Surface, 4x HDMI Inputs, 8x NDI Inputs

Scan code: LN120956 Manufacturer code: TCMAHD4-BR2
£8,965.99Item currently awaiting an ETA
Pre order
From £186.80 / month (APR 0%) or 0% for 4 months
Monthly Payment: £747.17
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £8,965.99
Total inc. interest: £8,965.99
Monthly Payment: £373.59
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £8,965.99
Total inc. interest: £8,965.99
Monthly Payment: £249.06
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £8,965.99
Total inc. interest: £8,965.99
Monthly Payment: £186.80
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £8,965.99
Total inc. interest: £8,965.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £223.94 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

NewTek - 'TriCaster Mini Advanced HD-4 Bundle'

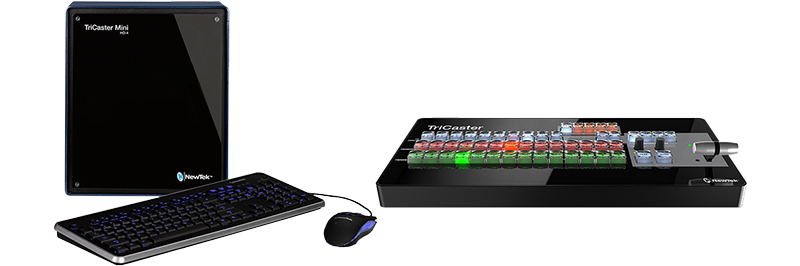

NewTek TriCaster Mini Advanced HD-4 Bundle

Portable, Professional, and Equipped for End-to-End IPProduce and publish extraordinary video content for screens and audiences of all sizes with the most complete, compact multimedia studio in the world—TriCaster® Mini Advanced.

8 NDI Video Inputs

Real Video Production. No Experience Required.You don’t have to be a video expert, own a studio, or know your way around a broadcast control room to deliver your message through video with network-quality results. With an all-in-one design, do-it-yourself setup, and hundreds of entry-level and advanced production capabilities, you can be on your way to captivating audiences from anywhere within minutes of opening the box.

• HD switching, streaming, and recording
• 8 external video inputs and 4 mix outputs
• Connect to compatible IP devices via NDI®
• Streaming to Facebook Live, Twitch, and more
• Real-time social media publishing

• Multi-channel recording and internal storage
• Video playback without any additional hardware
• Built-in live titling and motion graphics
• Multi-channel audio mixing
• SDI, HDMI, and case display options available

Over 100 Production Capabilities

NewTek TriCaster Mini Advanced HD-4 Bundle

Max potentialMaximize your investment now and for the future. With TriCaster Advanced Edition software now included, TriCaster Mini Advanced offers more than 100 additional video production capabilities compared to the original system platform—at no additional cost.

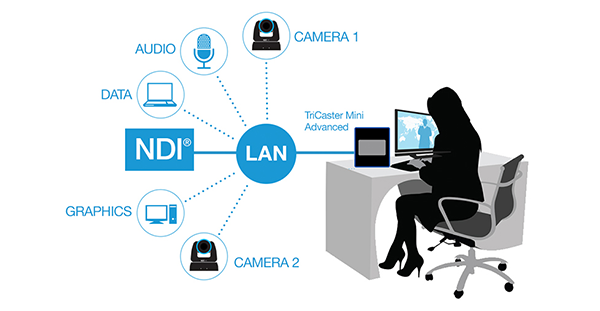

Native NDI Integration

NewTek TriCaster Mini Advanced HD-4 Bundle

Enter the World of IP Video – TodayConnect to the most prolific IP-based workflow in the industry right out of the box. With native integration of NDI®, NewTek’s innovative Network Device Interface technology, TriCaster Mini Advanced is instantly compatible with products from hundreds of manufacturers and developers over the network.

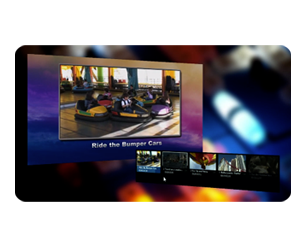

Customisable Control and Monitoring Options

NewTek TriCaster Mini Advanced HD-4 Bundle

Get Creative• Use any combination of compatible video sources, including cameras, mobile devices, computers, gaming systems, streaming media, video files, graphics, images, animations, and more
• Let your imagination run wild with multi-bus mix effects, custom animated transitions, data-driven graphics, green screen compositing, live virtual sets, and more
• Personalize your production environment with customizable control and monitoring options, and automate live operations with a versatile macro automation system

Simultaneous Live Streaming

NewTek TriCaster Mini Advanced HD-4 Bundle, Streaming, twitch, facebook, YouTube

Reach Your Audience• Live stream to multiple destinations simultaneously, including Facebook Live, Microsoft Azure, Periscope, Twitch, Ustream, YouTube Live, and more
• Share media to multiple user accounts on your favorite social networks, like Facebook, Imgur, LinkedIn, Twitter, Vimeo, YouTube, and more
• Capture and export QuickTime® and H.264 video files for VOD, post-production, replay, and archive

The Tech Spec

Features Specification
Video Input 8 x simultaneous external video inputs, supporting any combination of compatible sources
Network Video Input 8 x IP video inputs via NDI®, resolution-independent, with support for key and fill
Digital Video Input 4 x HDMI video connections supporting video input in any combination of standard formats, resolutions, and frame rates1
1080p: 29.97, 25
1080i: 59.94, 50
720p: 59.94, 50, 29.97, 25
SD: 59.94, 50, 25
1Available frame rates determined by model and session video standard (NTSC or PAL)
PTZ Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
Skype TX Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication
Video Output Configurable for up to 4 independent video mix outputs, with simultaneous digital and IP delivery
Network Video Output 4 x independent IP video mix outputs via NDI®
Digital Video Output 2 x independently configurable HDMI video outputs
Stream Output 2 x streaming video output, independently configurable, with simultaneous stream archive
Monitor Outputs 4 x Mini DisplayPort with multiviewer
Mix/Effect Buses (M/E) 4 x M/E buses, each supporting 2 configurable sources and 2 configurable KEY layers
1 x PREVIZ configuration and preview bus
DSK Channels 2 x DSK channels
Media 4 x media players
• 2 x DDR
• 1 x GFX
• 1 x Sound

15 x media buffers
• 5 x animation buffers
• 10 x graphic buffers
Keyers Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses
Virtual Sets Integrated LiveSet™ technology with 30+ live virtual sets and box effects included
DataLink Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros Record, store, edit and automate commands and user-configured operation sequences
• Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons.
• Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions
• Supports control via web-based interface
Recording 5 x configurable video recording channels via IsoCorder™ technology
4 x QuickTime® archival video recorders (SHQ2 quicktime codec, 4:2:2 encoding, 24-bit audio, with timecode)2
1 x H.264 distribution video recorders (multiple profiles)
1 x MP3 audio recorder
2QuickTime Player not required for playback in common NLE applications
System Physical NewTek Mini system chassis, including adjustable handle and cable retention bracket
• 11.7 x 23.4 x 20.1 cm
• 4.1 kg

Please Note: For the full specifications please view the table on NewTek's Website
