End Of Life

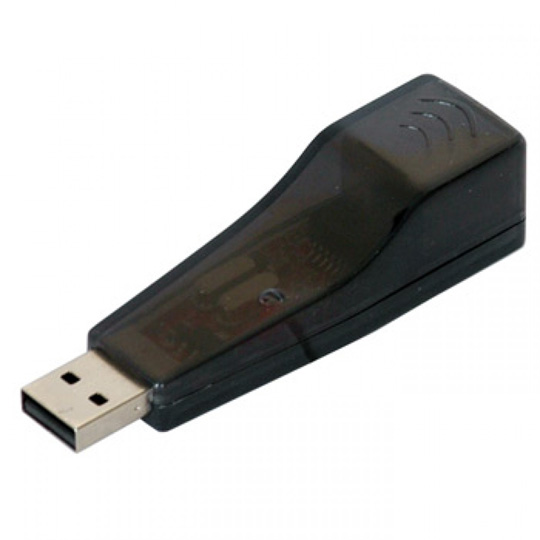

Newlink USB2 TO RJ45 Ethernet Adaptor (CDLSB-905) - Turn any USB Port in to 10/100 Ethernet Port

Newlink USB 2.0 to Ethernet Adaptor Type A (Male) to LAN 10/100 (Female)

NEWLINK
Scan code: LN17471 Manufacturer code: CDLSB-905 Request call
End Of Life
High End
Product Overview • Compliant with the USB 2.0 and USB 1.1 Specifications
• Compatible with IEEE 802.3u 100 BASE-T, TX and T4
• Single chip USB to 10/100 Mbps Fast Ethernet Controller
• Supports Bus Power, No additional Power Supply is required
• Supports Full-Duplex and Half-Duplex operations
• Provides a MII port for both Ethernet and PHY Interface
• Supports suspended mode and remote wake-up (Wake on LAN)
• PHY power down mode for power saving
• Supports Plug and Play Operation
• Connector: USB A type interface, UTP RJ45 interface
• Power and Link Status Indication Features System Requirements:
• IBM Compatible Pentium 233 Mhz or faster
• 64 Mb Ram or more
• Available USB Port
• One of the following Operating Systems: Windows 2000, Windows XP, Windows Vista, Windows 7
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
12 months
