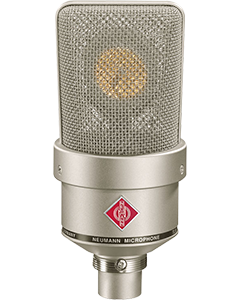

Neumann TLM103 Condenser Microphone - Nickel

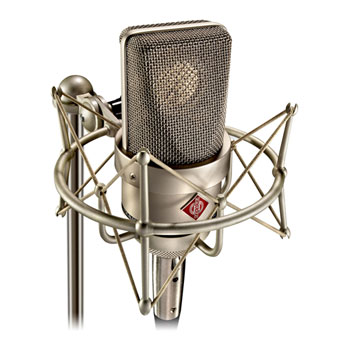

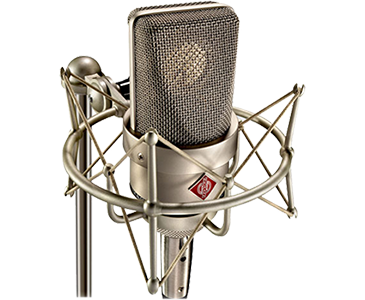

Neumann TLM103 Studio Set Nickel Condenser Microphone, Cardioid, Pressure Gradient Transducer, 20Hz - 20kHz

Neumann
Scan code: LN67382 Manufacturer code: TLM103 Studio Set Request call
£799.00
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Free Delivery Delivery options Free By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview The TLM 103* is the ideal large diaphragm microphone for all professional and semi-professional applications requiring the utmost in sound quality on a limited budget.

By utilizing the tried and true transformerless circuit found in numerous Neumann microphones, the TLM 103 features yet unattained low self-noise and the highest sound pressure level transmission. The capsule, derived from that used in the U 87, has a cardioid pattern, is acoustically well-balanced and provides extraordinary attenuation of signals from the rear.

The TLM 103 is available in satin nickel and matte black. Delivery includes an SG 1 metal swivel mount and a wooden jeweler's box.

Applications
Due to the universal cardioid pattern, straightforward handling, extremely low self-noise level, and finally, the price, the TLM 103 is predestined for all demanding applications from home recording to professional broadcasting and commercial recording studios.

Polar pattern
The TLM 103 is equipped with a large diaphragm capsule with cardioid pattern. By focusing on this pattern – used in most recording situations – the attenuation of unwanted rear sound has been optimized. Off-axis sounds are rendered naturally while isolation is increased. This also leads to a high feedback suppression when the microphone is used in live situations or where loudspeaker playback is a factor.

Acoustic features
The TLM 103 is addressed from the front, marked with the red Neumann logo on the microphone body. The K 103 large diaphragm capsule is based on the K 87, well known from the U 67 / U 87 microphones.The capsule has a flat frequency response up to about 5 kHz, and above that, a wide flat 4 dB presence boost.

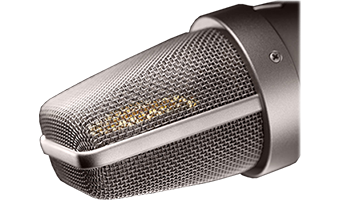

The large wire mesh headgrille protects the capsule from plosive sounds and effectively prevents pop noises. These characteristics are achieved without resorting to corrective resonance effects.

Therefore, the microphone maintains an excellent impulse response and reproduces the finest details of music and speech without coloration.

Electrical features
With just 7 dB-A / 17.5 dB CCIR the self-noise level of the TLM 103 is so reduced that even the smallest signals are reproduced basically noise-free. It is capable of handling sound pressure levels up to 138 dB without distortion.

The letters TLM stand for "transformerless microphone". With TLM technology the usual output transformer is replaced by an electronic circuit. As with traditional transformers, it ensures good common mode rejection, and prevents RF interference that may influence the balanced audio signal.

Operational safety
The entire internal construction is elastically mounted to attenuate any structure borne noise that could interfere with the TLM 103's operation. Furthermore the capsule is set on an elastic mount. The frequency range reaches below 20 Hz and thus even very low bass signals are reproduced without coloration.

Due to this low frequency extension, the TLM 103 is more sensitive to structure borne interference and wind noise. For such cases, the elastic suspension EA 1 and the windscreen WS 87 are available as accessories. For close vocal use, the PS 15 or PS 20 a pop screens are recommended.
*The design of the microphone is a registered design of the Georg Neumann GmbH in certain countries. Features • Large diaphragm cardioid microphone
• Pressure gradient transducer with with one-diaphragm capsule
• Transformerless circuitry
• Extremely low noise: 7 dB-A
• Includes swivel mount
• Straightforward handling for homerecording and professional studios
• High-quality professional equipment for limited budgets

Technical Data
• Acoustical operating principle: Pressure gradient transducer
• Directional pattern: Cardioid
• Frequency range: 20 Hz ... 20 kHz
• Sensitivity at 1 kHz into 1 kohm: 23 mV/Pa
• Rated impedance: 50 ohms
• Rated load impedance: 1 kohms
• Equivalent noise level, CCIR1): 17.5 dB
• Equivalent noise level, A-weighted1): 7 dB-A
• Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 76.5 dB
• Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 87 dB
• Maximum SPL for THD 0.5%2): 138 dB
• Maximum output voltage: 13 dBu
• Supply voltage (P48, IEC 61938): 48 V ± 4 V
• Current consumption (P48, IEC 61938): 3 mA
• Matching connector: XLR3F
• Weight: approx. 450 g
• Diameter: 60 mm
• Length: 132 mm
Specifications
Specifications
Type Condenser
Polar Pattern (Direction) Cardioid
Impedance 1k ohms
Sensitivity 23 mV/Pa
Frequency Response 20Hz - 20kHz
Wired / Wireless Wired
Connectors 1 x 3 Pin XLR
Weight 450 g
Including Shock Mount No
Including Pop Shield No
Including Mic Clip No
Powered By Phantom
