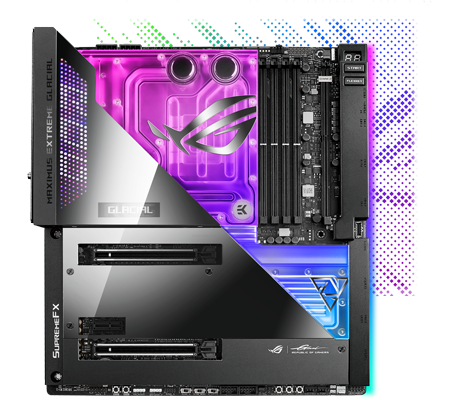

ROG Maximus Z690 EXTREME GLACIAL 12th Gen Intel ATX Motherboard

ASUS Extreme Glacial

The Z690 Flagship ROG Maximus Z690 Extreme Glacial is the pinnacle of liquid-cooled engineering. It features an eye-catching monolithic cooling system known simply as the EK UltraBlock, which can effortlessly chill the entire motherboard with a carefully engineered labyrinth of water channels, sensors, and heatsinks. The Z690 Extreme Glacial also builds upon knowledge gained from engineering the previous generation to ambitiously expand an already ample landscape of heatsinks and coolant circulation. Two additional M.2 slots now benefit from UltraBlock magic, and VRM cooling has been boosted even further to support the power stages that 12th Gen Intel Core processors can take advantage of.

Intel Z690Chipset

LGA 1700CPU Socket

12th Generation IntelCompatible CPUs

ATXForm Factor

A Breathtaking Thermal Solution

ROG X EK Ultrablock The Z690 Extreme Glacial UltraBlock is far more than a heatsink with water channels. This product of a close collaboration with industry leader EK Water Blocks is a complete solution for custom-loop motherboard cooling, covering the CPU, VRMs, onboard M.2 slots, PCH, and even the integrated LAN. EK Active Contact Cooling can keep M.2 drives at optimal temperatures, while 57 microfins swiftly channel water over the central processor. The ROG Water-Cooling Zone offers a sensor array that continually monitors coolant flow, temperatures, and seal integrity, and the PCH cooling block features a fin stack to enhance heat dissipation. Meanwhile, the UltraBlock has an aesthetic to match its performance, thanks to the industry-first AniMe Matrix display and a 2-inch OLED LiveDash that can display live system stats.

4K Recording

1. EK® ULTRABLOCK​The Ultrablock effectively cools the CPU, VRM, mid-board M.2 slot, and Z690 chipset, ensuring system stability even under sustained high load.​​

2. M.2 HEATSINKSThe M.2 heatsink keep the dual M.2 SSD at optimum operating temperature for consistent performance and reliability.​

3. M.2 BACKPLATE​SIntegrated M.2 backplates help ensure that high-performance drives deliver peak performance, even when airflow is restricted​

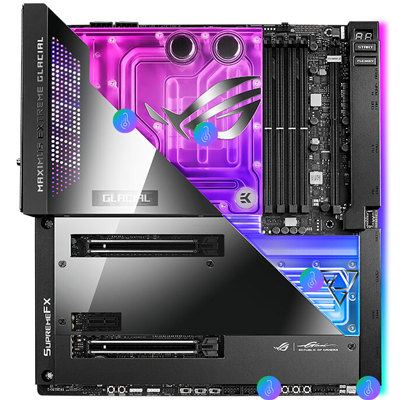

Cooler By Design

Multiple Temperature SourcesEach header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI.

4-Pin PWM Headers Every onboard header auto-detects any PWM or DC fan, with three chassis fan headers offering ASUS HYDRANODE support.

Bundled ROG Fan controller A bundled fan controller card includes six additional DC and PWM fan headers, plus two thermal-probe headers.

Water Pump+ A dedicated header can supply over 3 amps to a high-performance PWM or DC water pumps.

Water in/out A dedicated header enables monitoring of temperatures at the input/output points of any component.

Water Flow A dedicated header enables constant monitoring of flow rate throughout the entire loop.

True Performance Innovation

4K Recording

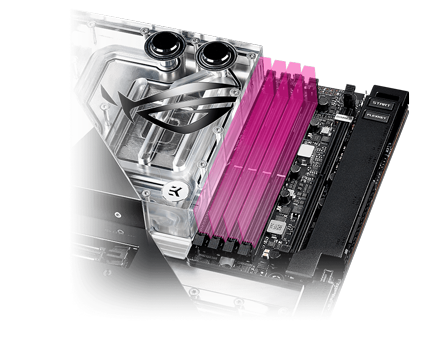

Welcome DDR5 MemoryA huge leap forwards for memory performance DDR5 memory has been unleashed. Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the Maximus Z690 lineup breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).

Your Network at Light-Speed

4K Recording

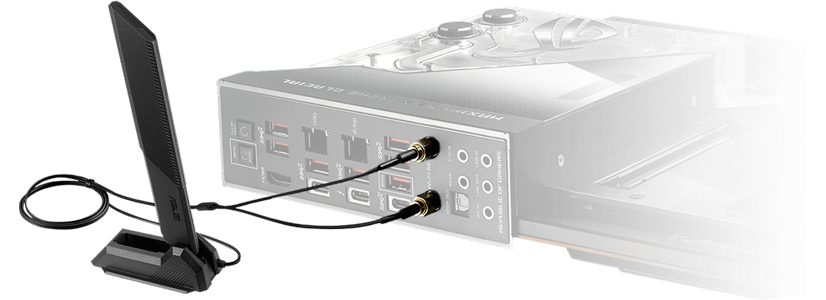

WIFI 6EOnboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.

MARVELL® AQTION 10 GBPS ETHERNETDesigned to meet the demanding requirements of power users and content creators, 10 Gbps onboard Ethernet provides a new level of home networking. With up to 10 times the bandwidth of standard gigabit Ethernet, you'll enjoy streaming uncompressed 4K UHD videos and system backups and file transfers that are faster than ever before.

INTEL® 2.5 GB ETHERNETOnboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.

Maximise Your Storage Capabilities

down

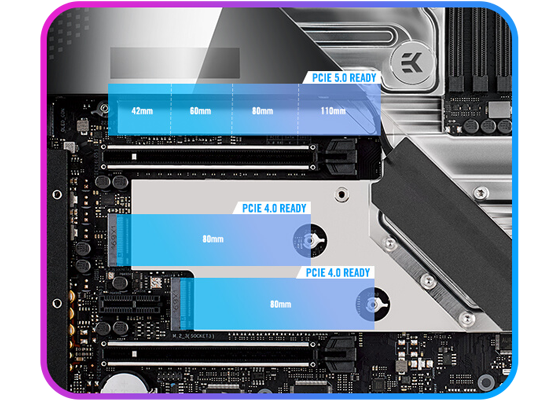

PCIe 5.0 ReadyROG Maximus Z690 Extreme Glacial is equipped with a PCIe 5.0 slot ideal for video cards and two PCIe 5.0 slots designed for M.2 drives, putting it on the cutting edge of GPU and storage device technology.

up

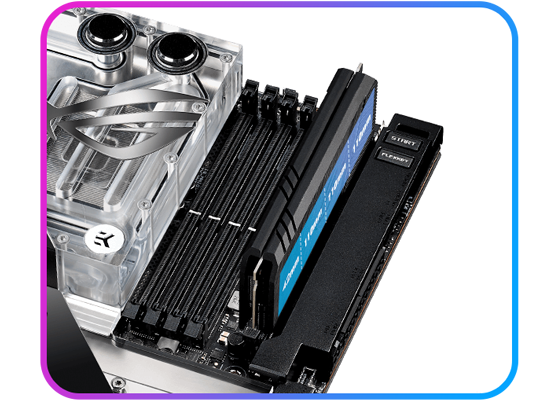

ROG DIMM.2The ROG DIMM.2 module is an innovative expansion card that allows two M.2 drives to be connected via a DDR4 interface. You can then add a metal heatsink, helping to control thermals for maximum performance while elevating aesthetics.

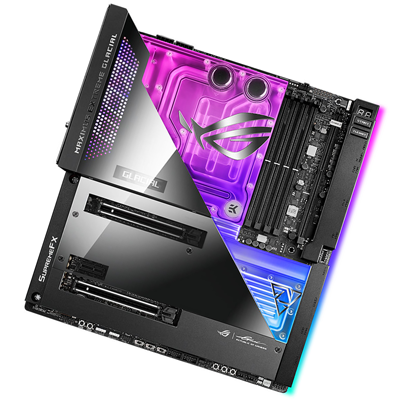

Aesthetics to Take Your Breath Away

Aura SyncUp your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronised across compatible ROG graphics cards, monitors, mice and keyboards to give your setup a unified look.

4K Recording

Anime Matrix LEDThis innovative display features an RGB grid of mini LEDs that can be programmed to show off style with custom lighting designs, unique animations and live audio visualizations. Plus, distinctive soundwave lighting effects can even flash to the sound of a person’s voice.

LIVEDASH OLEDThe ROG Maximus Z690 Extreme Glacial includes LiveDash, a built-in 2-inch OLED panel that shows useful information and features customizable graphics. During the power-on, self-test (POST) phase, the OLED shows key stats in simple language using traditional POST codes. In normal operation, the panel can be programmed to show CPU frequency, device temperatures, fan speeds or water-cooling information. You can also personalise the default OLED GIF with a preferred image or animation.

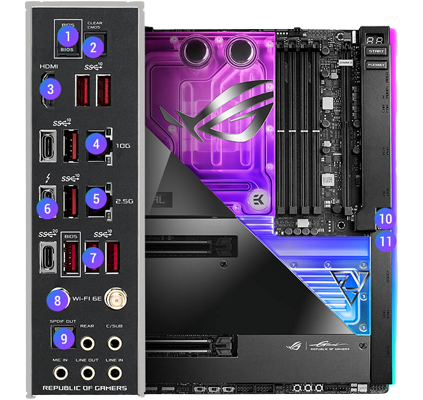

Fully Comprehensive Connectivity

4K Recording

1. Bios Flashback

2. Clear CMOS

3. 1x HDMI

4. 10GB Ethernet

5. 2.5GB Ethernet

6. 1x Thunderbolt 4 USB Type-C

7. 8x USB 3.2 Gen 2 Ports

8. Wifi 6E

9. HD Audio Connectors

10. 1 x USB 3.2 Gen2x2

11. 1x Thunderbolt 4 Type-C Port

Specifications
Core Specifications
Edition ROG MAXIMUS Z690 EXTREMEGLACIAL
Form Factor E-ATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen5x4
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen4x4/SATA3
  • 1 x PCIe 3.0 x1
  • 2 x PCIe 5.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 2-pin W_IN connector
  • 1 x 2-pin W_OUT connector
  • 1 x 24-pin (Power)
  • 1 x 3-pin W_FLOW connector
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin Radiator Fan Headers
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 6-pin ARGB Gen 2 Header
  • 1 x 6-pin PCIe (Power)
  • 2 x 8-pin (Power)
  • 1 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x BIOS Switch button
  • 1 x FlexKey Button
  • 1 x Front Panel Audio Header
  • 1 x LN2 Mode jumper(s)
  • 12 x ProbeIt Measurement Points
  • 1 x ReTry Button
  • 1 x RSVD Header
  • 1 x RSVD Switch
  • 1 x Safe Boot Button
  • 6 x SATA III - 6Gb/s
  • 1 x Slow Mode Switch
  • 1 x System panel connector
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
  • 1 x V-Latch Switch
  • 1 x WB_Sensor Connector
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 10GbE RJ45
  • 5 x Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x HDMI
  • 1 x S/PDIF-Out (Optical)
  • 1 x Thunderbolt 4
  • 7 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 277 x 490 mm
