Gigabyte NVIDIA GeForce GTX 1060 3GB WindForce2 OC Graphics Card
Gigabyte GeForce GTX 1060 WindForce2 OC 3GB GDDR5 VR Ready Graphics Card, 1152 Core, 1556MHz GPU, 1771MHz Boost
3GB GIGABYTE - GeForce GTX 1060 - GPU - WINDFORCE2 OC
GIGABYTE WINDFORCE2 OC GeForce GTX 1060 GPU
This 3GB 1060 from GIGABYTE is from their Windforce2 OC series and as such has been crafted in pursuit of the ultimate gaming experience. Based on Pascal architecture and loaded with game enhancing technologies it’ll bring an incredible experience to your home desktop. It features intelligent designs all round and can produce striking performance output with great power efficiency.
The GeForce GTX 1060 graphics card is loaded with innovative new gaming technologies that make it the perfect choice for the latest high-definition games. Powered by NVIDIA Pascal™—the most advanced GPU architecture ever created—the GeForce GTX 1060 delivers brilliant performance that opens the door to virtual reality and beyond. #GameReady.
Core Clock (OC Mode)
Boost Clock (OC Mode)

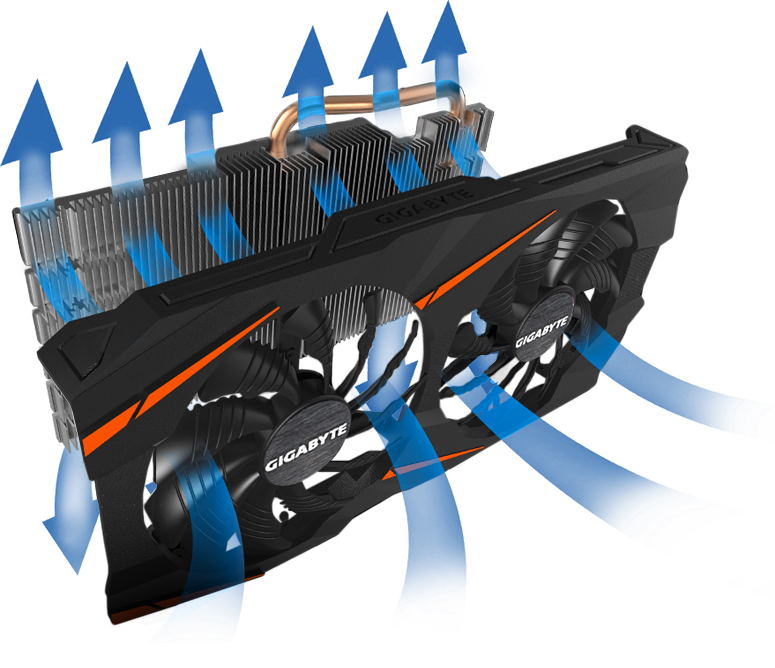

WINDFORCE 2X GPU COOLING SYSTEM
Advanced GTX 1060 Cooling
The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning fan design, pure copper composite heat-pipe, heat pipe direct touch technology, semi-passive 3D active fan, and protection back plate together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
INTELLIGENT GRAPHICS CARD FANS
GIGABYTE 1060 Unique Fan Blades
The GTX 1060 airflow is spilt by it’s triangle fan edge, which is then guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the GIGABYTE Windforce2 1060 airflow by 23% over traditional fans.

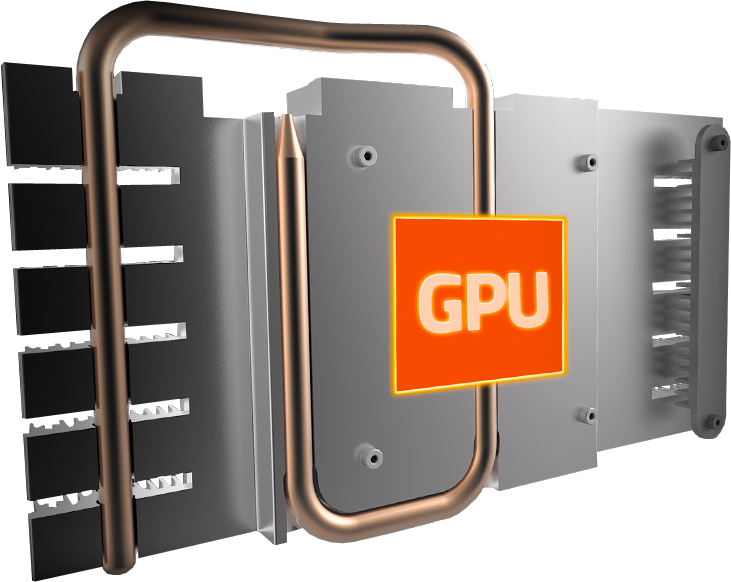

DIRECT TOUCH GPU COOLING
Heat Pipes Help With Cooling the GPU
The Gaming 1060 features Direct Touch technology. This tech as seen above utilizes heat pipes made of pure copper and are shaped to maximize the direct contact area to the 1060’s GPU so they can carry generated heat away from your GPU. This keeps your gaming and media going for longer and displaying as smooth as can be.
GTX 1060 COPPER PIPES
Composite Heat-Pipes Embedded 1060
Through a combination of thermal conductivity and phase transition the Gaming GTX 1060 efficiently manages the transfer of heat between two solid interfaces - which increases 29% of cooling capacity.

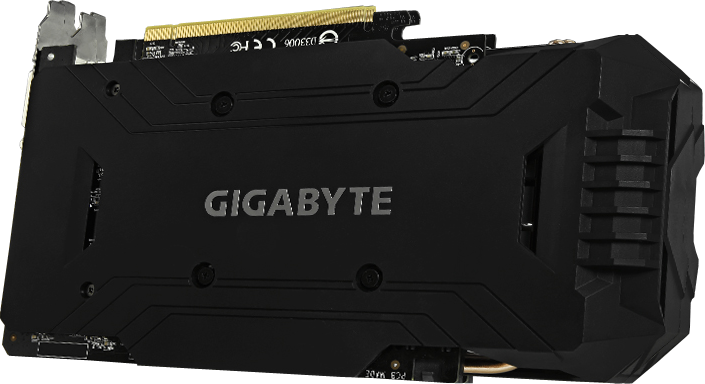

Glorious black back plate provides the solid protection, strengthens the structure and inspires the passion for gaming.
GIGABYTE XTREME ENGINE
Complete Control of 1060 and Features
Features on the GTX 1060 GIGABYTE’s Xtreme Engine allows you to adjust clock speeds, voltage, fan performance, RGB lighting effect and power target. The OSD setting can be monitored and tuned in real-time according to your own preference through this intuitive interface.
GTX 1060 CONNECTIONS
HDMI 2.0b / DisplayPort 1.4 / 2x Dual-Link DVI
GEFORCE GTX VR READY
GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with "GeForce GTX VR Ready" ensure that your VR games will be optimized with a best-in-class GPU.
Immersive VR requires seven times the graphics processing power of traditional 3D apps and games. NVIDIA's unique set of features - such as multi-res shading - mean you get the right level of performance, image quality, and latency to ensure your VR experience is nothing short of amazing.
|Chipset||GeForce GTX 1060|
|Manufacturing process||16 nm|
|NVIDIA Tensor Cores|
|Core Clock||1556 (1582 in OC Mode) MHz|
|Boost Clock||1771 (1797 in OC Mode) MHz|
|Memory Clock||8008 MHz|
|Memory Bus||192 Bit|
|Cooling Solution||Dual Fan (2)|
|Cooler Design||WINDFORCE 2X|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|NVIDIA SLI Support||Not Supported|
|GeForce GTX VR Ready||Yes|
|Microsoft DirectX Support||12 API with Feature Level 12.1|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||1 x 6-pin PCIe|
|Minimum Recommended PSU||400 W|
|Maximum GPU Temperature|
|Dimensions||121 x 39 x 223 mm|
